Laser Machine Best Choice Product provide laser cnc,laser engraving machine,laser machine,laser printer,laser wood machine Fantastic Gift USA CVD ZnSe Focus Lens Dia. 20mm FL 63.5 mm 2.5" for CO2 Laser Engraving Cutting Machine. Price at this time US $25.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in Shenzhen SolarMy Laser Store Trusted Seller Store!
Main feature :
CVD ZnSe Imported From USA, High Quality Material Make Sure the Steady of Laser System.
The CO2 Laser Transmittance of Lens can is more than 99.5% with Excellent Transparency.
Excellent High-Power Density Endurance.
Firm Surface Membrane. High Durabilityand Great Scratch Resistance.
Focusing Spot Size more Smaller.

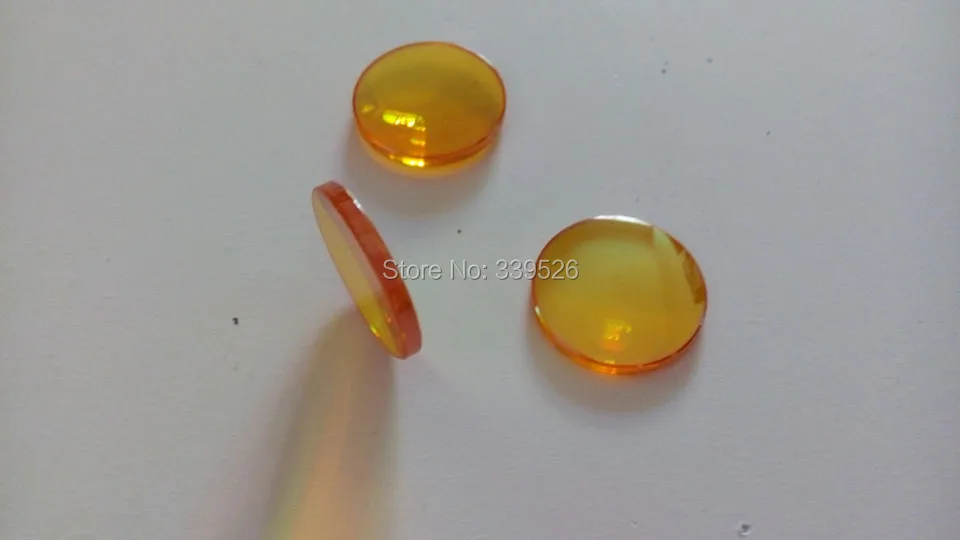

USA CVD ZnSe Focus Lens Dia. 20mm FL 63.5mm 2.5" FL for CO2 Laser Engraving Cutting Machine
Co2 laser focus lens
Focal Length | Edge Thickness | Material | link | ||||
mm | inch | mm | inch | mm | inch |
| |
12 | 0.47 | 50.8 | 2 | 2 | 0.08 | ZnSe(USA) | link |
15 | 0.59 | 50.8 | 2 | 2 | 0.08 | ZnSe(USA) | |
18 | 0.71 | 50.8 | 2 | 2 | 0.08 | ||
63.5 | 2.5 | 2 | 0.08 | ||||
75 | 3 | 2 | 0.08 | ||||
101.6 | 4 | 2 | 0.08 | ||||
19.1 | 0.75 | 38.1 | 1.5 | 2 | 0.08 | ZnSe(USA) | |
50.8 | 2 | 2 | 0.08 | ||||
63.5 | 2.5 | 2 | 0.08 | ||||
75 | 3 | 2 | 0.08 | ||||
101.6 | 4 | 2 | 0.08 | ||||
20 | 0.79 | 38.1 | 1.5 | 2 | 0.08 | ZnSe(USA) | |
50.8 | 2 | 2 | 0.08 | ||||
63.5 | 2.5 | 2 | 0.08 | ||||
75 | 3 | 2 | 0.08 | ||||
101.6 | 4 | 2 | 0.08 | ||||
127 | 5 | 2 | 0.08 | ||||
190.5 | 7.5 | 2 | 0.08 | ||||
25 | 1.00 | 50.8 | 2 | 2 | 0.08 | ZnSe(USA) | |
25 | 1.00 | 63.5 | 2.5 | 2 | 0.08 | ||
20 | 0.79 | none | 3 | 0.12 | silicon | ||
25 | 1.00 | 3 | 0.12 | ||||
30 | 1.18 | 3 | 0.12 | ||||
20 | 0.79 | 3 | 0.12 | molybdenum | |||
25 | 1 | 3 | 0.12 | ||||
30 | 1.18 | 3 | 0.12 | ||||
Znse lens >>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
Product Description: import CVD system using America ZnSe, material absorption rate is low, the production of lenses can withstand the high power density, and surface film layer is firm, not easy to fall off, wiping resistance. The import of ZnSe double plating antireflection Mo, reached 99.5% in CO2 laser industry common working band 10.6 um transmittance can. From two angles of diffraction and aberration optimization design, introduced the actual focusing spot diameter to series of products in the same focal length minimum condition. Can also be based on user requirements of different focal length, focal length, lens aperture, the diameter of the incident light after a separate design and processing
Co2 laser focus lens .
Co2 laser focus lens used in laser cutting , laser welding and laser engraving machines , it used to focus the laser beam into one point , and make the energy of the laser point reach a very large value ,rapidly combust of workpiece to make cutting and engraving available ,
On the market focus lens is distinguished by two structure : meniscus and plano convex ,Becuse meniscus lens has a better at focusing , so with the same price we recommend customer to used crescent-shaped lens .
Lens protection and cleaning: >>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
Clean is very important for optical lens, you better have a good cleaning habit to clean the optical lens carefully, reduce or eliminate the pollution by human, such as finger and saliva. As a common sense, when touching the optical system, cleaning, installing and removing, you should wear finger or medical gloves. You should always follow the cleaning lenses and notice requirements, during the cleaning process, the material can only be the suggested one, such as cleaning paper for optical lens, Cotton ball, Q-tips and ethyl alcohol, Acetone.
Any wrong lens cleaning during disassembly, installation will reduce the lenses life, or even permanent damage. When the lenses were contaminated, use washing ear ball to blow lens until no particles on the surface, do not blow through your mouth, because the air mostly contain oil and water, they will further contaminated lenses. If there is still dirt, we must use the special cotton ball or Q-TIPS dipped in acetone, ethyl ether mixture to wipe gently, then you can remove most of the pollutants.
The pollution of the laser lens will cause serious affection to the Laser output power, and even cause data acquisition system make serious mistakes, if we are able to keep the lens clean, will undoubtedly extend the machines life
