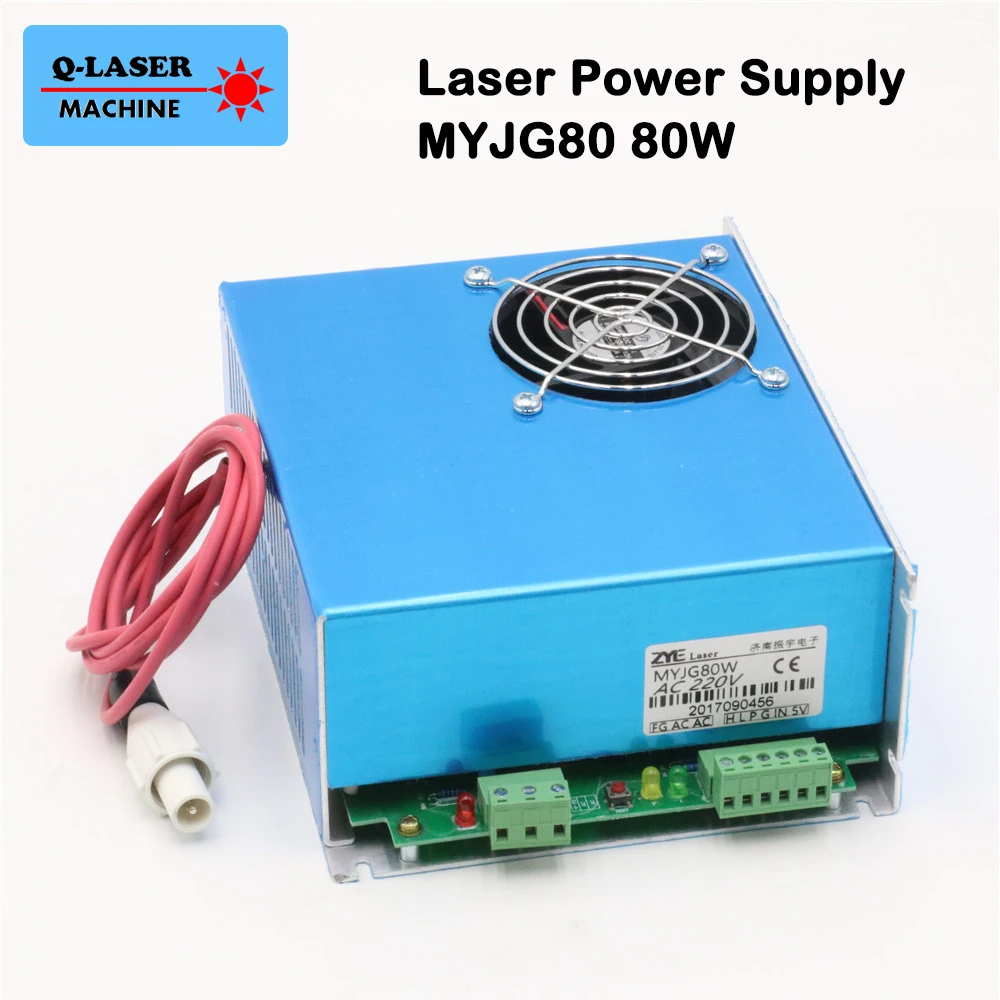

80W CO2 Laser Power Supply MYJG-80 for Reci Laser Tube S2 and CO2 Laser Engraving Cutting Machine
80W Laser Power Supply Main Featues:
1.Adopting zero current half-bridge soft switch circuit, the power supply is featured by high efficiency and rapid response, and easy to match laser tubes of manufacturers.
2.It has simple port control, fits high and low level signals, can control laser start and stop through TTL level, and is equipped with abnormal protection switch to detect if there is water or ventilation outside.
3.Laser power can be regulated by inputting 0-5V simulation signal or inputting PWM signal.
4.The power supply has open circuit protection function: Under the condition of good earthing protection, the power supply can work in open circuit in short time, and then it can avoid the damage caused by laser tube cracking.
5.Ex-factory aging test: Each power supply can undergo a 12h aging test at high temperature of 60ºC on full load, and 500 times of 7sec power-on/off tests.
Main Technical Data：
| AC input voltage | AC220V or AC110V | |
| DC input voltage | DC300V or DC150V | |
| AC input frequency | 47～440Hz | |
| voltage output | 45KV | |
| Maximum current | 30mA(according to laser tubes of different manufacturers) | |
| Efficiency | 91% | |
| Overcurrent protection | 130% of maximum current | |
| Open circuit protection | Yes (short time) | |
| Structure | Fan cooling | |
| High level control voltage range | ≥3V | |
| Low level control voltage range | ≤0.8V | |
| Operating temperature | -30℃～+65℃ | |
| Relative humidity | 20～85%RH（noncondensing） | |
| Withstand voltage | Input—output | AC1500V1 min ≤10mA |
| Input—shell | AC1500V1 min ≤10mA | |
| Output—shell | Connection | |
| Insulation resistance | ≥50MΩ（DC500V） | |
| Earth leakage current | ≤1mA（AC220V）≤0.5 mA（AC110V） | |
| Vibration resistance | Amplitude 0.5mm frequency 10~55Hz three-dimensional direction 2h | |
| Fault-free time MTBF | ≥30,000hours | |
| 60ºC high temperature test time on full load | 12 hours | |
| 7s power on/off test | 500 | |
| Maximum size (L*W*H) | 300mm*200mm*95mm | |
3.Operation Instruction:

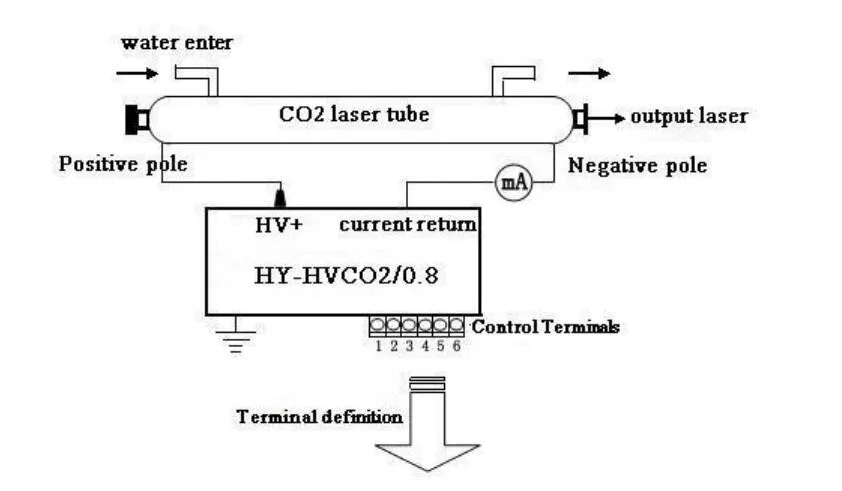

1)Laser Tube connection: (Refer to Power supply and laser Devices connection Diagram)
High voltage terminal (HV+) of HY-T60 power supply should be connected to the positive pole of
CO2 laser device. Current circuit of the power supply shall be connected to negative pole (laser
output terminal) of laser device, through an ampere meter or directly.

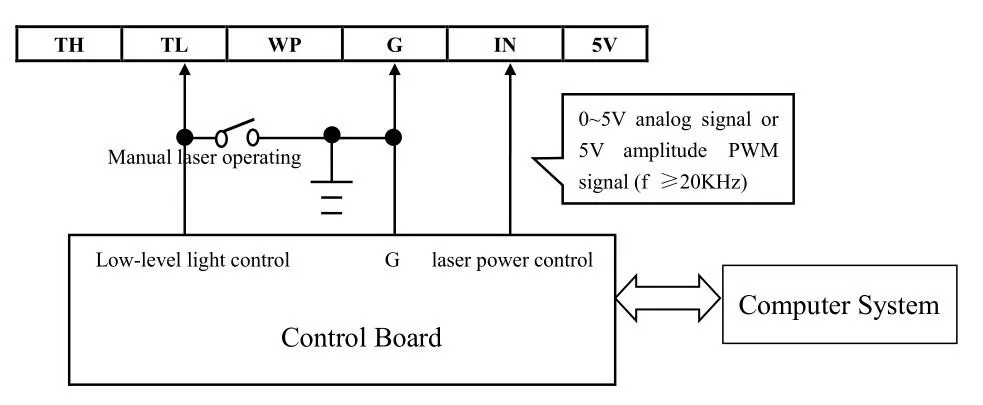

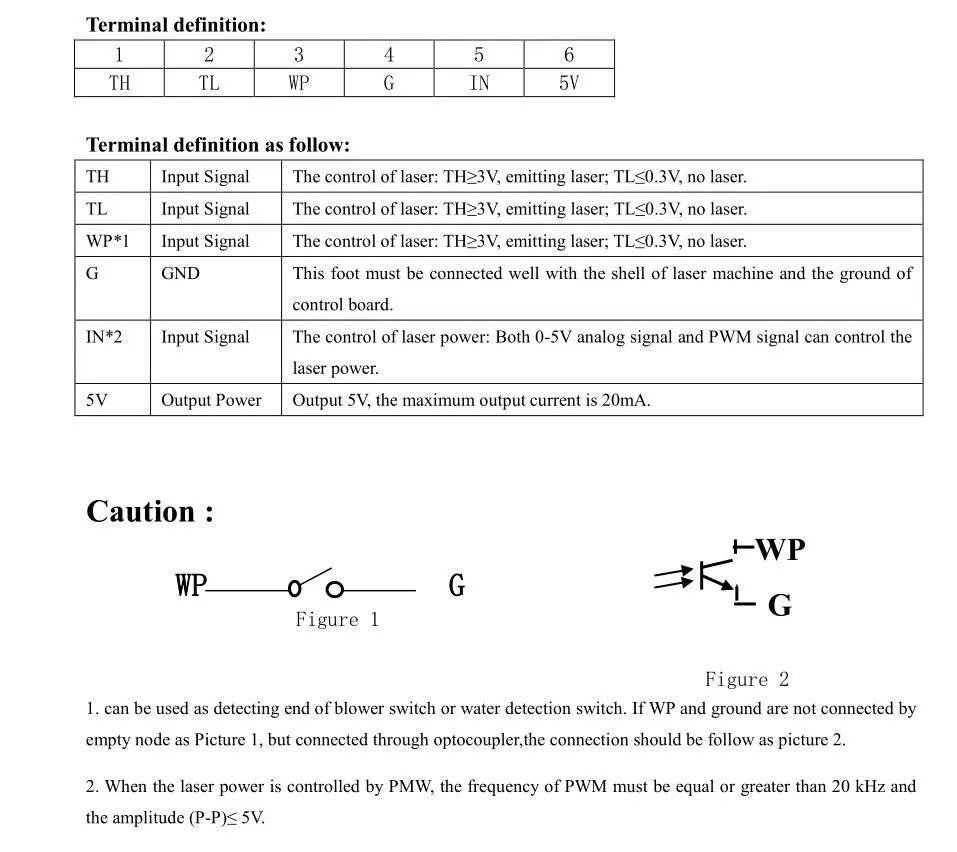

2)Connection of control signal( Refer to Power supply and control boards connection Diagram)
The control signal shall be reliably connected to control terminal of the power supply HY-T60,
after connecting the DAC output signal and TTL signal of external computer with the power
supply, the laser device shall work as expected. If the laser lamp can not work properly, should
check the control signal whether correct or not(include check the voltage specification and
logic),if use PWM control as power control,make sure f≥20KHz,Amplitude (peak value)
≤5V,Check and protection switch WP connection is correct at same time.
3)Voltage of power input:
HY-T60 s power input of the power supply shall be 220VAC/50Hz. If 110VAC required please
specify when placing order.
4)Others:
A group of protection switches are also reserved for detection of water switch, fan switch,
open-enclosure protection and so on.
4.Caution:
1.Water cooling system should be working properly when switching on laser device.
2.Circuit of high voltage output should not be open! (High voltage output terminals (positive and
negative poles) shall be properly connected to positive and negative poles of laser device,
respectively.)
3. Attentions should be given to avoid any electric shock after the power supply being switched
off.(The Insulation safety requirements should be 40KV between the terminal of output and
"G")
4. Well-grounded three-pole receptacle should be used to supply power to HY-HVCO2/1.2 power
supply. The enclosure should be well grounded to avoid electric shock.

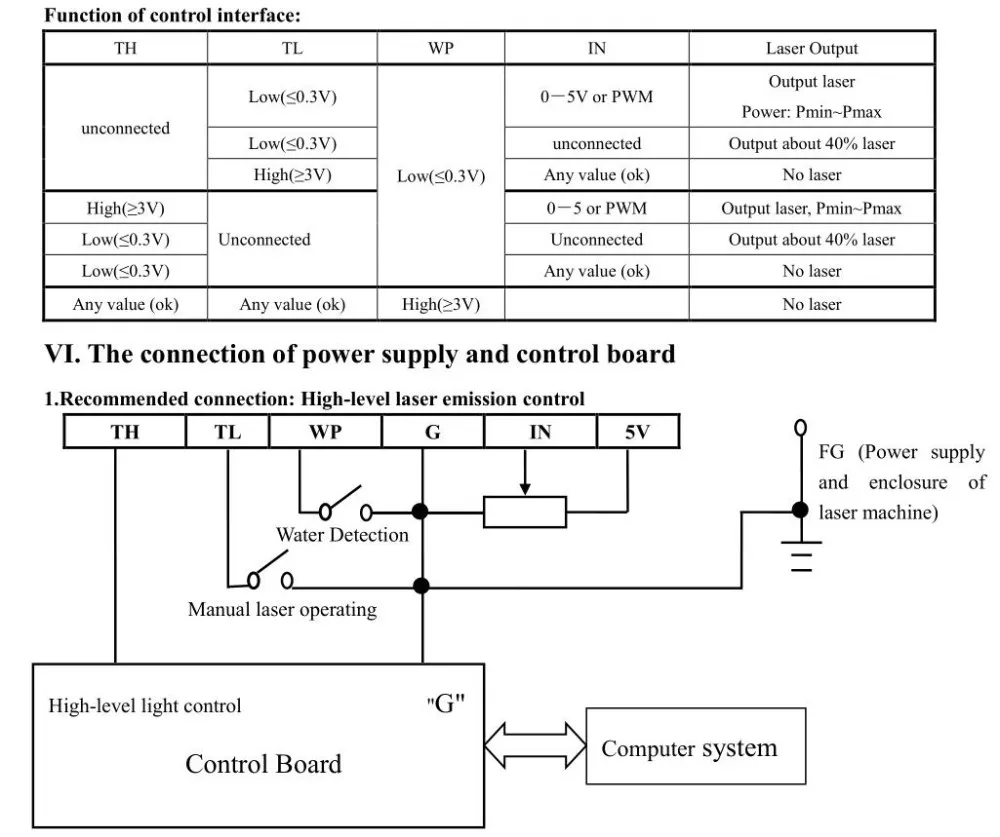

<The connection of power supply and control board>
