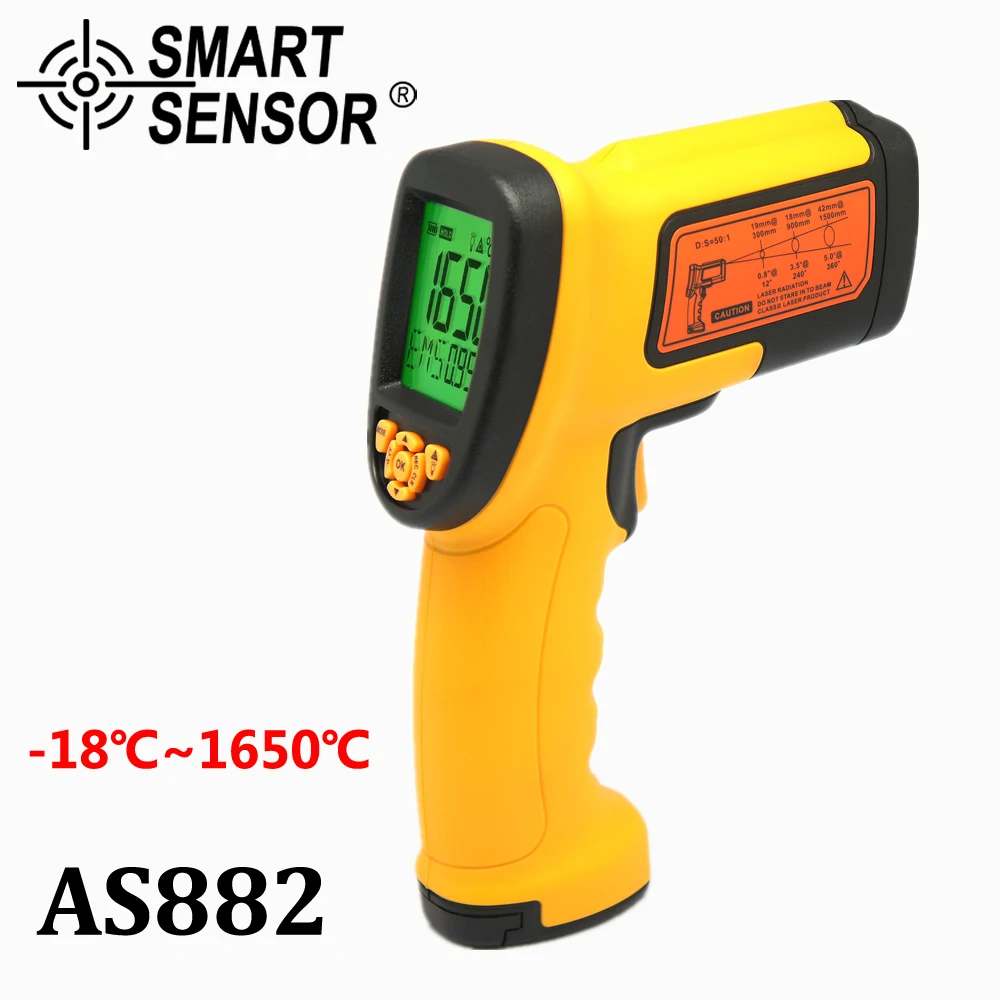

Popular Laser Choice Product provide 3d laser,laser flashlight,laser led,laser meter,laser pointer Big Stock Flash Deal Smart Sensor AS882 Non-contact Laser LcdDisplay 50:1 Digital IR infrared thermometer Temperature Meter Gun Point -18~1650 Degree. Get Discount Now! Only US $86.72/piece at this time. Hurry buy Now before back to normal price! Normal price US $96.35 or you can Check price now. Dont waste your time. Buy Now only in SMART SENSOR Official Store Trusted Seller Store!
All of us provide free shipping worldwide for certain Flash Deal Big Stock Flash Deal Smart Sensor AS882 Non-contact Laser LcdDisplay 50:1 Digital IR infrared thermometer Temperature Meter Gun Point -18~1650 Degree products. Purchase ASAP before the cost goes up! Get special price for items only for the initial 10 potential buyers at this point.
Digital Infrared thermometer Thermometer temperature Mesuring Thermometer AS882 Infrared Thermometer 18℃~1650℃ 0℉~3002℉
1. All products with original packaging box, so that can protect the products well on the shipping way avoid damage.
2. Customs tax: dont worry customs tax, we will declare lower value on bill and help customer avoid or reduce tax.
3. The product does not contain the battery because of the limitation of the airline company.
4. Warranty: All units are with Retail box. and we offer Long warranty period of 2 years,in two years will repair for free.
5. Shipping Way: if you need it faster, you can choose Aliexpress standard shipping,also have China post airmail !
SMART SENSOR AS872D Infrared thermometer Compact, rugged and easy to use. Just aim and push the button, read current surface temperatures in less than a second. Safely measure surface temperatures of hot, hazardous or hard-to-reach objects without contact.
| Temperature range | 18℃~1650℃ 0℉~3002℉ | ||||
| Accuracy(In the condition of 23°C±3°C) | -50℃(-58℉) to -31℃(-23℉) ±5℃ -30℃(-23℉) to -1℃(31℉) ±3℃ 0℃(32℉)to 100℃(212℉) ±2℃ 100℃ hereinbefore ±2℃or±2% whichever is greater：25℃±3℃ | ||||
| Repeatability | 1% of reading or 0.1°C | ||||
| Response time | 500 mSec, 95% response | ||||
| Spectral response | (8-14)um & 500ms | ||||
| Emissivity | 0.10 to 1.00 adjustable (pre-set 0.95) | ||||
| Ambient operating range | 0 to 40°C (32°Fto 104°F) | ||||
| Relative humidity | 10-95% RH noncondensing | ||||
| Storage temperature | -20 to 60℃ (-4~140℉)≤85%RH, not including battery | ||||
| Temperature alarm | V | ||||
| Low battery indication | V | ||||
| Weight | 480g without battery | ||||
| Dimensions | 220 x 134 x 60mm | ||||
| Distance to Spot Size | 50:1 | ||||
| ℃/℉Selection | V | ||||
| Data storage | V | ||||
| Read out the stored data | V | ||||
| Clearing the stored data | V | ||||
| Laser Target Pointer Selection | V | ||||
| Backlight Display Selection | V | ||||
| Auto Power Off | V | ||||
| Power | 9v Alkaline or NiCd battery (not inlcude) | ||||
| Package Contents | 1pc A882 Therometer 1pc users manual English 1p gift box | ||||
| Table of approximate emissivity | |||||
| Marterial | Emissivity | Marterial | Emissivity | ||
| Aluminum | unoxidised | 0.1-0.2 | molybdenum | unoxidised | 0.5-0.9 |
| oxidised | 0.4 | oxidised | 0.25-0.35 | ||
| Alloy A3003 | oxidised | n.r | brass copper | highly polished | 0.8-0.95 |
| roughly polished | 0.2-0.8 | Roughly polished | n.r | ||
| highly polished | 0.1-0.2 | oxidised | 0.6 | ||
| Chromium | 0.4 | metal | 0.3 | ||
| Brass | highly polished | n.r | hastelloy alloy | alloy | 0.5-0.9 |
| roughly polished | n.r | chromium nickle metal alloy | oxidised | 0.4-0.9 | |
| oxidised | 0.2-0.8 | sand blasting | 0.3-0.4 | ||
| electrical tag board | n.r | electric polishing | 0.2-0.5 | ||
| Iron | oxidised oxidised | 0.4-0.8 | cast iron | oxidised | 0.7-0.9 |
| unoxidised | 0.35 | unoxidised | 0.35 | ||
| rusted | n.r | molten | 0.35 | ||
| rusted | 0.35 | forge iron | surface | 0.9 | |
| Aluminum | highly polished | 0.35 | magnesium | 0.3-0.8 | |
| roughly polished | 0.65 | mercury | n.r | ||
| oxidised | n.r | monel metal(ni-cu) | 0.3 | ||
| Nickle | oxidised | 0.8-0.9 | platinum | black | n.r |
| electrolyze | 0.2-0.4 | silver | n.r | ||
| cold roling | 0.8-0.9 | stainless steel | 0.35 | ||
| polished | n.r | tin | unoxidised | 0.25 | |
| polishing plate | 0.35 | asbestos | 0.9 | ||
| molten | 0.35 | ceramic | 0.4 | ||
| oxidised | 0.8-0.9 | concrete | 0.65 | ||
| Titanium | deshpoli | 0.5-0.75 | tungsten | n.r | |
| oxidised | n.r | polished | 0.35-0.4 | ||
| oxidised | 0.6 | carbon | unoxidised | 0.8-0.95 | |
| polished | 0.5 | plumbago | 0.8-0.9 | ||
Diagram and LCD display:
1. LCD display | |
| LCD display: A: Measuring reading B: Temperature unit C: Laser point ON icon D: Backlight ON icon E: Battery power indication icon F: Scanning icon G: Data hold icon H: Mode / emissivity indicator | |
Distance & spot size: As the distance from the object increase, Make sure the target is larger than the units spot size. The detected parts diameter need up to 1.5cm. But the best testing distance is 20cm.when detected parts size is 10*10cm | |
Attention: hole is the main Parts measure the temperature 2. Do not point laser directly at eye or in-directly off reflective surface. |
Quick Start Instruction:
| Step 1 | Press battery door clip, install battery correctly. Pull the trigger, LCD display reading& battery icon. Release the trigger and the reading will hold for 7 seconds. |
| Step 2 | Locating a hot spot: To find a hot spot aim the thermometer outside the area of interest, then scan across with up and down motions until you locate the hot spot.(please turn on the laser for accurate measuring) |
Users Guide:
| How it works | Infrared thermometer measure the surface temperature of an objec,t. The units optical system sense the object s emitted energy with different wavelength. It is, collected and focus onto a detector. The unit s electronics system translated the information into a temperature reading which is displayed on the unit. |
| Cautions | Infrared thermometer should be protected from the following: --EMF (electro-magnetic fields) from welders, induction heaters. --Thermal shock (cause by large or abrupt ambient temperature changes allow 30 minutes for unit to stabilize before use). --Do not leave the unit on or near objects of high temperature. Do not point laser directly at eye or in-directly off reflective surface. |
