Popular Laser Choice Product provide 3d laser,laser flashlight,laser led,laser meter,laser pointer Terrific Clearance Pyrometer non contact digital Infrared Thermometer laser IR Temperature Gun meter 200C~2200C 80:1 Termometro Infravermelho. Get Discount Now! Only US $201.11/piece at this time. Hurry buy Now before back to normal price! Normal price US $236.60 or you can Check price now. Dont waste your time. Buy Now only in SMART SENSOR Official Store Trusted Seller Store!

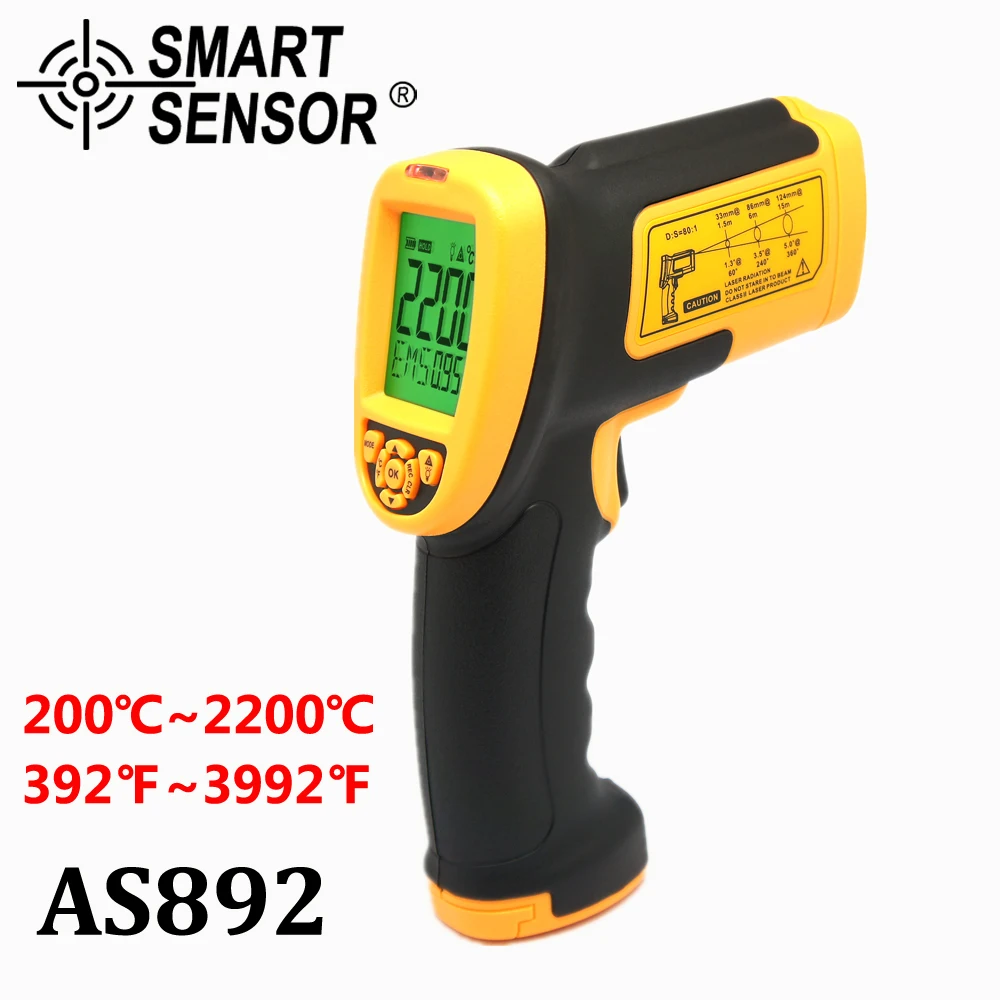

SMART SENSOR Brand New digital IR non-contact laser Infrared Thermometer 200C~2200C(392F~3992F) AS892 with Carry Box
1. All products with original packaging box, so that can protect the products well on the shipping way avoid damage.
2. Customs tax: dont worry customs tax, we will declare lower value on bill and help customer avoid or reduce tax.
3. The product does not contain the battery because of the limitation of the airline company.
4. Warranty: All units are with Retail box. and we offer Long warranty period of 2 years,in two years will repair for free.
5. Shipping Way: if you need it faster, you can choose Aliexpress standard shipping,also have China post airmail !
SMART SENSOR AS892 Infrared thermometer The most basic design consists of a lens to focus the infrared (IR) energy on to a detector, which converts the energy to an electrical signal that can be displayed in units of temperature after being compensated for ambient temperature variation. Infrared Thermometers allow users to measure temperature in applications where conventional sensors cannot be employed. Specifically, in cases dealing with moving objects ( i.e., rollers, moving machinery, or a conveyor belt), or where non-contact measurements are required because of contamination or hazardous reasons (such as high voltage), where distances are too great, or where the temperatures to be measured are too high for thermocouples or other contact sensors.
| Temperature range | 200℃~2200℃ 392°F ~3992 °F | ||
| Accuracy(In the condition of 23°C±3°C) | 200℃~800℃±2% 800℃ over ±3% | ||
| Repeatability | 1% of reading or 0.1°C | ||
| Response time | 500 mSec, 95% response | ||
| Spectral response | (0.9~1.7)um & 500ms | ||
| Emissivity | 0.10 to 1.00 adjustable (pre-set 0.95) | ||
| Ambient operating range | 0 to 40°C (32°Fto 104°F) | ||
| Relative humidity | 10-80% RH noncondensing | ||
| Storage temperature | -20 to 60℃ ,≤85%RH, without battery | ||
| Resolution | 0.1℃ or 0.1° F ( <1000℃) 1℃ or 1°F (≥1000℃) | ||
| Weight | 1100g | ||
| Dimensions | 210*155*60mm | ||
| Distance to Spot Size | 80:1 | ||
| ℃/℉ Selection | V | ||
| Data Hold Function | V | ||
| Laser Target Pointer Selection | V | ||
| Backlight Display Selection | V | ||
| Auto Power Off | V | ||
| Power | 6V Alkaline or NiCd battery or 6V 500mA adpter (not inlcude) | ||
| Package Contents | 1pc A892 Therometer 1pc users manual English 1p gift box | ||
| Emissivity : Most organic materials and pa-inted or oxidized surfaces have an emissiv-ity of 0.95 (preset in the unit). Inaccurate readings will result from measuring shiny or polished metal surfaces. To compensate, cover the surface to be measured with mas-king tape or flat black paint. Measure the tape or painted surface when the tape or painted reach the same temperature as the material underneath. | |||
| Marterial | Emissivity | Marterial | Emissivity |
| Aluminum | 0.30 | Iron | 0.70 |
| Asbestos | 0.95 | Lead | 0.50 |
| Asphalt | 0.95 | Limestone | 0.98 |
| Basalt | 0.70 | Oil | 0.94 |
| Brass | 0.50 | Paint | 0.93 |
| Brick | 0.90 | Paper | 0.95 |
| Carbon | 0.85 | Plastic | 0.95 |
| Ceramic | 0.95 | Rubber | 0.95 |
| Concrete | 0.95 | Sand | 0.90 |
| Copper | 0.95 | Skin | 0.98 |
| Dirt | 0.94 | Snow | 0.90 |
| Frozen food | 0.90 | Steel | 0.80 |
| Hot food | 0.93 | Textiles | 0.94 |
| Glass(plate) | 0.85 | Water | 0.93 |
| Ice | 0.98 | Wood | 0.94 |
Diagram and LCD display:
| LCD display: A measuring reading B measuring unit C laser on icon D back light on icon F scanning icon E battery power icon G data hold icon H mode/emissivity indicator I data storge / read icon J low temperature alarm icon K high temperature alarm icon | |
(1) Trigger: When turn on LCD display VERXX software version for 1 sec. And turn to display reading with SCAN icon. Release the trigger, display reading with HOLD icon. Built in auto power off in 30sec. remain back light for 10 sec. LCD indicate on/off status. AVG-HAL-LAL-STO segment (only main display means normal measuring mode) press 4 key to enter. a. MAX: measuring maximum temperature current reading. high temperature alarm trigger an dconfirmed by pressing 4 key. When reading over trigger, LCD display HI icon with BiBi audio sounds. temperature alarm trigger and confirmed by pressing 4 key. When reading g. STO: data storage--when selected STO, lock & DATA & 1---indicator will shown when press 4 key. After temperature read out press 6 key to store, available. To recall the stored data in normal measuring mode by pressing 6 key, remove all data by pressing 6 keys for 3 seconds. H. EMS: Emissivity setup-- press 5 key for emissivity settings, press 4 key to save setup and back to normal status. (7) LCD(see 5.1) down and forward the battery door. Then install 9v battery correctly. switch for convertsion | |
| -- When take measurement, point thermometer toward the object to be measured and hold the yellow trigger. The object under test should be larger than the spot size calculated by the field of view diagram. -- Distance & spot size: As the distance from the object increase, the spot size of measuring area becomes larger. | |
Locating a hot/cold spot: To find a hot/cold spot, aim the thermometer outside the area of interest, then scan across with up and down motion until you locate the hot/cold spot. |
Quick Start Instruction:
| Step 1 | Press battery door clip, install battery correctly. Pull the trigger, LCD display reading& battery icon. Release the trigger and the reading will hold for 7 seconds. |
| Step 2 | Locating a hot spot: To find a hot spot aim the thermometer outside the area of interest, then scan across with up and down motions until you locate the hot spot.(please turn on the laser for accurate measuring) |
Users Guide:
| How it works | Infrared thermometer measure the surface temperature of an objec,t. The units optical system sense the object s emitted energy with different wavelength. It is, collected and focus onto a detector. The unit s electronics system translated the information into a temperature reading which is displayed on the unit. |
| Cautions | Infrared thermometer should be protected from the following: --EMF (electro-magnetic fields) from welders, induction heaters. --Thermal shock (cause by large or abrupt ambient temperature changes allow 30 minutes for unit to stabilize before use). --Do not leave the unit on or near objects of high temperature. Do not point laser directly at eye or in-directly off reflective surface. |
