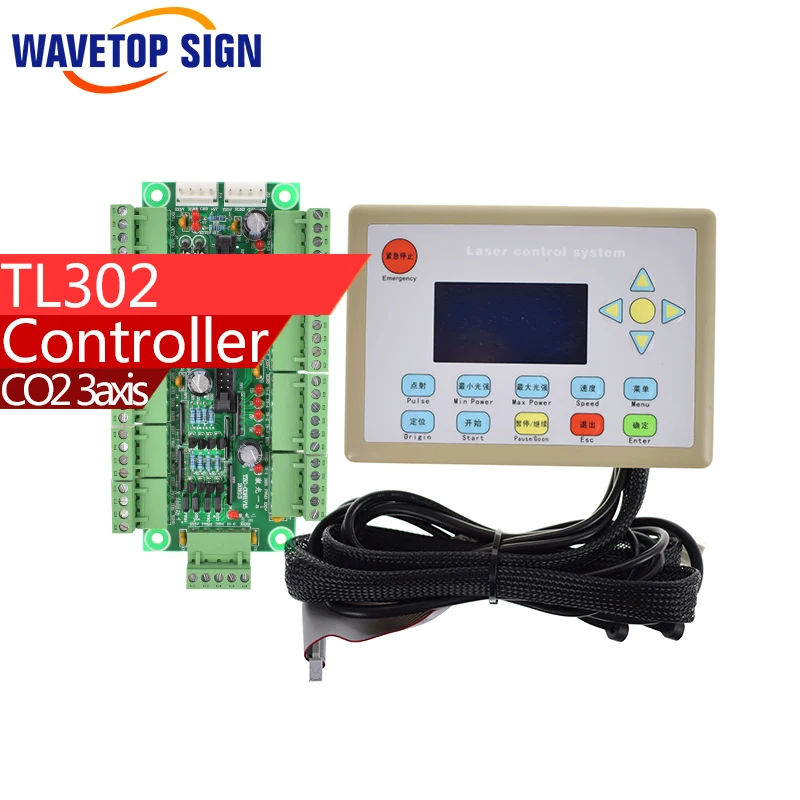

Great Limited TL 302 co2 Laser machine controller stop making the latest version is TL302

Great Limited TL 302 co2 Laser machine controller stop making the latest version is TL302 lamachine Rating: 3.8 out of 5

Laser Machine Best Choice Product provide laser cnc,laser engraving machine,laser machine,laser printer,laser wood machine Great Limited TL 302 co2 Laser machine controller stop making the latest version is TL302. Get Discount Now! Only US $329.00/piece at this time. Hurry buy Now before back to normal price! Normal price US $350.00 or you can Check price now. Dont waste your time. Buy Now only in wavetopsign Store Trusted Seller Store!

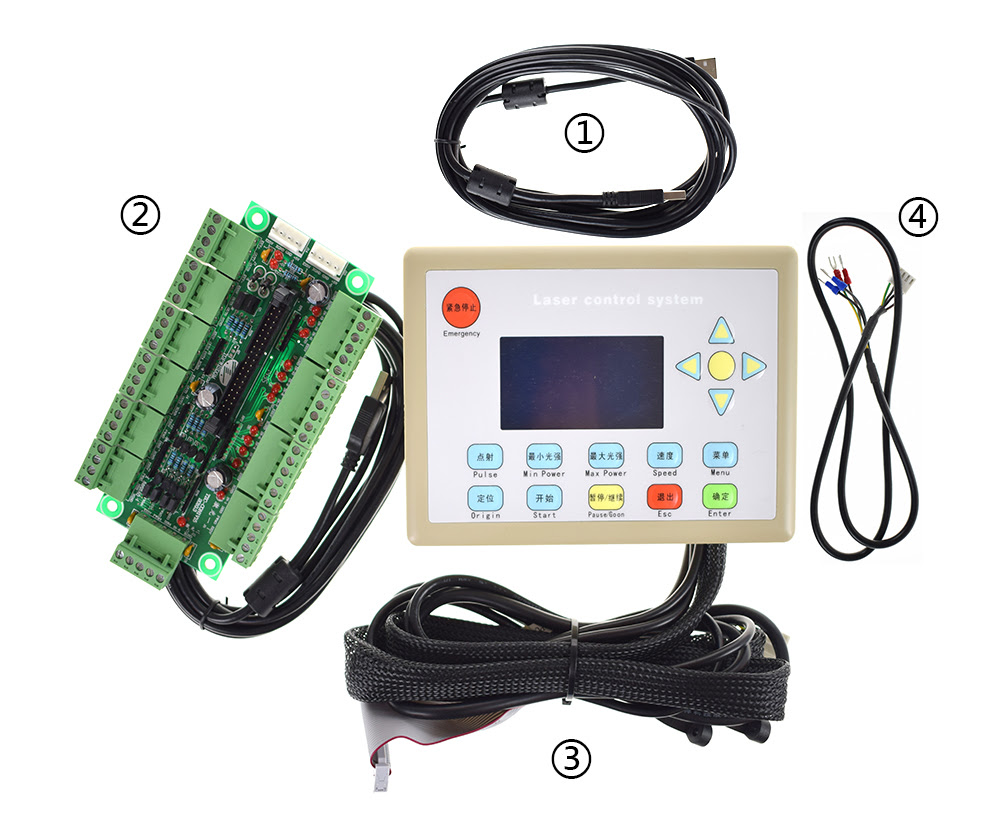

TL-302 laser control systemTL-302 is one high-performance laser engraving/cutting machine control system for laser engraving/cutting machine manufacturers. It is able to set parameters without PC. Support U disk file read and write, and Firmware upgrade with U disk. Dual laser power value is able to set separately. Support restoring from power off and other functions. It can achieve 360-degree slope engraving effect, it is for clothing, leather cutting, glass cutting, rubber printing plate engraving industry is the ideal control system. Equipped with laser engraving and cutting software, including independent software AutoLaser, CorelDraw12 plug-in and AutoCAD plug-in. It is optional according to the actual needs of customers.

Technical parameters: ● Core power supply DC 5V, 2A; peripheral power supply DC 5V, 3A; ● Support the stepper motor and servo motor control; ● Supports 4-axis motion control (XYZU), axis range 0 ~ 4294m, accuracy ± 0.001mm, pulse frequency up to 200KHz; ● Laser control the output voltage 0 ~ 5V Adjustable, PWM output 0 ~ 100K adjustable from 0 to 100% duty cycle is adjustable;● 6 opto isolated outputs, TTL level, (drive current of 20mA or more, which OUT7, OUT8 external power supply); ●13 opo-isolated inputs, TTL level:Features: ● Control core uses 32 high-speed floating-point embedded DSP, clocked at up to 150MHZ; may be completely divorced from the PC to set device parameters, all completely isolated optocoupler external electromagnetic interference, the system is reliable; ● Support USB2.0 interface, U disk U disk read and write files and system upgrades; ● 64MB onboard memory, you can run independently from the PC, user-friendly high-volume engraving / cutting production; ● Enables high-speed four-axis control (X, Y, Z, U axis, wherein X, Y-axis motion control for the laser head, Z for feeding, U-axis for the platform lift); ● Support feeding, lifting, rotating sculpture, metal cutting, walking frame, automatic inflatable, autofocus, foot switch, security, power outages continued carving, system lock machines, equipment management, and other functions; ● Using S-type acceleration and deceleration, and adjustable speed planning to meet a smooth start and stop cutting and high-speed processing of the dual needs; ● Can be customized in multiple languages ​​and requirements;● Free delivery Windows-based control software AutoLaser, CorelDraw and AutoCAD plug-in(support AI, PLT, BMP, DST, DSB, DXF etc );
