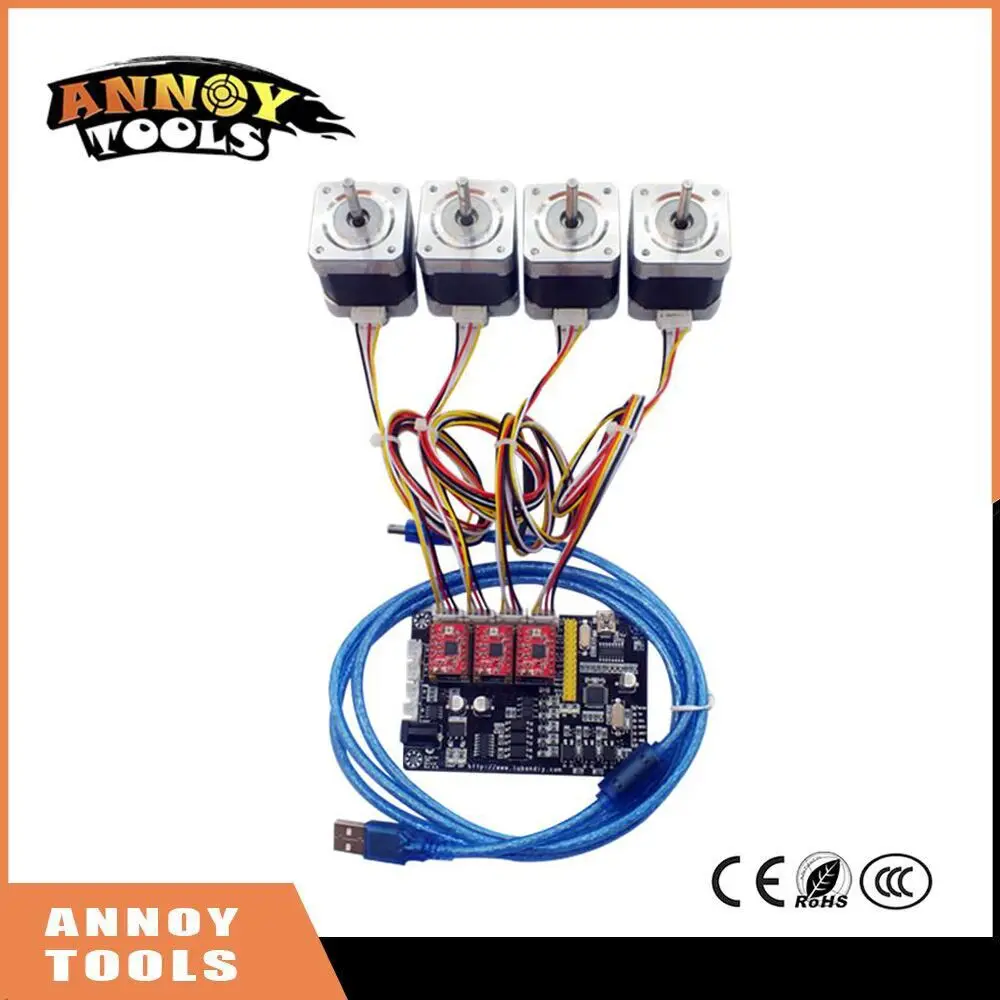

Laser Machine Best Choice Product provide laser cnc,laser engraving machine,laser machine,laser printer,laser wood machine Fast Promotion New Three Axis Drive Controller Board+4pc Nema17 Stepper Motor 4-lead 42motor for DIY Laser CNC Engraving Machine Control System. Price at this time US $57.30/piece. Check price now to get discount! Dont waste your time. Buy Now only in ANNOY TOOLS Store Trusted Seller Store!
1. Nema 17 Stepper Motor
General Specification:
Step angle accuracy: + - 5%(full step,not load)
Resistance accuracy: + - 10%
Inductance accuracy: + - 20%
Temperature rise: 80deg Max(rated current,2 phase on)
Ambient temperature ----------20deg ~+50deg
Insulation resistance:100M Min,500VDC
Insultion Strength--------500VAC for one minute
Stepper motor datasheet:
| Model | Step Angle (deg) | Motor Length (mm) | Rated Current (A) | Phase Resistance (Ohm) | Phase Inductance (mH) | Holding Torque (N.cm) | Detent Torque (N.cm) | Rotor Inertia (g.cm2) | Lead Wire (No) | Motor Weight (g) |
| 17HS4401 | 1.8 | 40 | 1.7 | 1.5 | 2.8 | 40 | 2.2 | 54 | 4 | 280 |
| Note:We can manufacture products according to customers requirements. Red: A+ Green: A- Yellow: B+ Black: B-2. Three Axis Controller Board Specification: Model: LBA-B-V5 Dimension: 96.5*65mm Pitch size: 88.5*57mm Laser Power: 100mW to 10W Axis: XYZ Three Axis Power Supply: 12V Stepper motor: 2 phase 4 wires, 2 phase 6 wires Stepper Motor Power: Max 2A for one stepper motor Function: Supporting steering engine, Adjusting laser power, Weak light function, Optical coupling isolation, Anti-jamming, Support for higher power laser, Miniature master software support, The latest CNC firmware, Gold plated pins, Sole PMW connector, external high power driver, all actions have indicator light. Packing List: 17HS4401 stepper motor*4pcs Three Axis Stepper Motor Drive Controller Module*1pc USB cable*1pc Tool*1set | ||||||||||
