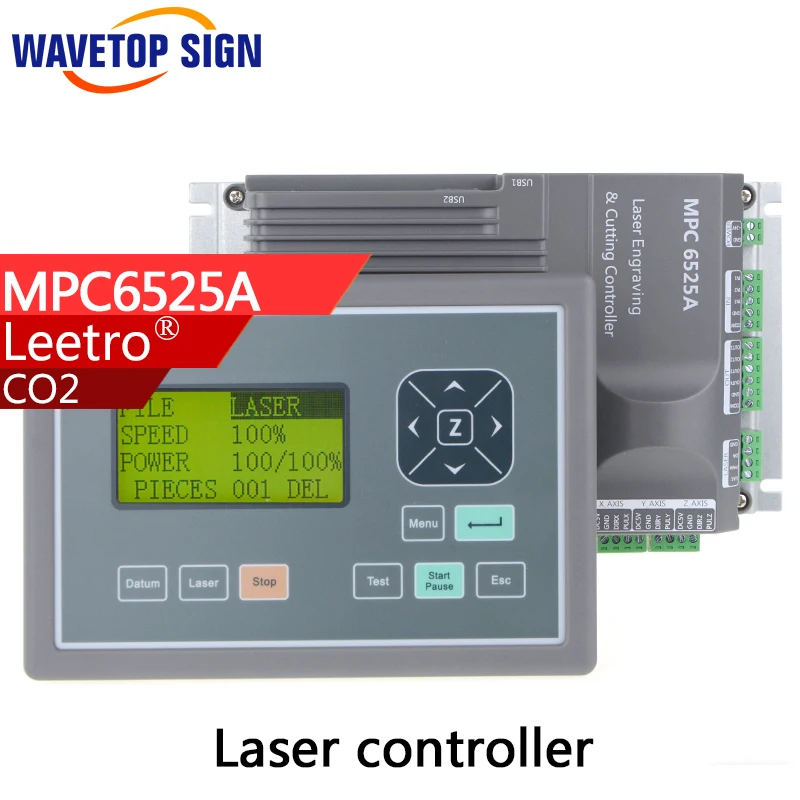

Laser Machine Best Choice Product provide laser cnc,laser engraving machine,laser machine,laser printer,laser wood machine Hot Gift Leetro MPC6525A mpc6525 Co2 Laser Controller System for Laser Engraving and Cutting Machine. Get Discount Now! Only US $327.60/piece at this time. Hurry buy Now before back to normal price! Normal price US $360.00 or you can Check price now. Dont waste your time. Buy Now only in wavetopsign Store Trusted Seller Store!
● Both servo and stepper motor supported
● Break-point resume
● 2-3 axes linear interpolation and 2-axis circular interpolation
● High speed multi-axis continuous contouring
● Velocity look-ahead and trajectory blending
● Position comparison and trigger output
● Laser control is synchronized with laser head motion
● Flying-optics compensation
● Individual laser power control for dual-head system
● Master/slave USB interface
● Embedded 128MB memory
● Advanced PID algorithm to minimize cutting inaccuracy
● All digital inputs and outputs are 2500Vrms isolated
Motion Control
High precision interpolation, circular interpolation resolution under 0.5 pulse
Engraving control resolution is in ONE pulse on the frequency of less than 2MHz
For CO2 tube
Laser ON, TTL compatible
Laser power control: PWM, frequency or analog voltage (user select)
For RF tube
Laser ON, TTL compatible
Q pulse signal, programmable duty and frequency
Software Environment
Windows 2000/XP/VISTA/7/8/8.1/10 (32 and 64-bit)
Bundled with application software, LaserCut5.3 or 6.0
Working Environment
Temperature: 0-60℃
Humidity: 5-90%, non condensing
Power
24VDC, 2A
The Connection Pin Definition
| Order Code | Model | Description | Qty(pc) | Approxi. Size (mm) | Net Weight(Kg) | Type |
| 1011.00.126 | MPC6525A | Motion Control Board | 1 | 200*125*40 | 0.49 | Standard |
| 1012.00.713 | PAD03-E | Operation Panel,English | 1 | 150*100*27 | 0.21 | Standard |
| 1012.00.900 | C4-PAD03-1.5M | Cable connects MPC6565 and PAD03-E | 1 | Length 1500 | 0.13 | Standard |
| 1012.01.000 | USB-AB-3M | USB Cable | 1 | Length 3000 | 0.13 | Standard |
| 1012.01.400 | Dongle-WHITE | Software Key for LaserCut Software | 1 | 55*18*8 | 0.01 | Standard |
| 1012.00.804 | PAD04A-E | upgraded from PAD03-E, English | 1 | 170*120*35 | 0.33 | Optional |
| 1012.01.005 | COM-W4-2.5M | Cable connects MPC6565 and PAD04A-E | 1 | Length 2500 | 0.29 | Optional |
