Laser Machine Best Choice Product provide laser cnc,laser engraving machine,laser machine,laser printer,laser wood machine Big Sale DIY Laser CNC Engraving Machine Control System Set Dual Axis XY Axis Drive Control Board 4-lead Nema17 Stepper Motor 42 motor. Price at this time US $45.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in ANNOY TOOLS Store Trusted Seller Store!

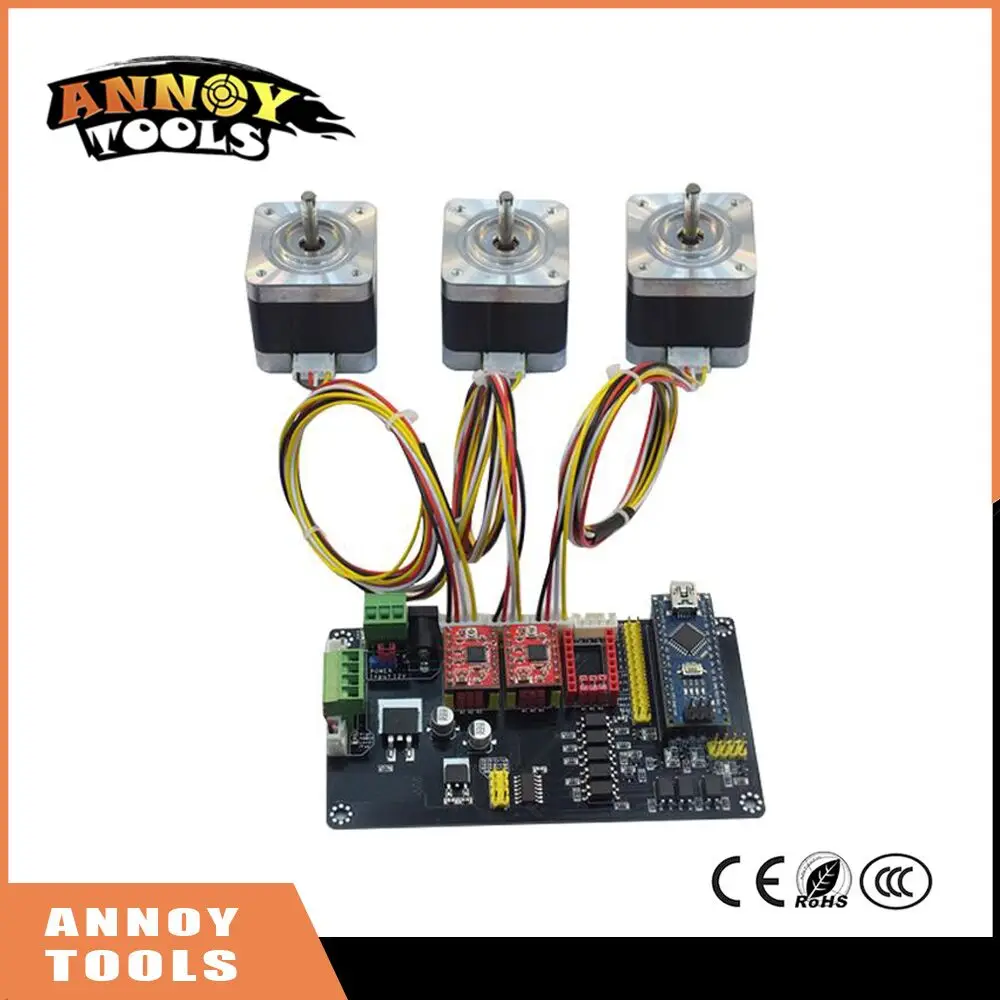

DIY Laser CNC Engraving Machine Control System Set Dual Axis XY Axis Drive Control Board 4-lead Nema17 Stepper Motor 42 motor
General Specification:
Step angle accuracy: + - 5%(full step,not load)
Resistance accuracy: + - 10%
Inductance accuracy: + - 20%
Temperature rise: 80deg Max(rated current,2 phase on)
Ambient temperature ----------20deg ~+50deg
Insulation resistance:100M Min,500VDC
Insultion Strength--------500VAC for one minute
Datasheet(17HS8401,1.8A,78 oz-in or 4.8kg.cm holding torque,5mm diameter shaft):
| Model | Step Angle (deg) | Motor Length (mm) | Rated Current (A) | Phase Resistance (Ohm) | Phase Inductance (mH) | Holding Torque (N.cm) | Detent Torque (N.cm) | Rotor Inertia (g.cm2) | Lead Wire (No) | Motor Weight (g) |
| 17HS4401 | 1.8 | 40 | 1.7 | 1.5 | 2.8 | 40 | 2.2 | 54 | 4 | 280 |
| Note:We can manufacture products according to customers requirements. Red: A+ Green: A- Yellow: B+ Black: B- Material: PCB Model: LBA-B-V4 Driver: A4988 Driver (Two Piece same as picture) Board: Nano V3.0 ATmega328 Board Dimension: 120*65mm Pitch size: 112*57mm Laser Power: 100mW to 5W Axis: XYZ Three Axis Power Supply: 12V Stepper motor: 2 phase 4 wires, 2 phase 6 wires Stepper Motor Power: Max 2A for one stepper motor Packing List: 3*17HS4401 Three Axis Stepper Motor Drive Controller Board*1pc A4988 Driver*2pcs Nano V3.0 ATmega328 Board*1pc Protective cover*1pc USB cable*1pc Tool*1set | ||||||||||
