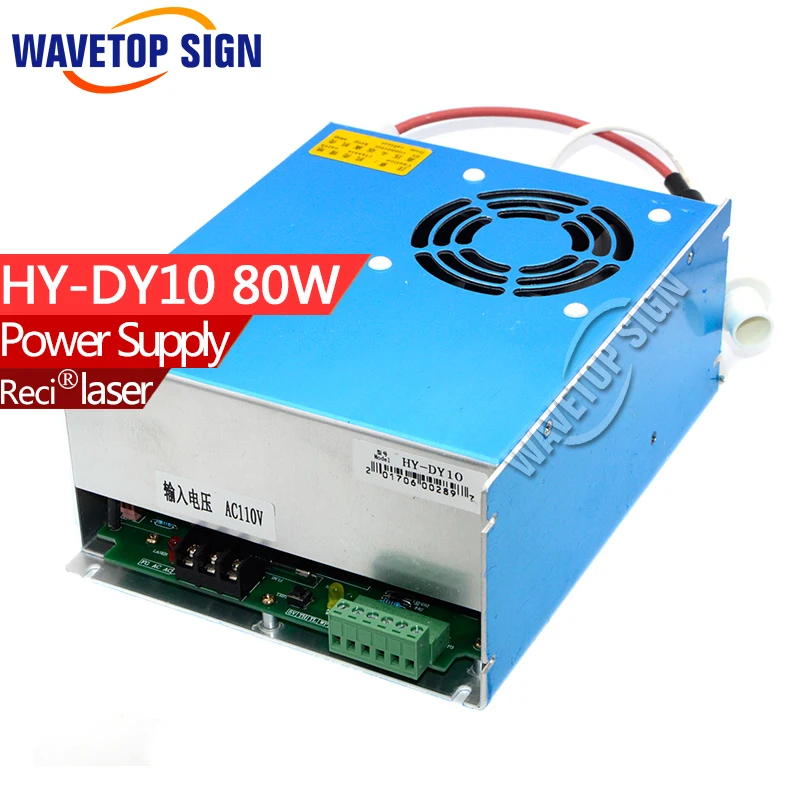

HY-DY10 Laser Power Supply is used for 40W,50W,60W,80W Cutting and Engraving Acrylic, Fabric, Double Color Sheet and Rubber,ect.
Parameter
Input Voltage: AC220V(Need AC110V ,please specify ,when order)
AC frequency: 47 - 440HZ
Max Input power; 450W
Max Input current: 5A
Max output voltage: DC35KV
Max output current: DC24mA
Efficiency: >/=90%(Full load)
MTBF: >/=10000 Hours
Response speed: ≤ 1ms (Time from the TTL Signal is given to the output current up to 90% pre-setting current)
Withstand Voltage: Input-Output, Input-Enclosure: AC1500V 10mA 60S, Output cathode is connected with enclosure.
Environment: Operating temperature: (-10-40)degree Celsius,Relative humidity: ≤90%
Cooling: Forced air cooling (fan cooling)
Operating instructions
1.Laser Tube connection: (Refer to Power supply and laser Devices connection Diagram) High voltage terminal of HY-DY10 power supply should be connected to the positive pole of CO2 laser device. Current circuit of the power supply shall be connected to negative pole (laser output terminal) of laser device, through an ampere meter or directly.
2.Connection of control signal( Refer to Power supply and control boards connection Diagram) The control signal shall be reliably connected to control terminal of the power supply HY-DY10,after connecting the DAC output signal and TTL signal of external computer with the power supply, the laser device shall work as expected. If the laser lamp can not work properly, should check the control signal whether correct or not(include check the voltage specification and logic),if use PWM control as power control,make sure f≥20KHz,Amplitude (peak value) ≤5V,Check and protection switch WP connection is correct at same time.
3.Voltage of power input: HY-DY10s power input of the power supply shall be 220VAC/50Hz. If 110VAC required please specify when placing order.
4. Others: A group of protection switches are also reserved for detection of water switch, fan switch,open-enclosure protection and so on.
Product profile
Power Supply Instruction
I. Instruction for sub-connection wire of the control end
| 1 2 3 4 5 6 5V TH TL WP G IN |
1) Footer 1 is 5V power supply. (Not needed when connecting the cardinal plate. It is used when regulating
the power with potentiometer, and the 5V current should be less than 10 mA.
2) TH. TL refers to high and low power level respectively,and WP refers to water
protection.
3) Footer 5 G refers to ground, and 6 refers to input end.
4) When connecting the control plate, connect the light signal with footer 2 in
the case of high power level light-emitting, (footer 3 for low power level light
-emitting), connect the ground-wire with footer 5, connect footer 6 with power control analog signal, and make
short circuit for footer 4 and 5.
5) PWM can also be used in footer 6, but the pulse peak is required to reach 5V,
and the frequency should be above 20K.
6) For testing: 3, 4 and 5 are in short circuit (or 4, 5 are in short circuit
and 3, 5are connected to switch),the potentiometer center is connected with 6 IN,
and the two other ends are connected to 5V and ground (1 and 5) respectively.
7) The high power level controls the light, 1 and 2 are connected, and 4 and 5
are in water protection.
8) It is not proposed to control laser power with high-frequency modulation, because it will have impact on the service life of
the laser.
9) The model is applicable to W2 laser, it is necessary to regulate and
use the current according to the laser instructions.
10) The ammeter is concatenated to the cathode line.
II.Instruction for power wire
| Footer 1 Ground | footer 2 footer3 AC 220V 50HZ 10A |
Note: The table 10Arefers to the connection wire requirement, but not the
actualpower dissipation.
III. Instruction for laser connection wire
1) The positive red-line with high voltage is connected to the laser tail
2) The negative white-line is connected to laser output window
IV. Current limitation
To limit the working current, the potentiometer (lies in the underside of
the power supply should be rotated in counterclockwise (please refer to
the schematic diagram in our website: www.recilaser.com). Limit the maximum
output current as it is regulated in the operating instruction. The working current should be limited before
delivery.
V. Linear scale between input signal and the output current
Turn around the potentiometer, the linear scale will be changed: for example,
when the input signal is 0-5V, the output current is 0-32mA.Or when the
input signalis 0-2V, the output signal is 0-32mA.
Note: when the potentiometer is turned down too much, the real output
current willbe brought down by the same input signal.
VI. Using current
The use standard for our power supply is under 220V, 50Hz. The fluctuation
of the input voltage and frequency will affect the working current provided
by the power supply, the effection is linear relative. The unstable of the input
voltage will affect the output power of the laser tube. The fluctuation of
the input voltage has no effection on the lifespan of the laser if only the
current provided by the power supply is not over the
