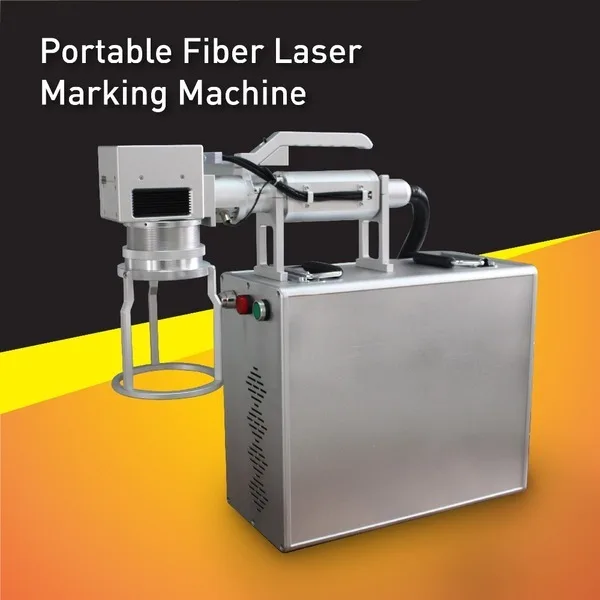

Laser Machine Best Choice Product provide laser cnc,laser engraving machine,laser machine,laser printer,laser wood machine Cool Gift HandHeld 20W Portable Fiber Laser Marking Machine,Fiber Laser Engraver,Long Working Life,Easy to move and operate. Price at this time US $4959.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in HeatSign Store Trusted Seller Store!
Fiber laser is latest laser technology which can create the permanent marks on metal material surface.This laser working is like the laser etching , the software is easy to use and can work with any content such as graphic,charters,letters,barcode,qrcode etc.
Our fiber laser engraver HS-FL20 is compact and hand held design, easy to move and operate.Perfect output beam quality, high reliability, no consumables, No need maintenance. We adopt high quality fiber laser source, Long life Working(70000 hours~100000 hours). The most reliable structure with air cooling system,no high-voltage without large water-cooled system. Close to the ideal beam, USB interface, output control, optical scanning system, laser repetition rate high, high-speed without distortion.
1). High electro-optic conversion efficiency,high speed marking.
2). High quality and stable output laser beam,Low power consumption,high precision.
3). High quality beam,Non contact marking,no need consumable material such as ink or pin.
4). Finer marking line. Long laser life : 70000-100000 hours. 5). The machine can mark any big metal material parts. 6). It is can work with laptop PC by USB interface ,hand held design,easy to move and operate. 7). EZCAD software,can work with the many design which is created by Coreldraw or AutocadFiber Laser Marking Systems Specifications
| Laser Source for 20W Fiber Laser Marking Marking Speed: 0~7000mm/s Marking area: 100m x 100mm Optional Marking area : 150mm x 150mm/180mm x 180mm/200mm x 200mm Marking depth: 0.001mm~0.2mm Repeat precision: 0.0001mm Rated Power Source: AC 220V 50HZ or AC110V 60HZ Cooling way: air cooing | |
| Raycus Series | Pulsed, High Energy Ytterbium Fiber Lasers |
| Mode of operation | Pulsed |
| Polarization | random |
| Q-switched operation | |
| Output power adjustment range | 10%-100% |
| Nominal average output power W | 20W |
| Central emission wavelength | 1060-1070 nm |
| Emission Bandwidth (FWHM) | <10 nm |
| Long-term average power instability | <5% |
| Pulse width, (FWHM) | |
| 180 μsec | |
| Pulse Repetition Rate* kHz | 20-80 kHz |
| Energy per pulse (PRR = 20 kHz) | 0.95 mJ |
| Typical beam quality, M2 | <1.8 |
| Output fiber delivery length | 1.5m |
| Operating voltage | 800W |
Application & Materials:The Fiber Laser Coding Machine can work on all metals such as Aluminum ,Stainless Steel, Brass, Copper etc.
Also some of nonmetal such as nylon ,light button, ABS , PVC ,PES etc.
Compact Plywood Case package ,keep delivery safe.
Service & Warranty
After-Sales Service: HeatSign offers exemplary after-sales service following the remote initial training. Our support team is available 24/7 to handle any issues product owners may encounter – technical or otherwise. Every service call is taken care of on an emergent basis. Our customers can get in touch with us through any of the contact options: E-Mail or Call.
After-Sales Training: At HeatSign, after-sales services are considered a priority. Our training team is factory trained and guide you by email,video and remote PC control.This machine is easy to install and operate,we will support you use it perfect.
2 Years Free warranty: the first year whole machine warranty,the second year laser source warranty.HeatSign warrants all HeatSign-branded products and accessories that come with the original packaging (“HeatSign Product”) against faulty materials and manufacturing defects when used normally in accordance with HeatSign’s guidelines, for a period of TWO Year (“Warranty Period”) from the date of original purchase. HeatSign’s guidelines include but are not restricted to information given in the user guides/manuals, technical specifications and service communications.
Spare Parts:HeatSign not only sets standards in the development of new marking machines, but also in providing optimum service in the event of a repair. We stock genuine spare parts for every model for a minimum of 10 years. If the customer machine need spare to repair ,we will send spare part in the short time.
