Hot Sale Co2 Laser Power Supply MYJG-60WA for Co2 Laser Engraving and Cutting Machine

Hot Sale Co2 Laser Power Supply MYJG-60WA for Co2 Laser Engraving and Cutting Machine Rating: 4.3 out of 5

Laser Machine Best Choice Product provide laser cnc,laser engraving machine,laser machine,laser printer,laser wood machine Hot Sale Co2 Laser Power Supply MYJG-60WA for Co2 Laser Engraving and Cutting Machine. Get Discount Now! Only US $84.00/piece at this time. Hurry buy Now before back to normal price! Normal price US $100.00 or you can Check price now. Dont waste your time. Buy Now only in Shenzhen Qida Laser Tech Company Store Trusted Seller Store!

One of these products is actually extremely understanding of your requirements for this special goods. The goods brochure you obtain is absolutely provide a recommendation for those of you who desire to find the goods you desire. As a goods that aids your requirements to get convenience, of program this product is really interesting to obtain.

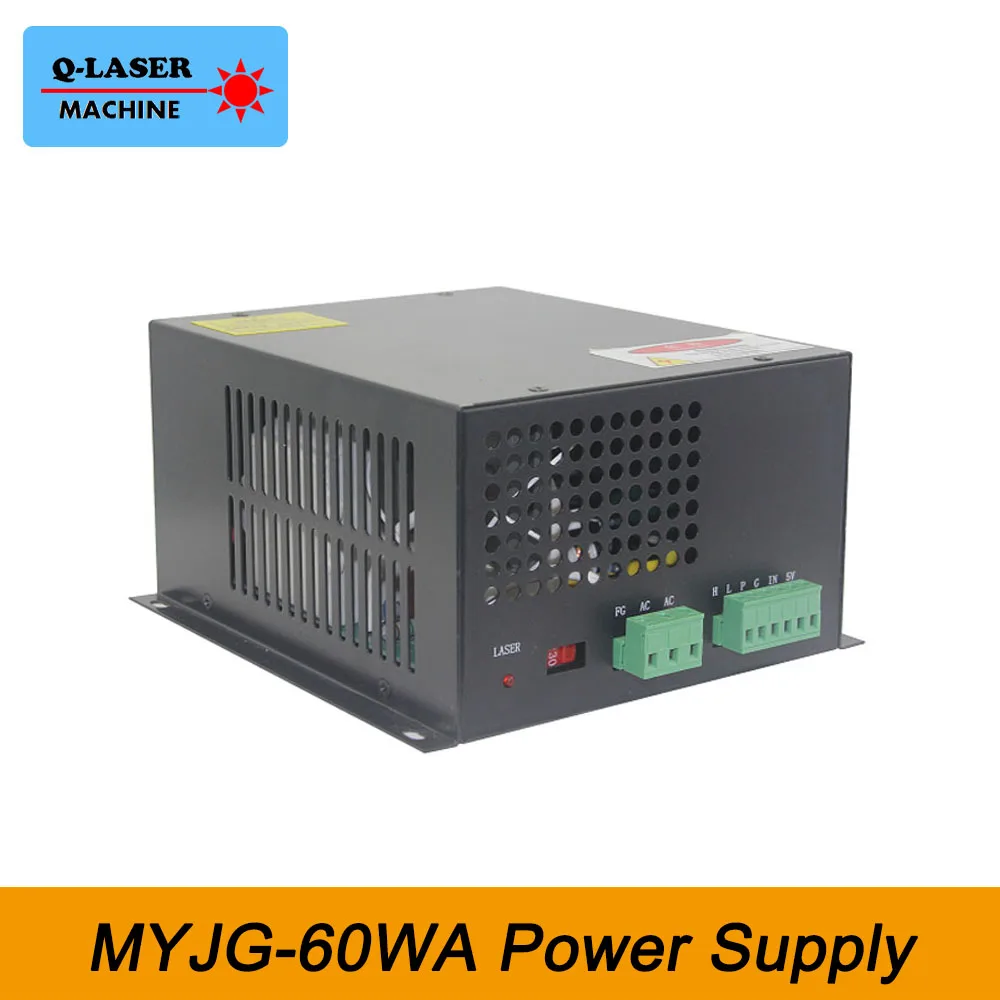

Co2 Laser Power Supply MYJG-60WA for Co2 Laser Engraving and Cutting Machine

  • Product name: 60W Laser Power Supply
  • Product Numbers: MYJG-60WA

60W Laser Power Suppy Main Features:

1. Adopting zero current half-bridge soft switch circuit, the power supply is featured by high efficiency and rapid response, and easy to match laser tubes of manufacturers.

2.It has simple port control, fits high and low level signals, can control laser start and stop through TTL level, and is equipped with abnormal protection switch to detect if there is water or ventilation outside.

3.Laser power can be regulated by inputting 0-5V simulation signal or inputting PWM signal.

4.5The power supply has open circuit protection function: Under the condition of good earthing protection, the power supply can work in open circuit in short time, and then it can avoid the damage caused by laser tube cracking.

5.Ex-factory aging test
Each power supply can undergo a 12h aging test at high temperature of 60ºC on full load, and 500 times of 7sec power-on/off tests.

Main Technical Data:

AC input voltage

AC220V or AC110V

DC input voltage

DC300V or DC150V

AC input frequency

47~440Hz

voltage output

35KV

Maximum current

23mA(according to laser tubes of different manufacturers)

Efficiency

91%

Overcurrent protection

130% of maximum current

Open circuit protection

Yes (short time)

Structure

Fan cooling

High level control voltage range

≥3V

Low level control voltage range

≤0.8V

Operating temperature

-30℃~+65℃

Relative humidity

20~85%RH(noncondensing)

Withstand voltage

Input—output

AC1500V1 min ≤10mA

Input—shell

AC1500V1 min ≤10mA

Output—shell

Connection

Insulation resistance

≥50MΩ(DC500V)

Earth leakage current

≤1mA(AC220V)≤0.5 mA(AC110V)

Vibration resistance

Amplitude 0.5mm frequency 10~55Hz three-dimensional direction 2h

Fault-free time MTBF

≥30,000hours

60ºC high temperature test time on full load

12 hours

7s power on/off test

500
