Laser Machine Best Choice Product provide laser cnc,laser engraving machine,laser machine,laser printer,laser wood machine 2018 Offers DSP Closed-Loop Step Motor Drive Kit 20-70VAC/30~100VDC 2PH 6A 8.5NM NEMA34 86mm Laser Machine LC86H2120+LCDA86H. Get Discount Now! Only US $154.85/piece at this time. Hurry buy Now before back to normal price! Normal price US $163.00 or you can Check price now. Dont waste your time. Buy Now only in ToAuto FASTT0BUY Commerce (Shenzhen) Store Trusted Seller Store!
Package:
- motor LC86H2120
- drive LCDA86H
- 3M Encoder cable& Power Cable
Application:
It is suitable all kinds of Small and medium-sized automation equipment and instrumentation.
Such as carving machine, wire-stripping machine, marking machine, cutting machine, laser machine, plotting instrument, medical equipment, CNC, etc. This is efficient for the equipment with Low noise and high-speed.
Motor Electrical Specifications:
| Model | Phase | Holding torque | Phase current | Motor Length | rotational inertia | Weight kg | Encoder ppr |
| LC86H260 | 2 | 3Nm | 6A | 60mm | 1.1g.m2 | 2 | 1000 |
| LC86H268 | 2 | 3.6Nm | 6A | 68mm | 1.4 g.m2 | 2.2 | 1000 |
| LC86H280 | 2 | 4.5NM | 6A | 80mm | 1.8 g.m2 | 2.5 | 1000 |
| LC86H298 | 2 | 7.2NM | 6A | 98mm | 2.8 g.m2 | 3.3 | 1000 |
| LC86H2120 | 2 | 8.5NM | 6A | 120mm | 3.6 g.m2 | 4 | 1000 |
| LC86H2128 | 2 | 10.5NM | 7.5A | 128mm | 4.2 g.m2 | 4.5 | 1000 |
| LC86H2160 | 2 | 12nm | 7.5A | 160mm | 5.4 g.m2 | 5.4 | 1000 |
Drive functional characteristics:
| Model | LCDA86H |
| working voltage | 20-70VAC/30~100VDC |
| peak current | 6A |
| control mode | 32 bits DSP closed-loop vector control technology |
| Pulse limit frequency | Defaulting 200 KHZ/500 KHZ (optional) |
| defensive function | Over-current, over-voltage and tracking error out-of-tolerance alarm |
| incoming signal | Pulses, direction and enable signal |
| outcoming signal | In position signal and fault output signal |
| motor encoder feedback | AB differential input |
| subdivisions | The default 4000/rev, through debugging software can install arbitrarily subdivisions (200-51200) |
| storage temperature | -20-80 degree centigrade |
| Ambient Temp | 0-50 degree centigrade |
| Ambient thumidity | 40-90RH |
| parameter setting | Static current, subdivisions, effective along, fault signal output signal level, position loop and current loop and parameter settings. |
Motor Mechanical Dimensions As photo:

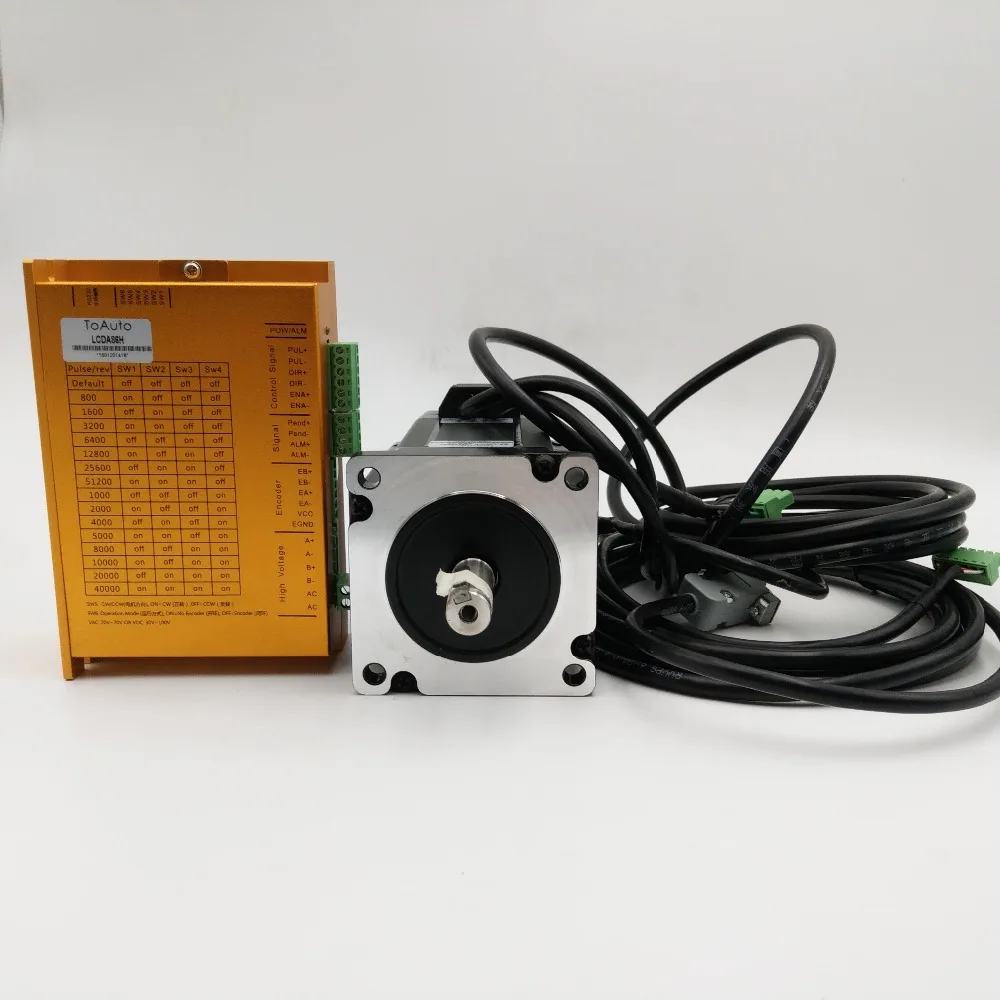

Product photos:
Related hot selling stepper kits
Related planetary gear reducer for NEMA34 86mm stepper motor:
| Model | Ratio | Precision | Application | Link |
| 86PX-6 | 6:1 | High Precision | for NEMA34 Stepper Motor | |
| 86PX-10 | 10:1 | High Precision | for NEMA34 Stepper Motor | |
| 86PX-30 | 30:1 | High Torque | for NEMA34 Stepper Motor |
