Laser Machine Best Choice Product provide laser cnc,laser engraving machine,laser machine,laser printer,laser wood machine Hurry! Special Leadshine 3ND583 laser machine parts cnc router Fitting cnc router machine parts. Get Discount Now! Only US $58.50/piece at this time. Hurry buy Now before back to normal price! Normal price US $65.00 or you can Check price now. Dont waste your time. Buy Now only in Kind&Kinds Store Trusted Seller Store!

-

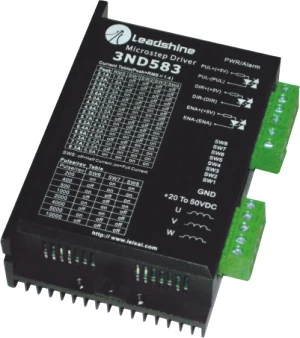

Leadshine 3ND583 3-phase microstepping Drive work 36-50 VDC out 2.1A to 8.3A for Associated products NEMA 23 stepper motor

Typical Connection

Mechanical Specifications (unit: mm [inch])

2 Connector Configuration :

Connector P1 Configurations

Pin Function	Details
PUL+	Pulse signal: In single pulse (pulse/direction) mode, this input represents pulse signal, each rising or falling edge active (software configurable); 4-5V when PUL-HIGH, 0-0.5V when PUL-LOW. In double pulse mode (pulse/pulse) , this input represents clockwise (CW) pulse,active both at high level and low level (software configurable). For reliable response, pulse width should be longer than 2.5µs. Series connect resistors for current-limiting when +12V or +24V used. The same as DIR and ENA signals.
PUL-
DIR+	DIR signal: In single-pulse mode, this signal has low/high voltage levels, representing two directions of motor rotation; in double-pulse mode (software configurable), this signal is counter-clock (CCW) pulse,active both at high level and low level (software configurable). For reliable motion response, DIR signal should be ahead of PUL signal by 5µs at least. 4-5V when DIR-HIGH, 0-0.5V when DIR-LOW. Please note that rotation direction is also related to motor-drive wiring match. Exchanging the connection of two wires for a coil to the drive will reverse motion direction.
DIR-
ENA+	Enable signal: This signal is used for enabling/disabling the drive. High level (NPN control signal, PNP and Differential control signals are on the contrary, namely Low level for enabling.) for enabling the drive and low level for disabling the drive. Usually left UNCONNECTED (ENABLED).
ENA-

Connector P2 Configurations

Pin Function	Details
+Vdc	Power supply, 20~50 VDC, Including voltage fluctuation and EMF voltage.
GND	Power Ground.
A+, A-	Motor Phase A
B+, B-	Motor Phase B

3 Microstep&Current :

Microstep Resolution Selection

When its not in software configured mode, microstep resolution is set by SW5, 6, 7, 8 of the DIP switch as shown in the following table:

Microstep	Steps/rev.(for 1.8o motor)	SW5	SW6	SW7	SW8
1 to 512	Default/Software configured	on	on	on	on
2	400	off	on	on	on
4	800	on	off	on	on
8	1600	off	off	on	on
16	3200	on	on	off	on
32	6400	off	on	off	on
64	12800	on	off	off	on
128	25600	off	off	off	on
5	1000	on	on	on	off
10	2000	off	on	on	off
20	4000	on	off	on	off
25	5000	off	off	on	off
40	8000	on	on	off	off
50	10000	off	on	off	off
100	20000	on	off	off	off
125	25000	off	off	off	off

Mechanical Specifications (unit: mm [inch]) :
