CNC NEMA23 Stepper Motor Leadshine 1.5NM 128oz-in 3ph 5.2A D=8mm Synchronous Pulley 573S15-L Laser Machine
Typical Applications
Suitable for applications require high reliability, high performance, low cost stepper systems, such as CNC routers, small and medium size milling or engraving machines, laser machines, textile equipment, medical devices, assembly machines, pick-and-place devices, etc.
Highlights
- 3 phase 1.2° stepping angle
- NEMA 23
- Holding toque of 0.9 N*m to 1.5 N*m (128 - 184 oz-in)
- High precision
- Smooth movement
- Low motor heating
- Low movement noise
| Angle Accuracy | +5%(full step, no load) |
| Temperature Rise | 80°C Max |
| Ambient Temperature | -10°C -- +50°C |
| Insulation Resistance | 100MΩmin.500VDC |
| Dielectric Strength | 500VAC for one minute |
| Shaft Radial Play | 0.06 Max.(450g-load) |
| Shaft Axial Play | 0.08 max.(450g-load) |
Electric parameter
| Model | 573S09 | 573S15 | 573S15-L | 573S20-LS | |
| Step Angle | 1.2 degree | 1.2 | 1.2 | 1.2 | |
| Holding torque | 0.9NM | 1.5 | 1.5 | 2 | |
| Rated current | 3.5A | 5.2 | 5.2 | 5.8 | |
| # of Leads | 6 | 6 | 6 | ||
| Phase Inductance | 1.7mh | 1.35 | 1.35 | ||
| Phase resistance | 0.8Ohm | 0.9 | 0.9 | ||
| Rotor inertia | 300Kg.cm2 | 480 | 480 | ||
| detent torque | 0.4Kg.cm | 0.68 | 0.68 | ||
| Shaft diameter | 6.35mm | 8 | 8 | 8 | |
| Shaft length | 21mm | 21 | 28 | 30 | |
| Motor Length | 56mm | 79 | 79 | 79 | |
| Match Drives | 3DM683 | 3DM683 | 3ND583B | 3DM580 | |

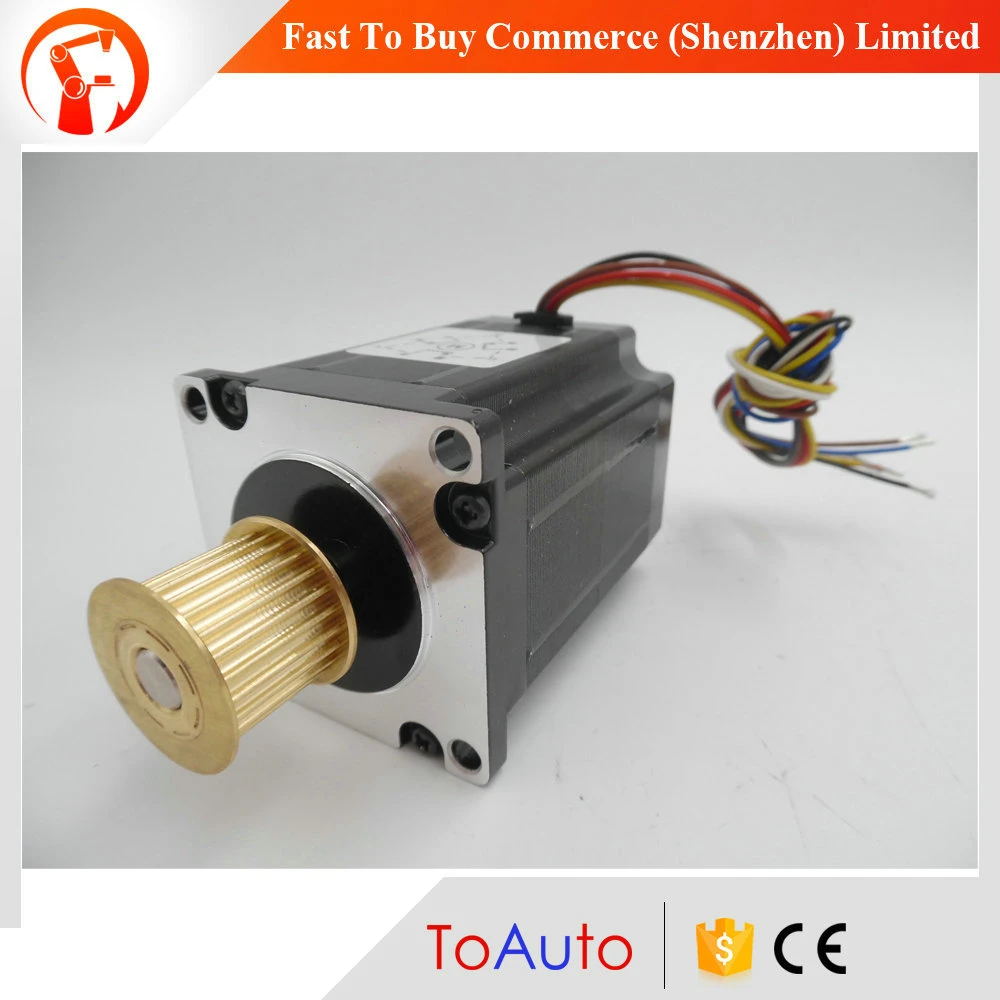

573S15-L with Synchronous pulley:
Number of gears: 24
Spacing: 3mm
Width: 18mm
Fasttobuy provides tens of models of stepper drives. From 2 phase to 3 phase, analog to DSP digital, DC input (18-80) to 110/120 AC or 220 / 220 AC input, Fasttobuy can provide the right stepper drives to satisfy the needs of your stepper control systems. Fasttobuy stepper products are well-known because of their wide choices, excellent performance, easy to use, high reliability, and low costs.
IF you need the suitable drive to match the motor. please do contact us for a better solution and optimal price.
Dimension
Photos
Related hot selling stepper kits
Related NEMA23 RV30 worm gear reducer for stepper motor:
| Model | Center distance | Ratio | Flange | Application | Link |
| NMRV030-10 | NMRV030 | 10:1 | NEMA23 | for Stepper Motor | |
| NMRV030-15 | NMRV030 | 15:1 | NEMA23 | for Stepper Motor | |
| NMRV030-30 | NMRV030 | 30:1 | NEMA23 | for Stepper Motor |
Related planetary gear reducer for NEMA23 57mm stepper motor:
| Model | Ratio | Precision | Application | Link |
| 57PX-6 | 6:1 | High Precision | for NEMA23 Stepper Motor | |
| 57PX-10 | 10:1 | High Precision | for NEMA23 Stepper Motor | |
| 57PX-36 | 36:1 | High Torque | for NEMA23 Stepper Motor |
