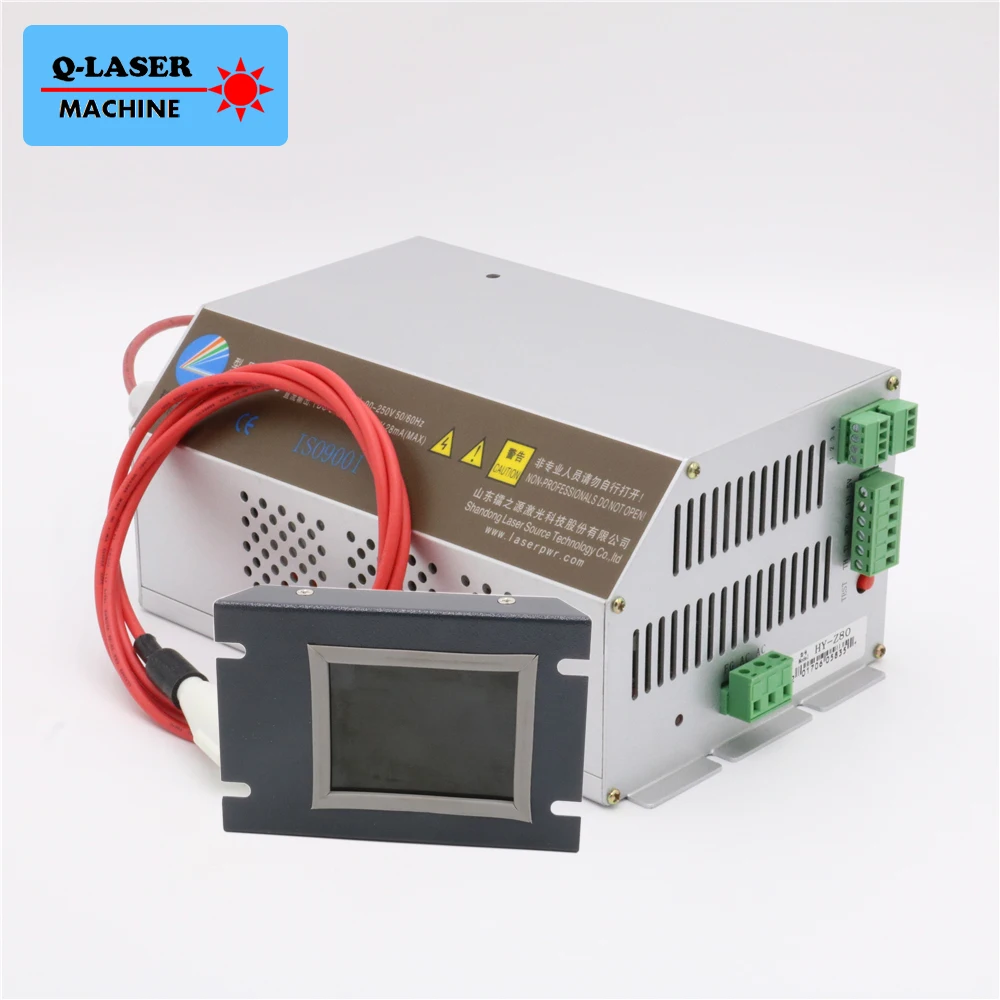

Intelligent Z80 Co2 Laser Power Supply 80W For Laser Engraving And C Machine

1.Main Features:

1. Unique design with several patents

2. High intelligence: built-in control, can communicate with motion controller, and it can communicate with max 32pcs power supplies by cascade connecting, then the controller panel can display working condition of power supply, very easy for user to monitor and judge the fault.

3. Make the maintenance much easier: User can judge the problem by himself.

4. Multi-function LCD screen: One LCD screen can show the information of two power supplies, easy use for multi-head machine.

5. Universal: with PFC function, AC90-250V input voltage range, globally universal.

6. Open circuit protection: When the high voltage end is in open circuit or not connected well, the power supply will start automatic protection, to prevent high voltage arc effectively.

7. More safety: with high voltage discharge function, no residual voltage when turning off, safer for user.

8. Excellent cover with patent design: Good appearance, better heat dissipation.

9. Improved current control mode, more stable laser, better compatibility.

2.Parameters:

Item

Data

Z80

Z100

Z150

Input

Input voltage

AC90-250V

AC frequency

47---440Hz

Max input power

550W

650W

750W

Max input current

(90V input)

6A

7.5A

9.5A

Output

Max output voltage

40KV

45KV

55KV

Max output current

28mA

32mA

38mA

Efficiency

≥90%(full load)

MTBF(mean time between failure)

≥10000 hours

Response speed

≤1mS (the time from the signal is given to output current

reaches 90% of set current)

Withstand voltage

Input-output, input-shell:AC1500V 10mA 60s:

Working environment

Temperature(-10~40)°C , relative humidity:≤90%

Cooling

Force Air cooling

Network cable

Length

1.5M/3M

1.5M/3M

1.5M/3M

Dimension

L*W*H=(mm)

235*144*104

278*144*104

330*144*104

Weight

Net weight(KG)

2.45

2.75

3.5

Color

Silver gray

<Z Serise Laser power supply Connection>

Laser power supply maintenance of common sense:

1, Before maintenance, check the power supply shell is normal grounding;
2, measuring power box shell on the work station or whether there is a voltage difference between the workbench
3, power box with high pressure on many places, after power on, hand cant touch the metal parts of the device
4, Before replace the power box inside device ,turn off the power supply of the energy storage capacitor shall be discharged completely and voltage profile after confirm no voltage for the next step of replacement or repair measures
5, if the laser machine works unstable, or fall of work, can check circuit screw, terminal blocks, such as whether is loose, wiring the phenomenon such as oxidation.the old power supply or the power supply works under poor environment ,pay more attention on formation condition.
6 ,when maintenance,don’t tear down the internal cable tie and connecting wire, control panel, or cut disorderly change, is likely to cause the whole machine interference or performance degradation, and even cause scrap.

Fault Analysis of CO2 Laser Power Supply Not Working:


CO2 laser power does not work


(1) Maybe overvoltage protection action:
A. Please check whether the power supply output and the positive connection of the lamp are reliable!
B. may be damaged or lamp tube aging, breakdown voltage exceeds 35KV.
(2) Check that the AC input cable and the control wire are securely connected.
(3) Check the high-voltage output line for damage, leakage may lead to power in the work, but the lamp is not light!
(4) Power ground wire (not the power output of the black line but the first port of the AC input terminal see page 3 of the manual) is correct and reliable access to the earth.​
