Hot Limited CO2 Laser Power Supply MYJG-100W 80-100W for Co2 Laser Cuttting Engraving Machine

Hot Limited CO2 Laser Power Supply MYJG-100W 80-100W for Co2 Laser Cuttting Engraving Machine lamachine Rating: 3.7 out of 5

Laser Machine Best Choice Product provide laser cnc,laser engraving machine,laser machine,laser printer,laser wood machine Hot Limited CO2 Laser Power Supply MYJG-100W 80-100W for Co2 Laser Cuttting Engraving Machine. Get Discount Now! Only US $113.40/piece at this time. Hurry buy Now before back to normal price! Normal price US $135.00 or you can Check price now. Dont waste your time. Buy Now only in Shenzhen Qida Laser Tech Company Store Trusted Seller Store!

Terrific product could enhance the quality of your life. Eligible to be bought. Affordable cost and also free shipping. Allow's get before costs rise.

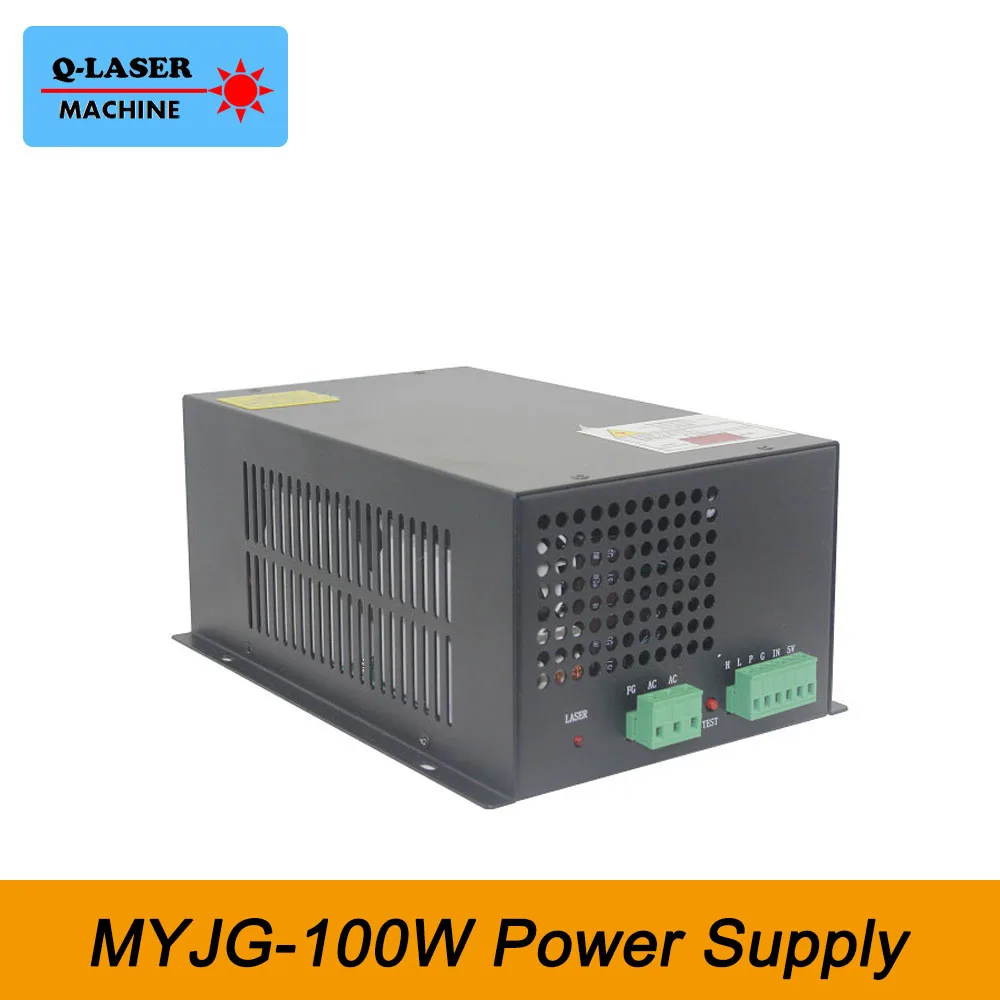

CO2 Laser Power Supply MYJG-100W 80-100W for Co2 Laser Cuttting Engraving Machine

130W Laser Power Supply Main Feaures:

1.Adopting zero current half-bridge soft switch circuit, the power supply is featured by high efficiency and rapid response, and easy to match laser tubes of manufacturers.

2.It has simple port control, fits high and low level signals, can control laser start and stop through TTL level, and is equipped with abnormal protection switch to detect if there is water or ventilation outside.

3.Laser power can be regulated by inputting 0-5V simulation signal or inputting PWM signal.

4.The power supply has open circuit protection function: Under the condition of good earthing protection, the power supply can work in open circuit in short time, and then it can avoid the damage caused by laser tube cracking.

5.Ex-factory aging test: Each power supply can undergo a 12h aging test at high temperature of 60ºC on full load, and 500 times of 7sec power-on/off tests.

Main Technical Data：

AC input voltage		AC220V or AC110V
DC input voltage		DC300V or DC150V
AC input frequency		47～440Hz
Maximum voltage output		50KV
Maximum current		38mA(according to laser tubes of different manufacturers)
Efficiency		91%
Overcurrent protection		130% of maximum current
Open circuit protection		Yes (short time)
Structure		Fan cooling
High level control voltage range		≥3V
Low level control voltage range		≤0.8V
Operating temperature		-30℃～+65℃
Relative humidity		20～85%RH（noncondensing）
Withstand voltage	Input—output	AC1500V1 min ≤10mA
	Input—shell	AC1500V1 min ≤10mA
	Output—shell	Connection
Insulation resistance		≥50MΩ（DC500V）
Earth leakage current		≤1mA（AC220V）≤0.5 mA（AC110V）
Vibration resistance		Amplitude 0.5mm frequency 10~55Hz three-dimensional direction 2h
Fault-free time MTBF		≥30,000hours
60ºC high temperature test time on full load		12 hours
7s power on/off test		500
Maximum size (L*W*H)		320mm*220mm*80mm

​
