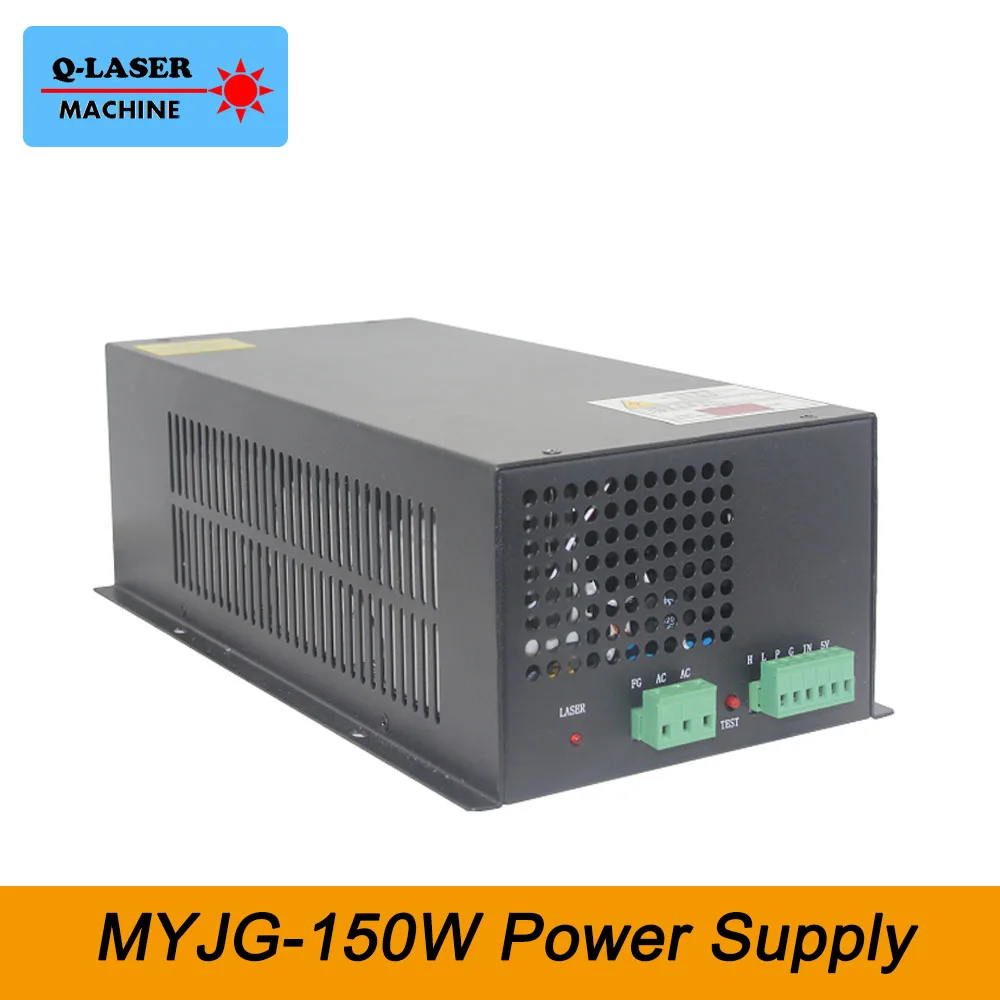

CO2 Laser Power Supply MYJG-150W for 130W-150W CO2 Laser Engraving Cutting Machine
- Product name: 130W/150W Laser Power Supply
- Product Numbers: MYJG-150W
130W Laser Power Supply Main Feaures:
1.Adopting zero current half-bridge soft switch circuit, the power supply is featured by high efficiency and rapid response, and easy to match laser tubes of manufacturers.
2.It has simple port control, fits high and low level signals, can control laser start and stop through TTL level, and is equipped with abnormal protection switch to detect if there is water or ventilation outside.
3.Laser power can be regulated by inputting 0-5V simulation signal or inputting PWM signal.
4.The power supply has open circuit protection function: Under the condition of good earthing protection, the power supply can work in open circuit in short time, and then it can avoid the damage caused by laser tube cracking.
5.Ex-factory aging test: Each power supply can undergo a 12h aging test at high temperature of 60ºC on full load, and 500 times of 7sec power-on/off tests.
Main Technical Data：
| AC input voltage | AC220V or AC110V | |
| DC input voltage | DC300V or DC150V | |
| AC input frequency | 47～440Hz | |
| Maximum voltage output | 50KV | |
| Maximum current | 38mA(according to laser tubes of different manufacturers) | |
| Efficiency | 91% | |
| Overcurrent protection | 130% of maximum current | |
| Open circuit protection | Yes (short time) | |
| Structure | Fan cooling | |
| High level control voltage range | ≥3V | |
| Low level control voltage range | ≤0.8V | |
| Operating temperature | -30℃～+65℃ | |
| Relative humidity | 20～85%RH（noncondensing） | |
| Withstand voltage | Input—output | AC1500V1 min ≤10mA |
| Input—shell | AC1500V1 min ≤10mA | |
| Output—shell | Connection | |
| Insulation resistance | ≥50MΩ（DC500V） | |
| Earth leakage current | ≤1mA（AC220V）≤0.5 mA（AC110V） | |
| Vibration resistance | Amplitude 0.5mm frequency 10~55Hz three-dimensional direction 2h | |
| Fault-free time MTBF | ≥30,000hours | |
| 60ºC high temperature test time on full load | 12 hours | |
| 7s power on/off test | 500 | |
| Maximum size (L*W*H) | 320mm*220mm*80mm | |
