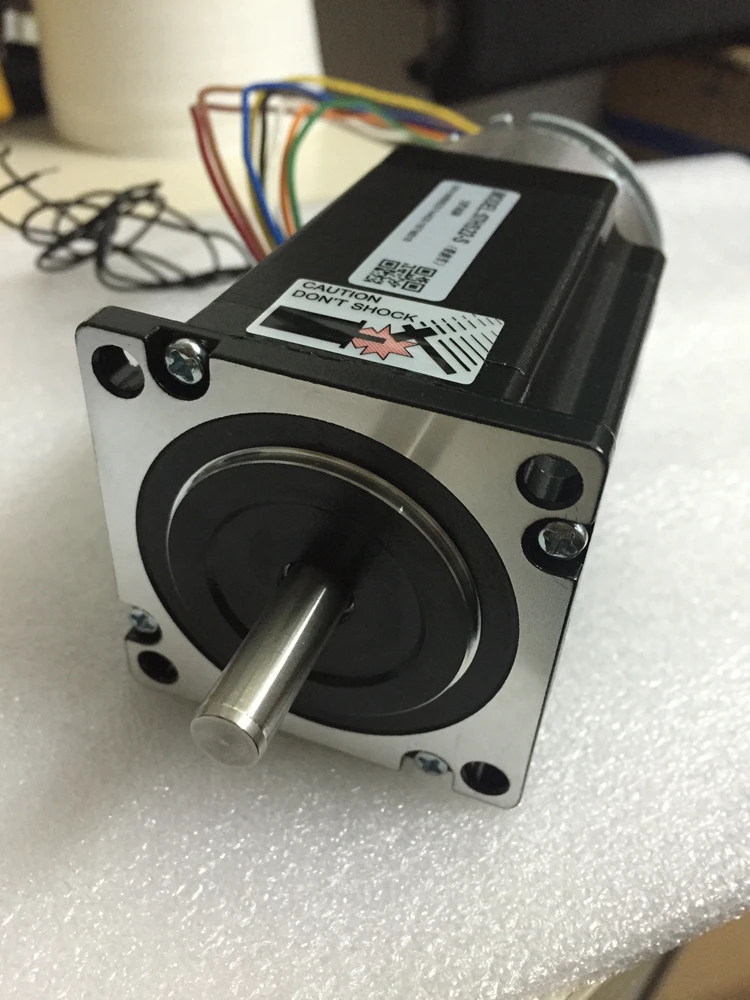

NEMA23 2 phase Stepper Motor 2.2NM 314oz-in 3.5A D=8mm Brake 57HS22-S for CNC Laser Machine
Typical Applications
Suitable for applications require high reliability, high performance, low cost stepper systems, such as CNC routers, small and medium size milling or engraving machines, laser machines, textile equipment, medical devices, assembly machines, pick-and-place devices, etc.
57HS Series - 2 Phase NEMA 23 Stepper Motors
Highlights
1. 2 phase 1.8° stepping angle
2. NEMA 23
3. Holding toque of 0.9 N*m to 2.2 N*m (127.4 - 312 oz-in)
4. High precision
5. Smooth movement
6. Low motor heating
7. Low movement noise
General Specifications
| Angle Accuracy | +5%(full step, no load) |
| Temperature Rise | 80°C Max |
| Ambient Temperature | -10°C -- +50°C |
| Insulation Resistance | 100MΩmin.500VDC |
| Dielectric Strength | 500VAC for one minute |
| Shaft Radial Play | 0.06 Max.(450g-load) |
| Shaft Axial Play | 0.08 max.(450g-load) |
electric parameter
| Model | 57HS09 | 57HS13 | 57HS13B | 57HS22-A | 57HS22-L | 57HS22-C | 57HS22-S |
| Step Angle | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 |
| Holding torque | 0.9NM | 1.3 | 1.3 | 2.2 | 2.2 | 2.2 | 2.2 |
| Rated current | 2.8A | 2.8 | 4A | 3.5 | 3.5 | 3.5 | 3.5 |
| # of Leads | 8 | 8 | 4 | 8 | 8 | 8 | 8 |
| Phase Inductance | 1.2mh | 2.1 | - | 1.8 | 1.8 | 1.8 | 1.8 |
| Phase resistance | 0.8 | 1 | - | 0.8 | 0.8 | 0.8 | 0.8 |
| Rotor inertia | 260 g.cm2 | 460 | - | 460 | 460 | 460 | 460 |
| Motor Length (mm) | 56mm | 76 | 55 | 80 | 80 | 80 | 80 |
| Characteristic | Synchronous pulley | Double Shaft | Brake | ||||
| Match Drives | DM432/DM556/M542 | ||||||
57HS13B: shaft diameter(6.35mm), shaft length(21mm)
57HS22 shaft diameter: 8mm with platform
57HS22-L with Synchronous pulley:
Number of gears: 24
Spacing: 3mm
Width: 18mm
Fasttobuy provides tens of models of stepper drives. From 2 phase to 3 phase, analog to DSP digital, DC input (18-80) to 110/120 AC or 220 / 220 AC input, Fasttobuy can provide the right stepper drives to satisfy the needs of your stepper control systems. Fasttobuy stepper products are well-known because of their wide choices, excellent performance, easy to use, high reliability, and low costs.
IF you need the suitable drive to match the motor. please do contact us for a better solution and optimal price.
Dimension
Wiring
Product photos
Related hot selling stepper kits
Related NEMA23 RV30 worm gear reducer for stepper motor:
| Model | Center distance | Ratio | Flange | Application | Link |
| NMRV030-10 | NMRV030 | 10:1 | NEMA23 | for Stepper Motor | |
| NMRV030-15 | NMRV030 | 15:1 | NEMA23 | for Stepper Motor | |
| NMRV030-30 | NMRV030 | 30:1 | NEMA23 | for Stepper Motor |
Related planetary gear reducer for NEMA23 57mm stepper motor:
| Model | Ratio | Precision | Application | Link |
| 57PX-6 | 6:1 | High Precision | for NEMA23 Stepper Motor | |
| 57PX-10 | 10:1 | High Precision | for NEMA23 Stepper Motor | |
| 57PX-36 | 36:1 | High Torque | for NEMA23 Stepper Motor |
