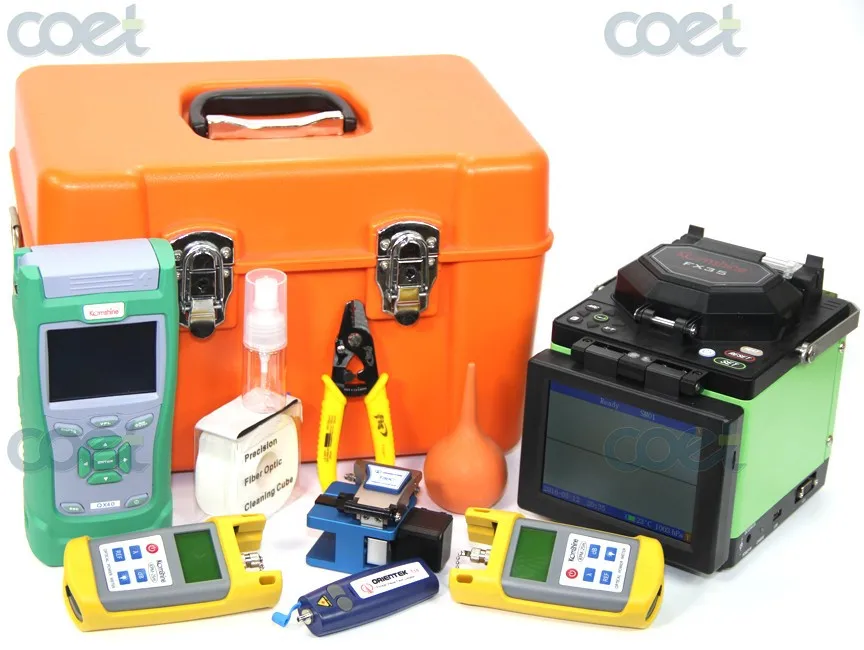

KOMSHINE FX35 Fusion Splicer Kit w/ Cleaver + KOMSHINE QX40 Dual Wavelength 1310/1550nm 30/28dB OTDR + Optical Power Meter + Optical Light Source + Visual Fault Locator
Ships in 24Hrs via TNT/DHL/Fedex, Get it Fast
Brand New!
All the items come with 1-Year-Warranty
All the items come fully Calibrated
1: KOMSHINE FX35 FUSION SPLICER KIT INCLUDES:
- FX35 Fusion Splicer
- KFC-33 High Precision Fiber Cleaver
- Tri-hole Fiber Coat Stripper
- Kimwipes Lint-Wipers 280 wipers/box
- Instruction CD
- Fusion Splice Protection Sleeves 500ea
- Internal Battery
- Charger, AC Power Cord
- Spare Electrodes (one pair)
- Cooling Tray, Alcohol Pump Bottle, Blower Brush
- User Manual
- Carrying Case
Specifications:
| Applicable fibers | SM MM DS NZDS |
| Fiber diameter | Cladding diameter:80-150μm; Coating diameter:100-1000μm |
| Fiber count | Single |
| Fiber cleaved length | 12-16mm (Coating diameter:250μm) |
| Actual average splice loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS) |
| Typical splicing time | Typical 9 sec (standard SM fiber) |
| Return loss | >60dB |
| Splicing mode | Auto Calibrate Normal Special |
| Fiber aligning method | Meticulous,Core,Clad,Manual |
| Splicing program | 53 (templet), 40(user) |
| Tube heating program | 9 (templet),24(user) |
| Tube typical heating time | Typical 25 sec |
| Protection sleeve length | 60mm, 40mm |
| Storage of splice result | 4000 results, 20 parameter per result |
| Fiber image magnification | 300X (X or Y view),150X (X and Y view) |
| Battery capacity | Typical 160 cycles (splice/tube heat with inner Li-battery) |
| Monitor | 5.7 inch color LCD monitor |
| Tension test | 2N |
| Electrode life | 4000 |
| Terminal | USB |
| Power supply | AC 100-240V with AC adapter Inner Li-battery (7800mAH) DC 13.5V |
| Operating condition | 0-5000m above sea level, -10-50OC Max wind velocity of 15m/s |
| Dimension | 150mm(L)×150mm(W)×150mm(H) |
| Weight | 2.55Kg excluding battery,3.05Kg including battery |
2: KOMSHINE QX40 Dual Wavelength 1310/1550nm 30/28dB SM OTDR With FC/UPC + SC/UPC + LC/UPC Connectors INCLUDES:
Specifications:
| Model | = | QX40 |
| Wavelength(nm) | = | 1310/1550 |
| Dynamic range(dB) | = | 32/30 |
| Pulse width (ns) | = | 5,20,40,80,160,320,640,1280,2560,5120,10240,20480 |
| Display | 3.5 inch TFT LCD touch screen | |
| Event blind zone (m) | = | 8 |
| Attenuation blind zone (m) | = | 10 |
| Linearity (dB/dB) | = | ±0.05 dB/ dB |
| Loss threshold (dB) | = | 0.05 |
| Loss resolution ratio (dB) | = | 0.01 |
| Sampling resolution ratio (m) | = | 0.125 to 8 |
| Sampling point | = | 32k |
| Distance uncertainty (m) | = | ±(1 m + 5×10-5× distance + sampling interval) |
| Distance scope (km) | = | 0.3 to180 |
| Memory capacity of trace | = | SD Card (4G), > 10000 pieces |
| Duration of measurement | = | Defined by user; 5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min are selectable |
| Optical interface | = | FC/UPC+SC/UPC+LC/UPC |
| Data interface | = | USB interface, SD card interface |
| Visual Fault Locator | = | Available |
| Power supply | = | Lithium battery; continuing working duration ≥ 8 hours |
| Warranty period | = | 12 months |
Standard Package:
QX40 OTDR
FC+SC+LC UPC Connectors
SM Fiber Optic Patch Cord FC-SC 1M
Testing & Calibration Report
AC/DC adapter
Quality certification
Trace analyzing software(CD)
Internal Battery
User Manual
Carrying Case
3: Mini Optical Power Meter + Mini Light Source + Visual Fault Locator INCLUDES:
- 1. Six wavelenghts Optical Power Meter for SM & MM
- 2. Dual Wavelengths 1310/1550nm Optical Light Source for SM
- 3. Pocket size Visual Fault Locator
- 1 Year Manufacturers Warranty
