Description:

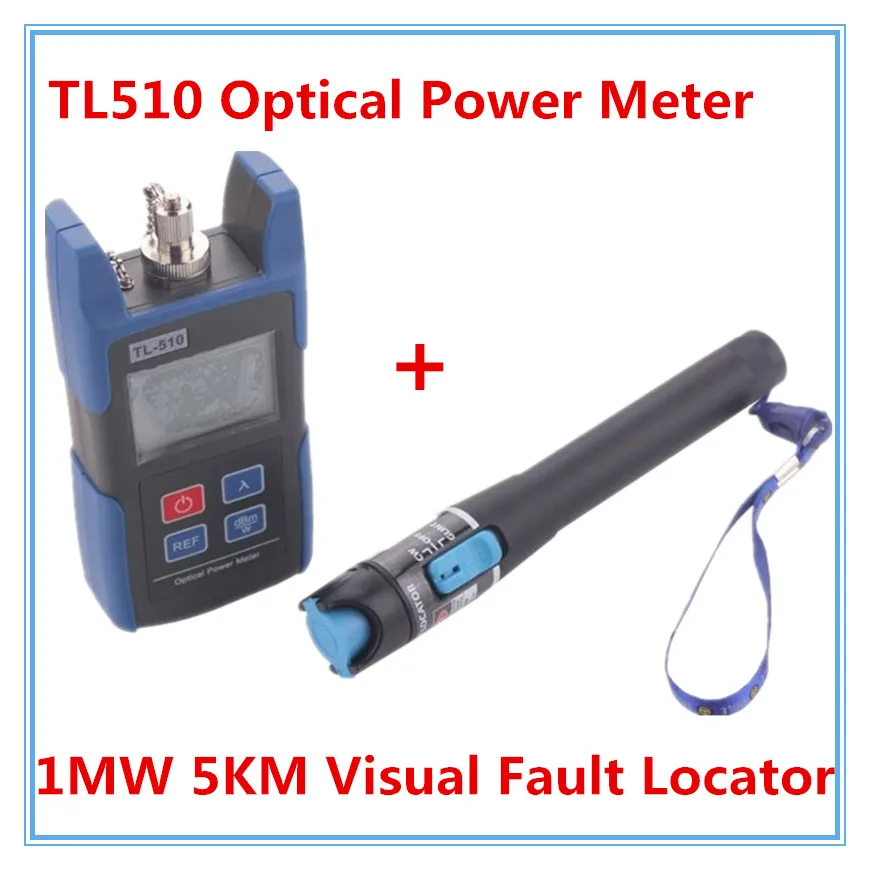

Optical Power Meter TL510 + TL532 red pens are the most popular field of optical fiber communication test instrument, but also the most cost-effective. FTTH fiber optic construction indispensable tool!
TL510 miniature handheld optical power meter is for installation, operation and maintenance of optical fiber network special design of a precise, durable, convenient portable test instrument. With clever appearance, can choose to switch back light display, automatic shutdown function, super wide optical power test range, accurate testing accuracy and new users auto-calibration function and general interface design.
TL510A:-70 ~ + 10 dBm, used in telecommunications, unicom, mobile data communications
TL510C:-50 ~ + 26 dBm, applied in the broadcast TV, video monitoring, etc
Features:
* High sensitivity, big dynamic range
* Common interface design: FC/SC/ST interface, with standard FC, SC, ST adapter interface
* Miniature chassis protection design, compact and easy, prevent accident drop damage instrument detectors.
* Rapid response, no preheating
* Low voltage function display
* The automatic shutdown function can be chosen
* Automatically shut off the backlight function can be chosen
* New user auto-calibration function
* Logarithm power (dBm) and linear power (xW) measurement
* Larger screen and LED backlit
Specifications:
| Model | TL510A | TL510C |
| Wavelength(nm) | 800~1700nm | |
| Detector | InGaAs | |
| Measurement Range (dBm) | -70~+10 | -50~+26 |
| Uncertainty | <±3%(-10dBm, 22°C) | |
| Calibrated Wavelength(nm) | 850,1300,1310,1490,1550, 1625 | |
| Resolution(dB) | Linear 0.1% or Non-linear 0.01dBm | |
| Optical Connector | FC/SC | |
| Power Supply | Alkaline Battery(Battery not included) | |
| Battery Operating Time | 120 h with 1.5V Battery(3) | |
| Operating Temperature(°C) | -10 ~ +50°C | |
| Storage Temperature(°C) | -20 ~ +70°C | |
| Relative Humidity | 0 to 95% (non-condensing) | |
| Dimension(mm) | 130 x 63 x 29 | |
| Weight(g) | 160 | |
Introduction
The TL532 is specially designed for field personnel who need an efficient and economical tool for fiber tracing,fiber routing and continuity checking in an optical network during and after installation.
It includes:Finding the breakpoint, poor connections, bending or cracking in fiber optic cables.Finding the faults of OTDR.
Features
2.5mm universal connector for test different ST, SC, FC connector
Operates either in CW or Pulsed
Constant output power
Crash-proof and dust-proof design for laser head
Laser case ground design prevents ESD damage
Burning testing to ensure the reliability.
Portable and rugged, easy to use
Lower Battery warning
Long battery life (up to 50 hours)
Specification
| Model | TL-532-1 | TL-532-10 | |
| Wavelength | 650nm±20nm | ||
| Output Power | >1mW | >10mW | |
| Dynamic Distance | >5km | >10km | |
| Connector | 2.5mm Universal connector | ||
| Packing Size | 203*70*29 | ||
| Power Supply | 2*AA Battery(not inluded) | ||
| Operating Temperature(°C) | -10 ~ +60°C | ||
| Storage Temperature(°C) | -25 ~ +70°C | ||
| Dimension(mm) | 203 x 70 x 29 | ||
| Weight(g) | 230g | ||
