Popular Laser Choice Product provide 3d laser,laser flashlight,laser led,laser meter,laser pointer Big Stock Discount Fusion Splicer Kit w/ KF-52 Fiber Cleaver +JDSU MTS-4000LA OTDR + Power Meter+Laser Source+Visual Fault Locator/VFL. Price at this time US $6695.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in Fiber Optic Resale Corp Trusted Seller Store!
Fantastic item could boost the top quality of your life. Eligible to be bought. Economical price and also totally free shipping. Allow's get before prices increase.
KomShine Optical Fiber OTDR equal to EXFO MAX-715B,JDSU MTS-2000,MTS-4000,YOKOGAWA AQ7275 OTDRORIENTEK T37 Fusion Splicer Kit w/ Cleaver + JDSU MTS-4000 E4126LA SM 35/33dB OTDR + Optical Power Meter + Optical Light Source + Visual Fault Locator
1: Komshine GX36 FUSION SPLICER KIT INCLUDES:
• Komshine GX36 Fusion Splicer
• High Precision T30C Cleaver integrated Scrap Catcher
• High Precision Fiber Stripper
• Battery Built-in
• AC Adapter/battery charger
• Power Cable
• Spare Electrodes
• Carrying Case
• Cooling Tray
• Fusion Splice Protection Sleeves 500pcs
• 1 Year Warranty
* Built-in Universal Fiber Holder which can Splice 250μm fiber, 900μm fiber, flat cable, and fiber jumper. *
Tech1: 8800mAH high capacity replaceable battery to extend your productivity
Tech2: 6 Motors 3 Axle alignment make lower loss
Tech3: Reliability and Durability: Anti-Shock, Waterproof, Dustproof
* Ships in 24 Hours via Fedex express *
-- Come With Calibration Certificate and Test Report-- Come With 1-Year-Warranty
-- Come With 100pcs 60mm FPS Fusion Splice Protection Sleeves
Features:- One key automatic splicing save splice steps
- 9S splicing and 28S heating
- 310X magnification
- 3.7’’ High resolution color LCD
- 5000 splicing results storage
- 6 Motors 3 Axle alignment make lower loss
- 6-direction 30 inch drop proof
- 6 Motors 3 Axle alignment provide a high class performance
- Interchangeable universal holder
- SC compatible
- Brand new V groove design to make a faster and easier operation
- 8800mAH high capacity replaceable battery to extend your productivity
- Reliability and Durability: Anti-Shock, Waterproof, Dustproof
- Multi-function car charger to charge splicer and your digital device together
Specification:
Applicable Fibers | SM / MM / DS / NZDS / BIF & UBIF (G.657) |
Average Loss | 0.02dB(SM) / 0.01dB(MM) / 0.04dB(DS) / 0.04dB(NZDS) / 0.02dB(G.657) |
Return Loss | >60dB |
Operation Methods | Auto, Manual |
Typical Splicing Time | 9s |
Typical Heating Time | 28s |
Fiber Alignment | Core Alignment / Clad Alignment |
Fiber Diameter | Cladding: 80~150 um / Coating: 100~1000 um |
Cutting Length | 8~16mm(Fiber diameter: <250um) / 16mm(Fiber diameter: 250~1000um) |
Magnification | X or Y: 310X / X + Y: 155X |
LCD Display | High performance 3.7 inch. TFT LCD / 640x480 resolution |
Tension Test | 2N |
Applicable Sleeve | 60mm / 40mm / 20mm or etc. |
Battery Capacity | Average:200 cycles (Splicing and Heating) Charging time: 3 hours |
Battery Life Cycle | 300~500 charge / discharge cycles |
Electrode Life Cycle | Typical 3000 times |
Power | Removable battery : 11.1V 8800mAH AC/DC adapter: input:AC100-240V output:DC13.5V/5.0A |
Working Environments | Temp: -10C~+50C Humidity: 95%RH Elevation: 0~5000M |
Dimension | L×W×H=135×160×150(mm) |
Weight | 1.8 KGs (without battery), 2.3 KGs (with battery) |
2:

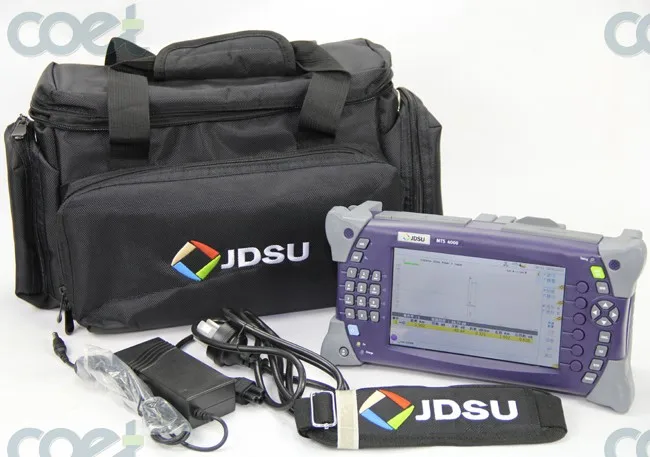

JDSU MTS-4000 E4126LA SM 1310/1550nm 35/33dB With FC/UPC Connector INCLUDES:
- 1310/1550nm 35/33dB, FC/UPC Connector
- 7-inch, outdoor-enhanced touchscreen – the biggest in
- the handheld industry
- 12-hour autonomy
- Dead zones: EDZ 1 m, ADZ 4 m
- Dynamic range of 35/33 dB
- Rugged design built for outside plant
* Ships in 24 Hours via Fedex express *
* Come with FC/UPC Adaptors *
* All Languages *
* Test Results Analysis softeware *
Brand new JDSU MTS-4000 Multiple Services Test Platform
MTS-4000 Multiple Services Test Platform
Modular handheld test solution for all-in-one Access/FTTx network and triple-play services installation and maintenance.
Description:
All-in-one Access/FTTx/Triple-Play Services Test Set
The MTS-4000 is a small, compact and handheld test platform designed for all phases of the network lifecycle, from the installation to the maintenance of Access/FTTx networks and triple-play services. Modular in design, the MTS-4000 offers field service technicians the highest performance and superior levels of scalability and upgradeability.
Highlights:
· Large 7-inch indoor/outdoor color display
· Cost-effective, compact and handheld platform
· Multi-layer network solution from physical to services layer
· Highly scalable with up to 2 field-replaceable modules
· Connection checker with VFL, power meter and video inspection scope options
· Flexible connectivity for fast data transfer: 2xUSB 2.0, up to 1 Gb/s Ethernet
Features:
· Lightweight platform: only 1.4kg/3 lbs
· Intuitive graphical user interface with touchscreen option
· Extended battery life using smart Lithium ion cell
· Scripting capability for automation, simplification and automatic data reporting
· Easy Internet access via installed web browser
· Remote control access allowing remote assistance from any expert user
· Integration of basic applications such as HTML and PDF reader
Comprehensive suite of PC software tools for post-processing of test results with FiberTrace (OFS-100) andFiberCable (OFS-200)
Applications:
· Fiber test applications include OTDR, PON meter, video inspection scope, laser source/power meter, and VFL
· Copper test applicationsinclude volt/ohm meter, time domain reflectometer (TDR), resistive fault locator, and wideband tones/spectal analysis to 30 MHz
· Triple-play service testing/IPTV and VoIP measurements from DSL access interfaces or standard Ethernet port
· VDSL and ADSL testingusing Technologies chipset and licensed option for Dr. DSL® diagnostic solutions from Aware, Inc.
General Technical Specifications (Typical at 25 °C) | |
Display | TFT color, 7-in, LCD 800 x 480, high visibility for outdoor |
Weight | 0.35 kg (0.77 lb) |
Dimensions(W x H x D) | 128 x 134 x 40 mm (5.04 x 5.28 x 1.58 in) |
Storage | Bellcore/Telcordia-compatible (Version 1.1 and Version 2.0) |
Optical interfaces | |
Applicable fiber | SMF 9/125 mm |
Interchangeable optical connectors | FC, SC, DIN, LC (PC or APC) and ST (PC) |
3: Mini Optical Power Meter + Mini Light Source + Visual Fault Locator INCLUDES:
- 1. Six wavelenghts Optical Power Meter for SM & MM
- 2. Dual Wavelengths 1310/1550nm Optical Light Source for SM
- 3. Pocket size Visual Fault Locator
- 1 Year Manufacturers Warranty
