Hurry! New FTTH Fusion Splicer KOMSHINE GX36 w/ FFC-33 Cleaver + 1310/1550nm 32/30dB KOMSHINE QX40 OTDR + Power Meter+Laser Source+VFL

Hurry! New FTTH Fusion Splicer KOMSHINE GX36 w/ FFC-33 Cleaver + 1310/1550nm 32/30dB KOMSHINE QX40 OTDR + Power Meter+Laser Source+VFL Rating: 3.3 out of 5

Popular Laser Choice Product provide 3d laser,laser flashlight,laser led,laser meter,laser pointer Hurry! New FTTH Fusion Splicer KOMSHINE GX36 w/ FFC-33 Cleaver + 1310/1550nm 32/30dB KOMSHINE QX40 OTDR + Power Meter+Laser Source+VFL. Price at this time US $2395.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in Fiber Optic Resale Corp Trusted Seller Store!

Excellent item can boost the quality of your life. Eligible to be bought. Affordable cost and free delivery. Allow's get Discount Hurry! New FTTH Fusion Splicer KOMSHINE GX36 w/ FFC-33 Cleaver + 1310/1550nm 32/30dB KOMSHINE QX40 OTDR + Power Meter+Laser Source+VFL prior to rates climb.

His/her service is very excellent and faster. Buy Promo Hurry! New FTTH Fusion Splicer KOMSHINE GX36 w/ FFC-33 Cleaver + 1310/1550nm 32/30dB KOMSHINE QX40 OTDR + Power Meter+Laser Source+VFL today, Shop Admin sent today too. If buying in bulk then there is a special price for you. This Limited Hurry! New FTTH Fusion Splicer KOMSHINE GX36 w/ FFC-33 Cleaver + 1310/1550nm 32/30dB KOMSHINE QX40 OTDR + Power Meter+Laser Source+VFL product is highly recommended for you.KoShine Optical Fiber OTDR equal to EXFO MAX-715B,JDSU MTS-2000,MTS-4000,YOKOGAWA AQ7275 OTDR Price

Ships in 24Hrs via TNT/DHL/Fedex, Get it Fast

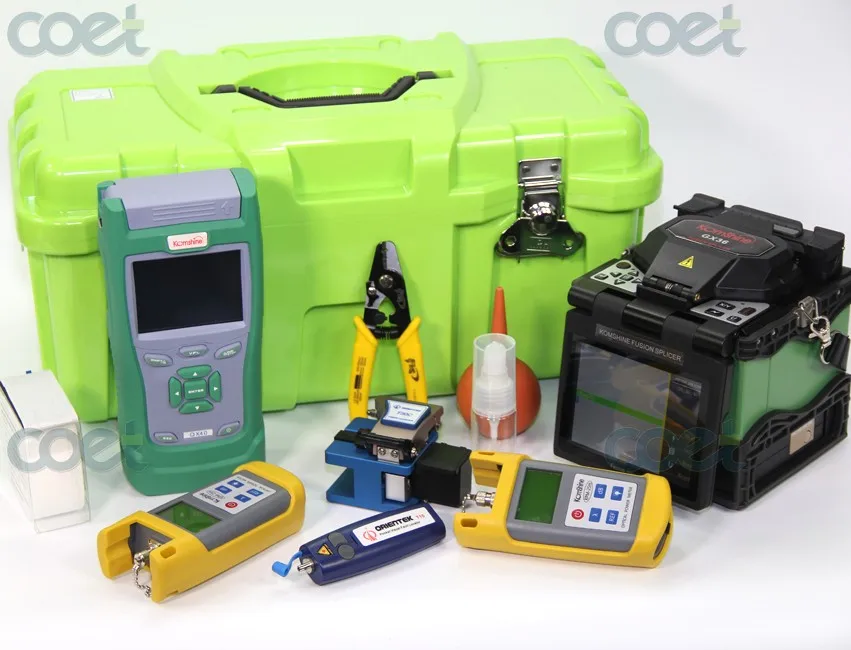

KOMSHINE GX36 Fusion Splicer Kit w/ Cleaver + KOMSHINE QX40 Dual Wavelength 1310/1550nm 32/30dB OTDR + Optical Power Meter + Optical Light Source + Visual Fault Locator




Brand New!

All the items come with 1-Year-Warranty

All the items come fully Calibrated



1: KOMSHINE GX36 FUSION SPLICER KIT INCLUDES:

• KOMSHINE GX36 Fusion Splicer

• High Precision KOMSHINE KFC-33 Cleaver integrated Scrap Catcher

• High Precision Fiber Stripper

• Battery Built-in

• AC Adapter/battery charger

• Power Cable

• Spare Electrodes

• Carrying Case

• Cooling Tray

• Fusion Splice Protection Sleeves 100pcs

• 1 Year Warranty

* Built-in Universal Fiber Holder which can Splice 250μm fiber, 900μm fiber, flat cable, and fiber jumper. *

Tech1: 8800mAH high capacity replaceable battery to extend your productivity

Tech2: 6 Motors 3 Axle alignment make lower loss

Tech3: Reliability and Durability: Anti-Shock, Waterproof, DustproofFeatures:

- One key automatic splicing save splice steps

- 9S splicing and 28S heating

- 310X magnification

- 3.7’’ High resolution color LCD

- 5000 splicing results storage

- 6 Motors 3 Axle alignment make lower loss

- 6-direction 30 inch drop proof

- 6 Motors 3 Axle alignment provide a high class performance

- Interchangeable universal holder

- SC compatible

- Brand new V groove design to make a faster and easier operation

- 8800mAH high capacity replaceable battery to extend your productivity

- Reliability and Durability: Anti-Shock, Waterproof, Dustproof

Specification:

Applicable Fibers

SM / MM / DS / NZDS / BIF & UBIF (G.657)

Average Loss

0.02dB(SM) / 0.01dB(MM) / 0.04dB(DS) / 0.04dB(NZDS) / 0.02dB(G.657)

Return Loss

>60dB

Operation Methods

Auto, Manual

Typical Splicing Time

9s

Typical Heating Time

28s

Fiber Alignment

Core Alignment / Clad Alignment

Fiber Diameter

Cladding: 80~150 um / Coating: 100~1000 um

Cutting Length

8~16mm(Fiber diameter: <250um) / 16mm(Fiber diameter: 250~1000um)

Magnification

X or Y: 310X / X + Y: 155X

LCD Display

High performance 3.7 inch. TFT LCD / 640x480 resolution

Tension Test

2N

Applicable Sleeve

60mm / 40mm / 20mm or etc.

Battery Capacity

Average:200 cycles (Splicing and Heating)

Charging time: 3 hours

Battery Life Cycle

300~500 charge / discharge cycles

Electrode Life Cycle

Typical 3000 times

Power

Removable battery : 11.1V 8800mAH

AC/DC adapter: input:AC100-240V

output:DC13.5V/5.0A

Working Environments

Temp: -10C~+50C

Humidity: 95%RH

Elevation: 0~5000M

Dimension

L×W×H=135×160×150(mm)

Weight

1.8 KGs (without battery), 2.3 KGs (with battery)

2: KOMSHINE QX40 Dual Wavelength 1310/1550nm 32/30dB SM OTDR With FC/UPC Connectors INCLUDES:

  • 1310/1550nm 30/28dB
  • 4-inch, outdoor-enhanced touchscreen – the biggest in
  • the handheld industry
  • 12-hour autonom
  • Rugged design built for outside plant


* Color Display with Touch Screen *

* Ships in 24 Hours via Fedex express *

* Come with FC Adaptors *

* English Languages *

* Test Results Analysis Softeware *

Features:

  • Applicable fiber: SM
  • <8m extra-short event dead zon
  • Wavelength: 1310/1550nm
  • Up to 32/30dB High Dynamic Range
  • Distance Range: 4,8,16,32,64,128,256km
  • Pulse with: 10,30,80,160,320,640,1280,5120,1024ns
  • 3.5 inch TFT-LCD (touch screen)
  • USB interfaces, supporting USB stick and printer and direct cable download to PC via ActiveSync
  • Memory capacity >800 traces
  • Built-in lithium battery with high capacity for over 8 hours of operating life
  • Display: Color LCD
  • One year Warrant

Specifications:

Model =QX40
Wavelength(nm)=1310/1550
Dynamic range(dB)=32/30
Pulse width (ns)=5,20,40,80,160,320,640,1280,2560,5120,10240,20480
Display3.5 inch TFT LCD touch screen
Event blind zone (m)=8
Attenuation blind zone (m) =10
Linearity (dB/dB)=±0.05 dB/ dB
Loss threshold (dB)=0.05
Loss resolution ratio (dB) = 0.01
Sampling resolution ratio (m)= 0.125 to 8
Sampling point=32k
Distance uncertainty (m)=±(1 m + 5×10-5× distance + sampling interval)
Distance scope (km)=0.3 to180
Memory capacity of trace=SD Card (4G), > 10000 pieces
Duration of measurement =Defined by user; 5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min are selectable
Optical interface= FC/UPC
Data interface=USB interface, SD card interface
Visual Fault Locator=Available
Power supply=Lithium battery; continuing working duration ≥ 8 hours
Warranty period=12 months

Standard Package:

QX40 OTDR

FC UPC Connectors

SM Fiber Optic Patch Cord FC-SC 1M

Testing & Calibration Report

AC/DC adapter

Quality certification

Trace analyzing software(CD)

Internal Battery

User Manual

Carrying Case

3: Mini Optical Power Meter + Mini Light Source + Visual Fault Locator INCLUDES:

- 1. Six wavelenghts Optical Power Meter for SM & MM
- 2. Dual Wavelengths 1310/1550nm Optical Light Source for SM

- 3. Pocket size Visual Fault Locator
- 1 Year Manufacturers Warranty
