Popular Laser Choice Product provide 3d laser,laser flashlight,laser led,laser meter,laser pointer Cool Flash Deal FTTH Fusion Splicing Machine KOMSHINE GX36 w/ KF-52 Cleaver+QX50-S SM1310/1550 nm 30dB OTDR+Optic Power Meter+Laser Source+VFL. Price at this time US $2680.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in Fiber Optic Resale Corp Trusted Seller Store!
Fantastic item could enhance the top quality of your life. Eligible to be purchased. Low-cost cost and also free delivery. Allow's buy prior to rates climb.
Take a look at our to obtain the very best products you desire. You can read detail information regarding this goods below. Check out our Clearance Cool Flash Deal FTTH Fusion Splicing Machine KOMSHINE GX36 w/ KF-52 Cleaver+QX50-S SM1310/1550 nm 30dB OTDR+Optic Power Meter+Laser Source+VFL review to obtain the excellent goodss you favor. You could review detail info regarding this product below. New Cool Flash Deal FTTH Fusion Splicing Machine KOMSHINE GX36 w/ KF-52 Cleaver+QX50-S SM1310/1550 nm 30dB OTDR+Optic Power Meter+Laser Source+VFL goods prices as well as accessibility are precise as of the date/time suggested and undergo transform. Any type of cost and availability information displayed on this site at the time of acquisition will use to the acquisition of this product.

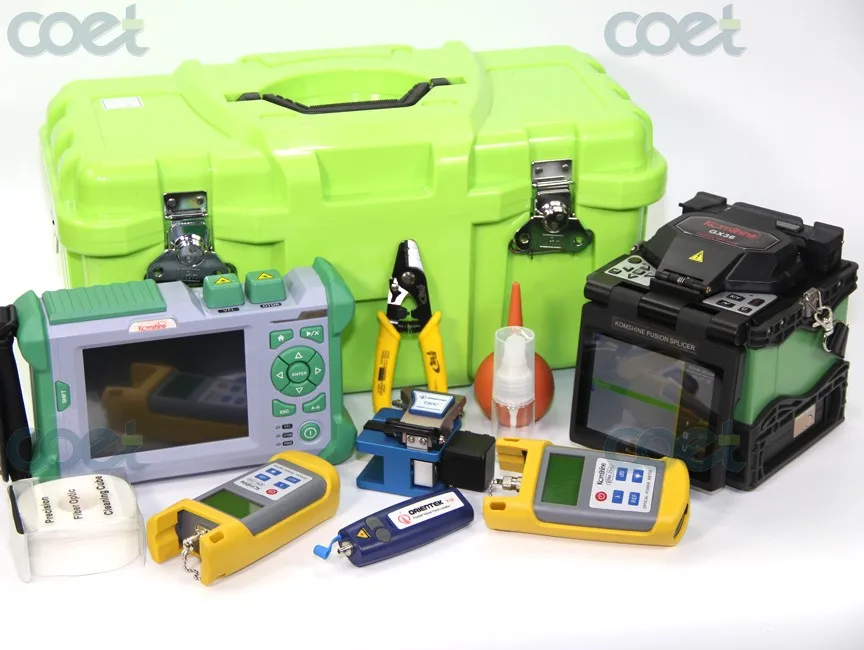

GoodKomShine GX36 Fusion Splicer Kit w/ KFC-33 Fiber Cleaver
Q50-S SM 1310/1550nm 32/30dB OTDR
Optical Power Meter + Optical Light Source + Visual Fault Locator
1: KOMSHINE GX36 FUSION SPLICER KIT INCLUDES:
- Shake Proof, Dust Proof and Water Proof
- Average Splicing Loss: 0.02dB
- Splice 0.25mm/0.9mm/3.0mm/ Flat cable
- Electrode Life: 4,000 times splicing
2.KOMSHINE QX50 SM 1310/1550nm 32/30dB OTDR With FC/UPC+SC/UPC+LC/UPC Connectors:
Specifications:
| Model | = | QX50-S |
| Wavelength(nm) | = | 1310/1550 |
| Dynamic range(dB) | = | 32/30 |
| Pulse width (ns) | = | 5, 20 ,40,80, 160, 320 ,640,1280, 2560 ,5120,10240 ,20480 |
| Display | 6.5 inch TFT LCD touch screen | |
| Event blind zone (m) | = | 1.8 |
| Attenuation blind zone (m) | = | 9 |
| Linearity (dB/dB) | = | ±0.05 dB/ dB |
| Loss threshold (dB) | = | 0.05 |
| Loss resolution ratio (dB) | = | 0.001 |
| Sampling resolution ratio (m) | = | 0.125 to 8 |
| Sampling point | = | 32k |
| Distance uncertainty (m) | = | ±(1 m + 5×10-5× distance + sampling interval) |
| Distance scope (km) | = | 0.3 to180 |
| Memory capacity of trace | = | SD Card (4G), > 10000 pieces |
| Duration of measurement | = | Defined by user; 5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min are selectable |
| Optical interface | = | FC/UPC+SC/UPC+LC/UPC |
| Data interface | = | USB interface, SD card interface |
| Visual Fault Locator | = | Available |
| Power supply | = | Lithium battery; continuing working duration ≥ 8 hours |
| Warranty period | = | 12 months |
3: Mini Optical Power Meter + Mini Light Source + Visual Fault Locator INCLUDES
- 1. Six wavelenghts Optical Power Meter for SM & MM
- 2. Dual Wavelengths 1310/1550nm Optical Light Source for SM
- 3. Pocket size Visual Fault Locator
- 1 Year Manufacturers Warranty
Return Policy
If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
Seller Service
On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).Cool Flash Deal FTTH Fusion Splicing Machine KOMSHINE GX36 w/ KF-52 Cleaver+QX50-S SM1310/1550 nm 30dB OTDR+Optic Power Meter+Laser Source+VFL
