2018 Clearance KOMSHINE GX36 FTTH Fusion Splicer Kit w/fiber Cleaver+QX30 SM 1550 nm 30dB OTDR+Optic Power Meter+Laser Source+VFL

2018 Clearance KOMSHINE GX36 FTTH Fusion Splicer Kit w/fiber Cleaver+QX30 SM 1550 nm 30dB OTDR+Optic Power Meter+Laser Source+VFL Rating: 4.0 out of 5

Popular Laser Choice Product provide 3d laser,laser flashlight,laser led,laser meter,laser pointer 2018 Clearance KOMSHINE GX36 FTTH Fusion Splicer Kit w/fiber Cleaver+QX30 SM 1550 nm 30dB OTDR+Optic Power Meter+Laser Source+VFL. Price at this time US $2165.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in Trusted Seller Store!

Wonderful item can boost the quality of your life. Qualified to be acquired. Affordable price and also complimentary shipping. Allow's get before costs rise.

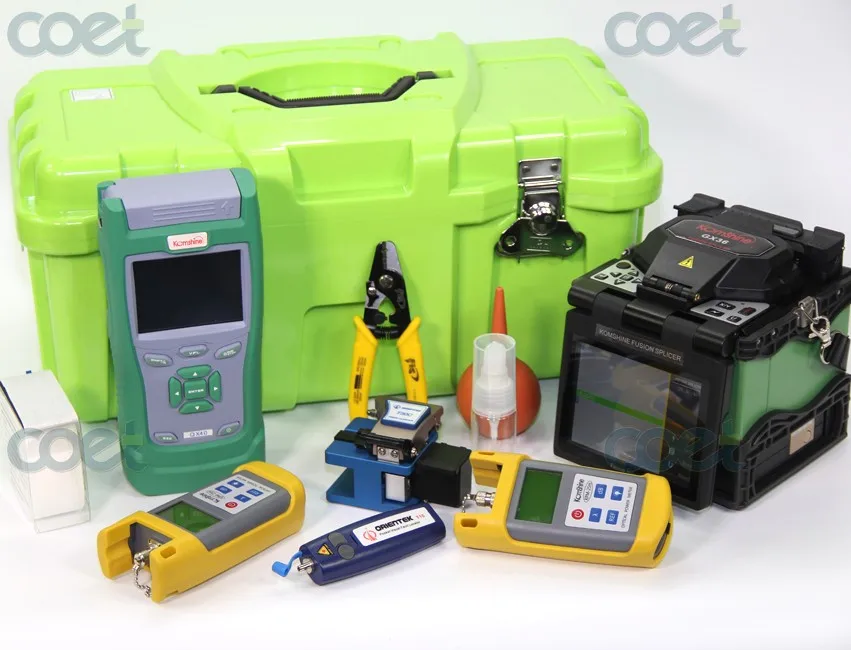

KOMSHINE GX36 Fusion Splicer +KOMSHINE KFC-33 fiber Cleaver+QX30 SM1550 nm 30dB OTDR+Optic Power Meter+Laser Source+VFL

*All the items come with 1-Year-Warranty*

*All the items come fully Calibrated*

1: KOMSHINE GX36 FUSION SPLICER KIT INCLUDES:

Specification :

Applicable Fibers

SM / MM / DS / NZDS / BIF & UBIF (G.657)

Average Loss

0.02dB(SM) / 0.01dB(MM) / 0.04dB(DS) / 0.04dB(NZDS) / 0.02dB(G.657)

Return Loss

>60dB

Operation Methods

Auto, Manual

Typical Splicing Time

9s

Typical Heating Time

28s

Fiber Alignment

Core Alignment / Clad Alignment

Fiber Diameter

Cladding: 80~150 um / Coating: 100~1000 um

Cutting Length

8~16mm(Fiber diameter: <250um) / 16mm(Fiber diameter: 250~1000um)

Magnification

X or Y: 310X / X + Y: 155X

LCD Display

High performance 3.7 inch. TFT LCD / 640x480 resolution

Tension Test

2N

Applicable Sleeve

60mm / 40mm / 20mm or etc.

Battery Capacity

Average:200 cycles (Splicing and Heating)

Charging time: 3 hours

Battery Life Cycle

300~500 charge / discharge cycles

Electrode Life Cycle

Typical 3000 times

Power

Removable battery : 11.1V 8800mAH

AC/DC adapter: input:AC100-240V

output:DC13.5V/5.0A

Working Environments

Temp: -10C~+50C

Humidity: 95%RH

Elevation: 0~5000M

Dimension

L×W×H=135×160×150(mm)

Weight

1.8 KGs (without battery), 2.3 KGs (with battery)

2.KOMSHINE QX30 SM 1550nm 30dB OTDR With FC/UPC+SC

/UPC+LC/UPC Connectors:

Specifications:

Model = QX30
Wavelength(nm) = 1550
Dynamic range(dB) = 30
Pulse width (ns) = 5,20,40,80,160,320,640,1280,2560,5120,10240,20480
Display 3.5 inch TFT LCD touch screen
Event blind zone (m) = 8
Attenuation blind zone (m) = 10
Linearity (dB/dB) = ±0.05 dB/ dB
Loss threshold (dB) = 0.05
Loss resolution ratio (dB) = 0.01
Sampling resolution ratio (m) = 0.125 to 8
Sampling point = 32k
Distance uncertainty (m) = ±(1 m + 5×10-5× distance + sampling interval)
Distance scope (km) = 0.3 to180
Memory capacity of trace = SD Card (4G), > 10000 pieces
Duration of measurement = Defined by user; 5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min are selectable
Optical interface = FC/UPC+SC/UPC+LC/UPC
Data interface = USB interface, SD card interface
Visual Fault Locator = NON
Power supply = Lithium battery; continuing working duration ≥ 8 hours
Warranty period = 12 months

3: Mini Optical Power Meter + Mini Light Source + Visual Fault

Locator INCLUDES:

- 1. Six wavelenghts Optical Power Meter for SM & MM
- 2. Dual Wavelengths 1310/1550nm Optical Light Source for SM
- 3. Pocket size Visual Fault Locator
- 1 Year Manufacturers Warranty

NOTICE:

1. Buyer is responsible for the custom duty and local import taxes;

2. Important!!! Dear Brazil customer, please leave your CPF or CNPJ number after

placing the order.

3. Ordering more than 10 sets: contact me to get a huge discount!!! Fusion Splicer JILONG KL-280G Core-Core Komshine GX36 FTTH Optical Fiber Fusion Splicer Komshine GX36 Fiber Splicer Optical Fiber Fusion Splicer KOMSHINE FX35 KomShine KLT-25M-F Practical Fibra Otica Loss Tester KomShine KFH-13 FTTH Fiber Optic Tool Kit KomShine KQX-30 Fiber Optic Tool kit

Shippment

1. Orders processed timely after the payment verification.

2. To help buyers reduce or avoid customs tax, we will write "Gift or Sample" If needed, we can also help declare low value on invoice for you to pay lower tax in your country ,if you have any suggestion, please leave a note in order.

3. Customs Tax should be paid by buyer, Seller can not support and Customs Tax.

Payment

Return Policy

If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.
N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.

Seller Service

On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).
