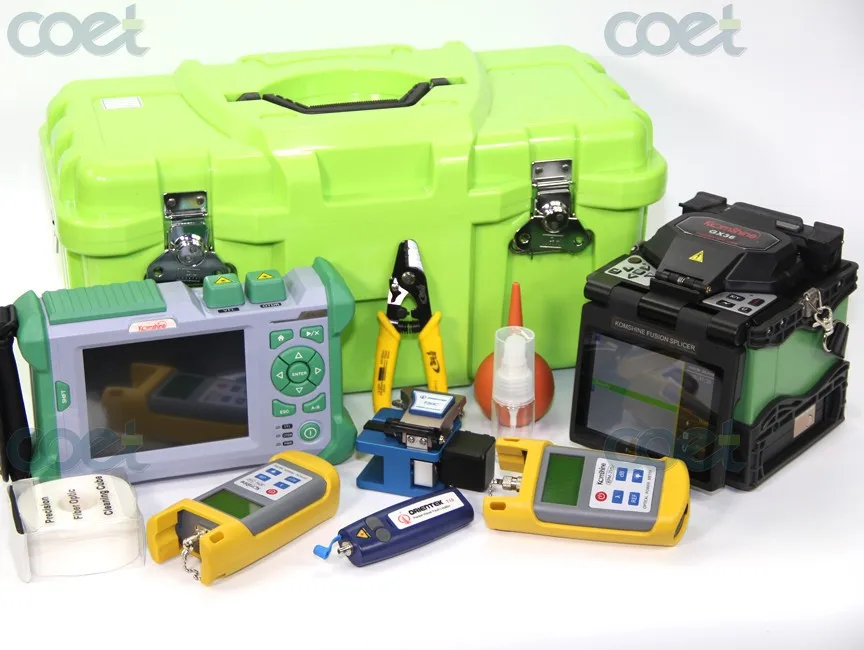

Popular Laser Choice Product provide 3d laser,laser flashlight,laser led,laser meter,laser pointer Fast Limited KOMSHINE GX36 FTTH Fusion Splicer Kit w/ Fiber Cleaver+QX50-S SM 1310/1550 nm 30dB OTDR +Optic Power Meter+Laser Source+VFL. Price at this time US $2469.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in Trusted Seller Store!
As an item that aids your needs to get comfort, of training course this goods is really fascinating to obtain. You do not require to look for services to cleanse up your bought products, simply do it on your own at home making use of the guidelines that have actually been offered. This easy and also elegant style is best for those of you that enjoy the minimal design in every goods you have.
KomShine GX36Fusion Splicer Kit w/ KFC-33 Fiber Cleaver+Q50-S
SM 1310/1550nm 32/30dB OTDR + Optical Power Meter + Optical
LightSource + Visual Fault Locator
*All the items come with 1-Year-Warranty*
*All the items come fully Calibrated*

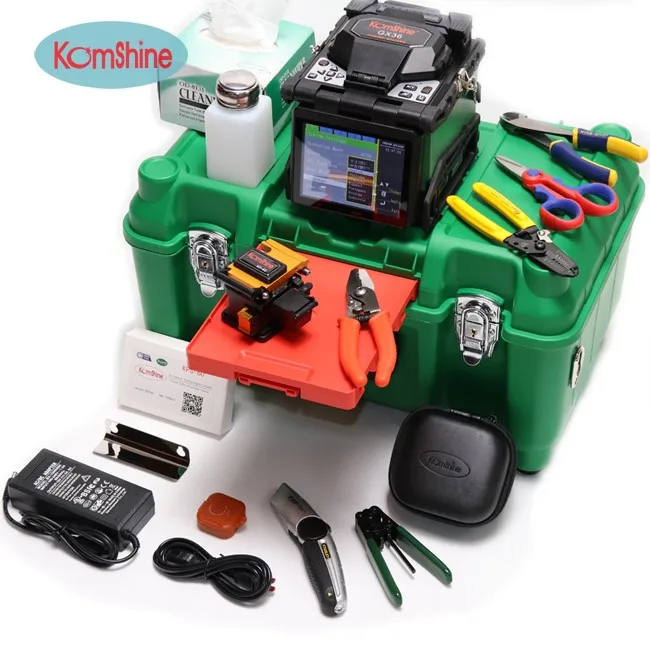

1. Komshine GX36 Fusion Splicer Kit including:
• GX36 Fusion Splicer
• High Precision Sumotomo FC-6S Cleaver
• High Precision Fiber Stripper
• Battery Built-in
• AC Adapter/battery charger
• Power Cable
• Spare Electrodes
• Carrying Case
• Cooling Tray
• Fusion Splicer Protection Sleeves 500pcs
• 1 Year Warranty
Specifications:
| Applicable Fibers | SM / MM / DS / NZDS / BIF & UBIF (G.657) |
| Average Loss | 0.02dB(SM) / 0.01dB(MM) / 0.04dB(DS) / 0.04dB(NZDS) / 0.02dB(G.657) |
| Return Loss | >60dB |
| Operation Methods | Auto, Manual |
| Typical Splicing Time | 9s |
| Typical Heating Time | 28s |
| Fiber Alignment | Core Alignment / Clad Alignment |
| Fiber Diameter | Cladding: 80~150 um / Coating: 100~1000 um |
| Cutting Length | 8~16mm(Fiber diameter: <250um) / 16mm(Fiber diameter: 250~1000um) |
| Magnification | X or Y: 310X / X + Y: 155X |
| LCD Display | High performance 3.7 inch. TFT LCD / 640x480 resolution |
| Tension Test | 2N |
| Applicable Sleeve | 60mm / 40mm / 20mm or etc. |
| Battery Capacity | Average:200 cycles (Splicing and Heating) Charging time: 3 hours |
| Battery Life Cycle | 300~500 charge / discharge cycles |
| Electrode Life Cycle | Typical 3000 times |
| Power | Removable battery : 11.1V 8800mAH AC/DC adapter: input:AC100-240V output:DC13.5V/5.0A |
| Working Environments | Temp: -10C~+50C Humidity: 95%RH Elevation: 0~5000M |
| Dimension | L×W×H=135×160×150(mm) |
| Weight | 1.8 KGs (without battery), 2.3 KGs (with battery) |

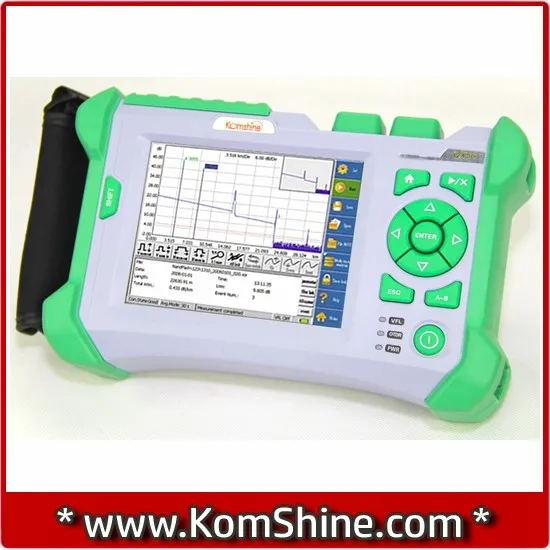

2.KOMSHINE QX50-S SM 1310/1550nm 32/30dB OTDR With FC/UPC+SC/UPC+LC/UPC Connectors:
* Come with FC+SC+LC Adaptors *
* English + Spanish Languages *
* Test Results Analysis softeware *
Features
- Applicable fiber: Networks with PLC Splitters
- <3m extra-short event dead zon
- Wavelength: 850/1300nm
-
Up to 32/30dB High Dynamic Range
- Distance Range: 4,8,16,32,64,128,256km
- Pulse with: 10,30,80,160,320,640,1280,5120,1024ns
- 640×480, 6.5 inch TFT-LCD (touch screen)
- USB interfaces, supporting USB stick and printer and direct cable download to PC via ActiveSync
- Memory capacity >800 traces
- Built-in lithium battery with high capacity for over 8 hours of operating life
- Display: Color LCD
- One year Warranty
-
Specifications:
Model = QX50-S Wavelength(nm) = 1310/1550 Dynamic range(dB) = 32/30 Pulse width (ns) = 5,20,40,80,160,320,640,1280,2560,5120,10240,20480 Display 6.5 inch TFT LCD touch screen Event blind zone (m) = 3 Attenuation blind zone (m) = 13 Linearity (dB/dB) = ±0.05 dB/ dB Loss threshold (dB) = 0.05 Loss resolution ratio (dB) = 0.01 Sampling resolution ratio (m) = 0.125 to 8 Sampling point = 32k Distance uncertainty (m) = ±(1 m + 5×10-5× distance + sampling interval) Distance scope (km) = 0.3 to180 Memory capacity of trace = SD Card (4G), > 10000 pieces Duration of measurement = Defined by user; 5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min are selectable Optical interface = FC/UPC+SC/UPC+LC/UPC Data interface = USB interface, SD card interface Visual Fault Locator = Available Power supply = Lithium battery; continuing working duration ≥ 8 hours Warranty period = 12 months Standard Package:
QX50 OTDR
FC+SC+LC UPC Connectors
SM Fiber Optic Patch Cord FC-SC 1M
Testing & Calibration Report
AC/DC adapter
Quality certification
Trace analyzing software(CD)
Internal Battery
User Manual
Carrying Case
1. Buyer is responsible for the custom duty and local import taxes;
2. Important!!! Dear Brazil customer, please leave your CPF or CNPJ number after
placing the order.
3. Ordering more than 10 sets: contact me to get a huge discount!!!
Recommend Products:
Shippment
1. Orders processed timely after the payment verification.
2. To help buyers reduce or avoid customs tax, we will write "Gift or Sample" If needed, we can also help declare low value on invoice for you to pay lower tax in your country ,if you have any suggestion, please leave a note in order.
3. Customs Tax should be paid by buyer, Seller can not support and Customs Tax.
Payment
1. We accept Alipay, Western Union and T/T. All major credit cards are accepted through secure payment processor ESCROW.
Feedback
We appreciate 5-stars positive feedback, its good for our longterm business,More importantly, the true evaluation could help many buyers and enhance the credibility of honest seller.
Return Policy
If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
Seller Service
On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).Fast Limited KOMSHINE GX36 FTTH Fusion Splicer Kit w/ Fiber Cleaver+QX50-S SM 1310/1550 nm 30dB OTDR +Optic Power Meter+Laser Source+VFL
