Super Promo 220V 50Hz 80w Laser Power Supply Co2 For Co2 Laser Cutting Machine

Super Promo 220V 50Hz 80w Laser Power Supply Co2 For Co2 Laser Cutting Machine Rating: 5 out of 5

Laser Machine Best Choice Product provide laser cnc,laser engraving machine,laser machine,laser printer,laser wood machine Super Promo 220V 50Hz 80w Laser Power Supply Co2 For Co2 Laser Cutting Machine. Price at this time US $130.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in Mactron Laser Parts Store Trusted Seller Store!
The goods is nice and easy to use. The retail price is affordable and provides the best quality. Produce glorious you buy through this store. Receive the best price and excellent discount because of this product.220V 50Hz 80w Laser Power Supply

110V, 50/60Hz power supply is avaliable , please leave message to us when you order.

Mactron Brand High Quality Laser Power Supply 80W adopts high quality components for major parts to avoid the error in future and strengthen lifetime. 60 watts laser power source was widely used to 40W – 70W CO2 laser tube, the main advantage is high frequency, response quickly, less volume, less weight, easy operation, complete protecting function, very good compatibility and effectively protect laser tube and laser power supply lifetime.

1. The Main Feature of 80W Laser Power Supply CO2:

1) Stable performance:

Each power supply have been much more rigorous testing procedures, under full load high temperature (52~55 degrees celsius) 24 hours of aging, to ensure the stability of each power supply.

2) Good compatibility:

can adapt to a number of manufacturers of 60W, 50W, 40WCO2 laser tube also has a strong adaptability and fast response, engraving, cutting advantages of good effect.

3) Control is simple:

Select high or low level control, the use of TTL-level control of the laser can start and stop. At the same time increase the protection switch, testing is through the external water and ventilation.

Laser power control is simple, you can use 0 ~ 5V analog signal control the size of the laser power, you can also use the PWM (pulse width modulation) signal to be controlled.

4) Protection function:

Power supply itself has open circuit protection, a good grounding in the case of protection, the power supply to short-term work in the open state, so to avoid the laser tube burst due to the damage caused by laser power supply, thereby enhancing the laser power supply of life.

5) Special Features: (optional addition):

Power users do not need to open the shell, you can simply determine the laser power is working to distinguish between the failure of laser tube or power supply failure.

2. Specification of 80W Laser Power Supply CO2 :

Model Parameters

80W CO2 Laser Power Supply

Input

Input Voltage

AC220V+/-10% (Need AC110V products,

ordering need indicate)

AC frequency

47 - 440HZ

Cold-state Surge Current

≤60A(AC220V input)

≤30A(AC110V input)

Leakage current

≤0.7mA(AC220V input)

≤0.4mA(AC110V input)

Output

Maximum output voltage

DC40KV

Maximum output current

DC31mA(depending on the laser tubes

of different manufacturers)

Efficiency

≥90%(Full load)

Response speed

≤ 1ms

Control Interface

TTL multilevel switching control, effective level can be high and low selection (see control wiring diagram)

Insulation

Input--output

AC 1500V 1 minutes ≤10 mA

Input--shell

AC 1500V 1 minutes ≤10 mA

Output--shell

Connection

Insulation Resistance

≥50MΩ(DC500V)

Environmental Requested

Working temperature

-10 - 50 degrees centigrade

Storage of temperature

-20 - 75 degrees centigrade

Relative Humidity

Maximum 85% RH (non-condensing)

Altitude

100,000 feet of work200,000 feet of storage, does not work

Cooling methods

Forced air cooling (fan cooling

Dimensions (L*W*H)

285mm*190mm*95mm

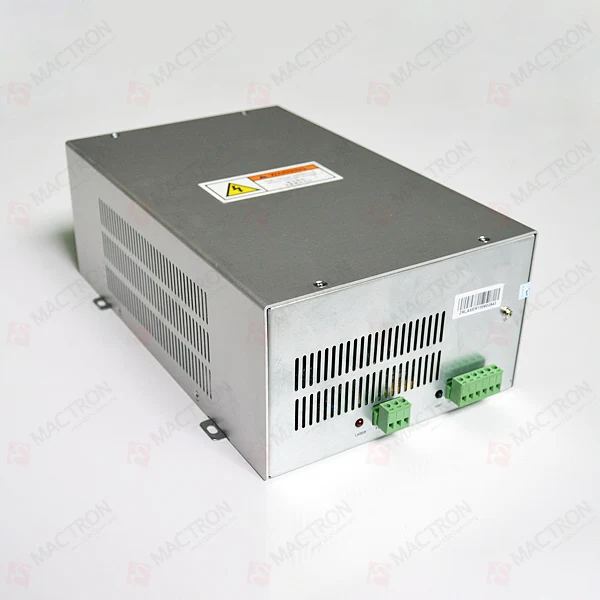

3. Photos of 80W Laser Power Supply CO2 for Laser Cutting Machine :
