16mm Beam Spot Laser Galvanometer Scanner for RF Metal Tube Co2 Laser Marking Machine

A whole co2 laser marking head (or called laser scanner) consists of two scan mirrors, two galvanometers (or called galvo-scanner motor) & drive cards, a XY mount, an interface card (or called D/A card), a DC power supply.

Application: used for laser deflection and two-dimensional localization projects, mainly used in industrial laser material processing field, common applicationsinclude marking, engraving, cutting, drilling, welding, molding, etc

Features: High speed scanning, precise positioning, stable performance

Advantage:

1) The most cost-effective high speed galvanometer scanner.

2) The input aperture is 16 mm.

3) It has a superior performance of zero drift, higher speed, smaller size, and stronger anti-interference.

1. Specification

Motor Specification:

Working Temperature	0-45°C
Linearity	99.9%
Setting Time	≤ 0.7ms
Scale Drift	< 40PPM/°C
Zero Drift	< 15μRad./°C
Long-term Drift Over 8 Hours	< 0.5mRad
RMS Current	6A
Peak Current	20A(Max)
Maximum Scan Angle	±15°
Storage Temperature	-10 to +60°C
Resolution	12μrad
Repeatability	8μrad
Input Aperture	16mm
Beam Displacement	21.4mm
Motor Weight	280g
Frequency	≤500Hz

Servo Driver Board Specification:

Input Voltage		±24VDC
Interface Signals	Digital	XY2-100
	Analog	±5V, ±10V
Analog Signal Input Resistance		200K±1% Ω
Position Signal Input Resistance		1K±1% Ω
Position Signal Input Scale Factor		0.5V/°
Position Signal Output Scale Factor		0.5V/°
Working Temperature		0-45°C
Dimension(L×W×H)		90×64×34mm

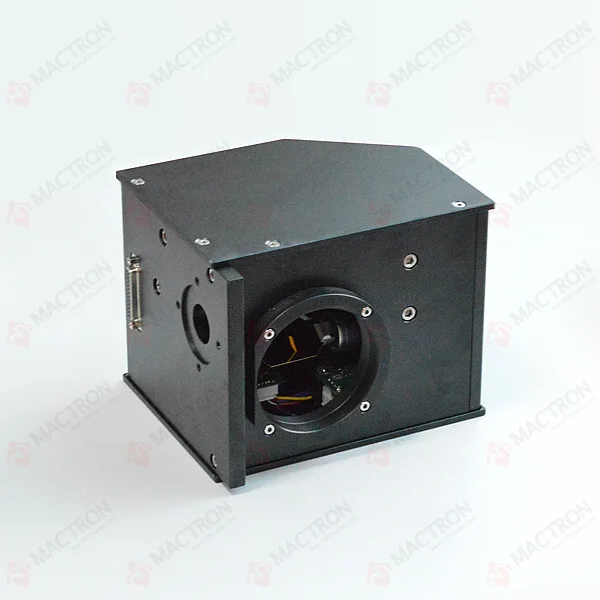

2. Photo Image of CO2 Glavonometer High Speed Scanner :
