Laser Machine Best Choice Product provide laser cnc,laser engraving machine,laser machine,laser printer,laser wood machine Excellent Sale 12V Switching Power Supply for Laser Machine. Price at this time US $35.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in Mactron Laser Parts Store Trusted Seller Store!
Great Limited Excellent Sale 12V Switching Power Supply for Laser Machine product can boost the quality of your life. Qualified to be bought. Low-cost rate and also cost-free delivery. Allow's get Promo Excellent Sale 12V Switching Power Supply for Laser Machine prior to rates climb.
Since this product has top quality it is amongst the most effective sellers on the market currently as well as lots of people are suggesting this Excellent Sale 12V Switching Power Supply for Laser Machine product to their friends and family.12V Switching Power Supply for Laser Machine5V,12V,24V,36V,48V Switching Power Supply is used to Laser Stepper Motor and Driver and laser control card etc. As Laser Machine Parts, this DC Switch Power Supply is very important laser accessories for Laser Cutting and Engraving Systems.
Protection: Over load, over voltage, short circuit,Over temperature.
1.Features:
| Model | MT-5V | MT-12V | MT-24V | MT-36V |
| DC output voltage | 5V | 12V | 24V | 36V |
| Output voltage error (Note2) | ± 2% | ± 1% | ± 1% | ± 1% |
| Rated output current | 10A | 4.2A | 2.1A | 1.4A |
| Output current rage | 0-10A | 0-4.2A | 0-3.4A | 0-2.1A |
| Wave and noise(Note3) | 100mVp-p | 120mVp-p | 120mVp-p | 150mVp-p |
| Inlet stability(Note4) | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% |
| Load stability(Note5) | ± 1% | ± 0.5% | ± 0.5% | ± 0.5% |
| DC output power | 50W | 50.4W | 50.4W | 50.4W |
| Efficiency | 71% | 78% | 78% | 82% |
| Adjustable range for DC voltage | -9%~+10% | ± 10% | ± 10% | ± 10% |
| AC input voltage range | 85-132VAC/170-264VAC selected by switch | AC input voltage range | ||
| Input current | 1.3A/115V 0.65A/230V | Input current | ||
| AC impulse current | Cold-start current 18A/115V 36A/230V | AC impulse current | ||
| Leakage current | < 0.5mA/240VAC | Leakage current | ||
| Overload protection | 105-150%Type told back Reset: auto recovery | Overload protection | ||
| Over-voltage protection | 105 ~ 135% rated output power | Over-voltage protection | ||
| Temperature coefficient | ± 0.03%(0-50) | Temperature coefficient | ||
| Setup rise hold up time | 200ms, 100ms, 30ms | Setup rise hold up time | ||
| Vibration | 10-500Hz, 2.10min./ 1cycle, period for 60min/ each axes | Vibration | ||
| Withstand voltage | Input and output interval 1.5KVAC, Input and enclosure1.5KVAC, output and enclosure 0.5KVAC | Withstand voltage | ||
| Isolation resistance | Input and output interval, Input and enclosure, Output and enclosure 0500VAC/100M Ohms | Isolation resistance | ||
| Working temperature and humidity | -10∼ +60, 20%∼ 90%RH | Working temperature and humidity | ||
| Store temperature and humidity | -20∼ +85, 10%∼ 95RH | Store temperature and humidity | ||
| Overall dimension | 159*97*38mm | Overall dimension | ||
| Weight | 0.5Kgs | Weight | ||
| Safety standards | Meet UL1012 | Safety standards | ||
| Note: 1. The testing condition for the parameter above is: 230VAC input, rated load, 25 70%Rh, Humidity 2. Error, include the setting error, line stability and load stability. (Note: 5) 3. Wave test: adoptingA12double wire for 20MHz, and 0.1uF& uF capacitor short-circuit for interrupting 4. Inlet voltage stability test: when is over load, the lowest voltage of inlet is representative to the highest voltage. 5. Load stability test: The load is from 0% to 100%, others 60%. 6. C2311must be knocked down. | ||||

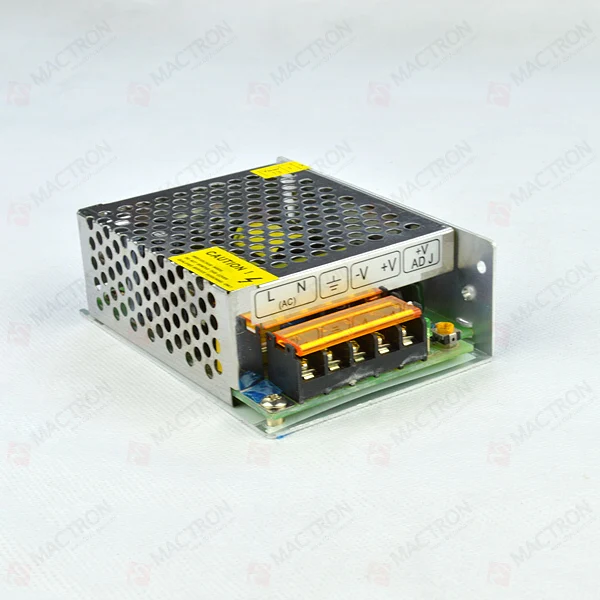

2. Photo Image :
3. About us:
1) Quality
Mactron Technology Co,.ltd has passed ISO9001/2000 quality certificationhe. All of our products have CE Certificate, FDA Certificate and RoHS Certificate.
2) Price
Striving to improve efficiency and reduce costs, we have absolute predominance in price by selling products directly to end users on Aliexpress as a manufacture .
3) Service
For international custmer, we provide professional technician support on all our products by Trademanager whine 24 hours. Any problems about products, we will provide the step by step instruction for you.
4) Warranty&Return
We are happy to replace or refund money and aim to resolve issues quickly to meet your satisfaction.If goods arrive defective or damaged, you have 7 days from date of receipt to contact us. Please kindly provide evidence to us. Such as picture,video and documents.We will replace you a new one or refund you full money!
5) Shipping
With professional packing to avoid the damage, We have posted many products to worldwide safe and sound, including USA, Europe, Eastern Europe, South America, Middle East and so on. once receiving payment, we post the goods and provide the airway bill number for on-line tracking within 24 hours, including the weekend.
6) Feedback
Your satisfication and positive feedbck is very important to us. If you satisfy with our products and service, please kindly leave us 5 Star. If you have problems, please kindly contact us before leave any negative feedback, we would like to try best solve any problems for you!
Return Policy
If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
Seller Service
On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).Excellent Sale 12V Switching Power Supply for Laser Machine
