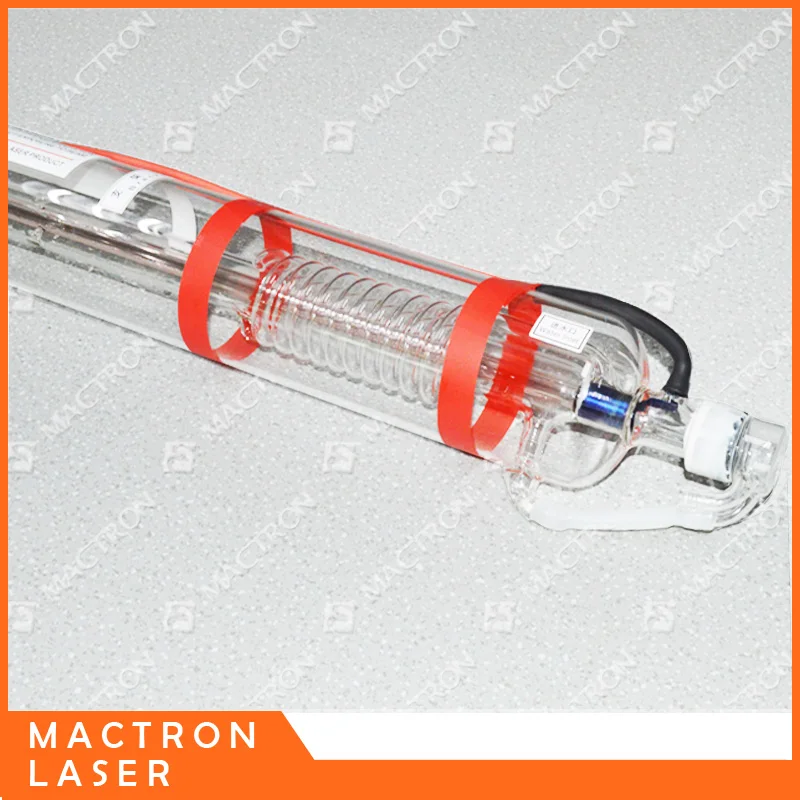

Laser Machine Best Choice Product provide laser cnc,laser engraving machine,laser machine,laser printer,laser wood machine Fast Clearance 1650mm Co2 Laser Tube 130w EFR 130W Laser Tube for Laser Machine. Price at this time US $650.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in Mactron Laser Parts Store Trusted Seller Store!
Feature
F Series CO2 Laser Tube is launched in October 2011 with 3 years development, its’ working life is up to 6000hours, the single tube power is up to 180W. The laser output is stable. The discharge tube is catalyst coated, the working life is much increased. Compared to similar product, the tube body length is shorter, the laser beam mode is better, the cutting speed is higher.
1. Stability: the discharge glass tube body is imported from Germany. The laser beam mode is up to TEM00. The power is table. It is competitive for industrial application.
2. Power: The power is 30% higher than other laser tube with same length.
3. Long Life: the catalyst coating on discharge tube with unique electrode processing makes the laser out put is more stable, avoid power weaken during long time working.
Quality Promise
Working Life: up to 6000 Hours
Warranty: 300 Days
1. Within 150 days from exit works date on the label, we replace free of charge if the power is less than 80% of rated power while the users operate according to our manual. The replaced laser tube will have same warranty as new ones. The single transportation freight will be afforded by buyer. When the laser tube structure is damaged or changed, we will not be responsible.
2. Form 151st days to the 300th days from exit works date on the label, we repair or replace free of charge if the power is less than 75% of rated power while the users operate according to our manual. The replaced or repaired laser tube will have same warranty as the one which the buyer purchased first time from us. The single transportation freight will be afforded by buyer. When the laser tube structure is damaged or changed, we will not be responsible.
Specification:
| 1250±20 | Ø80±2 | 80 | 95 | 28 | YES |
| F4 | 1450±20 | Ø80±2 | 100 | 120 | 30 |
| F6 | 1650±20 | Ø80±2 | 130 | 150 | 30 |
| F8 | 1850±20 | Ø80±2 | 150 | 180 | 30 |
Other Power Co2 Laser Tube:
| Power | 40w 50w 60w | 80w | 100w | 130w | 150w |
| Link |
4. Photo Image
About us:
1) Quality
Mactron Technology Co,.ltd has passed ISO9001/2000 quality certificationhe. All of our products have CE Certificate, FDA Certificate and RoHS Certificate.
2) Price
Striving to improve efficiency and reduce costs, we have absolute predominance in price by selling products directly to end users on Aliexpress as a manufacture .
3) Service
For international custmer, we provide professional technician support on all our products by Trademanager withne 24 hours. Any problems about products, we will provide the step by step instruction for you.
4) Warranty&Return
Were happy to replace or refund money and aim to resolve issues quickly to meet your satisfaction.If goods arrive defective or damaged, you have 7 days from date of receipt to contact us. Please kindly provide evidence to us. Such as picture,video and documents.We will replace you a new one or refund you full money!
5) Shipping
With professional packing to avoid the damage, We have posted many products to worldwide safe and sound, including USA, Europe, Eastern Europe, South America, Middle East and so on. once receiving payment, we post the goods and provide the airway bill number for on-line tracking within 24 hours, including the weekend.
6) Feedback
Your satisfication and positive feedbck is very important to us. If you satisfy with our products and service, please kindly leave us 5 Star. If you have problems, please kindly contact us before leave any negative feedback, we would like to try best solve any problems for you!
How To Judge Co2 Laser Tube Quality Problem
(1) Laser engraving and cutting depth is not enough when the laser tube start to work
Please kindly check the laser tube installing fixture is prober or not. Light path is correct or not. Focusing distance setting is correct or not. Mirror and focus lens face is clean or not. If it has scratch, if all is ok, we judge it is the laser tube problem.
(2) Laser engraving and cutting depth is not enough after laser tube working a while.
Please kindly check the laser tube installing fixture is prober or not. The laser cooling water temperature is higher than 30 degree or not. The focus lens and mirror is hot or not. The volume and pressure of the cooling water is normal or not.If all is ok, we judge the laser tube have quality problem.
(3) High voltage spark and discharge
Please kindly check positive connector is dirty and wet or not. It is near to machine metal body or not. For laser power supply positive connector is connected or not. the high voltage cable is break or offline or not. If all is no problem, we adjust the laser tube is quality problem.
(4) CO2 Laser tube break off, crack, laser head fall off.
(a)The cooling water temperature is controlled between 25-30 temperature or not. In cold area, the water cannot stay in laser tube for freezing.
(b)The laser tube working is understand laser water protective controlled or not. (Test the laser beam occur or not once the water protective stop work)
(c)The laser tube has bubble or not.
(d)Laser water pressure and volume is normal or not. And the direction of laser water flow in laser tube is from lower to higher point.
(e) The water pipe is knotted or not.
If all is ok, the laser tube have quality problem, we need to replace a new co2 laser tube.
How To Install Co2 Laser Tube
(1) Firstly, connect the water pipe to laser water chiller, adjust the outlet water pipe position according to the principle of laser water flowing from lower position to higher position direction. Ensure the laser water is full of the laser tube and don’t have bubble. Then, open the laser power supply.
Notice:
(a) The laser cooling water is distilled water or pure water, the temperature should be 20-30. In summer, the water temperature is high, should change the laser water chiller or stop the machine for a while. In cold area, don’t let the water freezing, especially don’t let the water stay in laser tube if the laser machine not work. (Attentions: customers who use alternating current must let the water box grounded).
(b) The two fixture should be installed in the 1/4 position of laser tube head. And the volume of water flowing is 2L-4L/min, if not, the cooling water effect is not good. It will let the coating of the tube easy fall off. Beams not focused and decrease the laser power. The nozzle of cooling water in chiller must be covered underwater. If not, the laser tube cannot full with water when next start.
(c) Please pay attention to protect the laser output window to avoid smoke sputtering during working as well as adjusting light path. When the laser output window is polluted, the laser power will be decreased. So please use absorbent cotton or cloth dipped in alcohol without water to clean the surface of laser output window.
(d) When installing, adjust the position of the tube fixture or rotate the laser tube to achieve the best effect. Then fix the laser tube up very well.
(e) Keep the high voltage cable and connector clean and dry. Far away from metal body.
(f) Don’t let scale deposit in the laser tube, it will decrease the cooling effect. If you find the scale deposit, please use 20% rare hydrochloric acid to clean scale of cool tube.
(g) It is glass laser tube, operate it carefully.
(h) Please use laser tube reasonably. The laser tube is used by the right ways, which will save laser power. In fact, the optimal laser power is only 80% for itself.
