Hurry! Offers 300*300mm Scan Area Co2 Laser F-Theta Lens For Co2 Laser Marking Machine

Hurry! Offers 300*300mm Scan Area Co2 Laser F-Theta Lens For Co2 Laser Marking Machine Rating: 4.8 out of 5

Laser Machine Best Choice Product provide laser cnc,laser engraving machine,laser machine,laser printer,laser wood machine Hurry! Offers 300*300mm Scan Area Co2 Laser F-Theta Lens For Co2 Laser Marking Machine. Price at this time US $410.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in Mactron Laser Parts Store Trusted Seller Store!

Fantastic Clearance Hurry! Offers 300*300mm Scan Area Co2 Laser F-Theta Lens For Co2 Laser Marking Machine item can boost the high quality of your life. Qualified to be bought. Inexpensive rate and also totally free shipping. Allow's buy prior to prices climb.

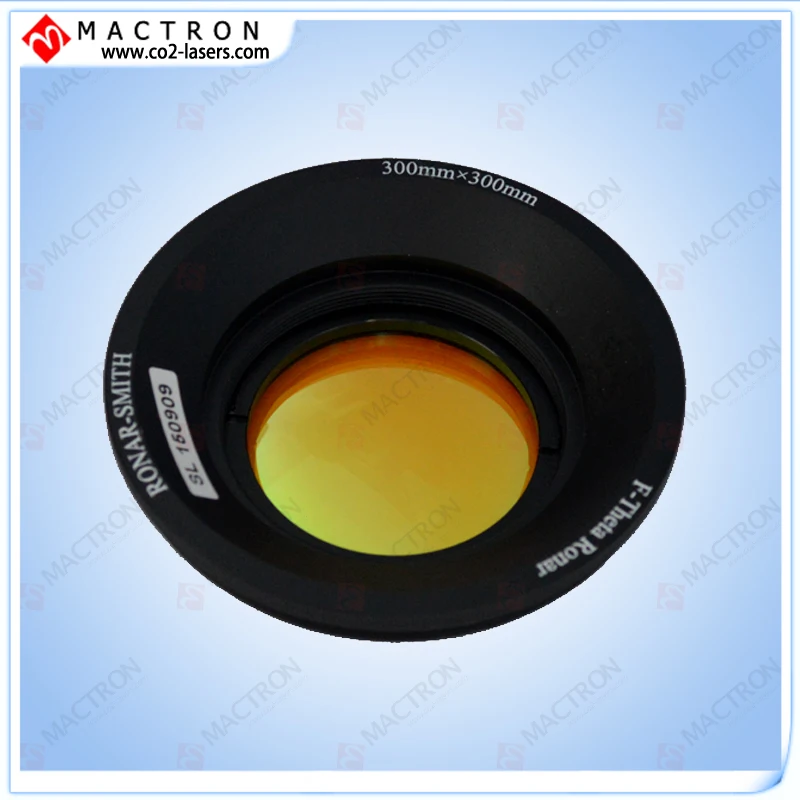

Co2 Laser F-theta Lens :

300x300mm scan field , 433mm EFL

Product Description

Scan Field:300*300mm

Feature:

Dia. Tolerance: +-0/0.13mm

Thick Tolerance: +-0.25mm

FL Tolerance: <+/-2%

Decentration: <3 arc min

Clear Aperture: >90%

Surface Figure: L/20-10.6um

Surface Quality: 40-20 S/D

AR/AR: R<0.25% -10.6um

Detail Specification:

Part No MT-10.6-F435Z-48
Focus Length 433.0mm
Scan Field 300*300mm
Spot Size 463.5um
Entrance Pupil 12mm
Max.Scan Angle 28deg.
Lens Dia. 48.0mm
ET 2.8mm
BFL 462.0mm
Wavelength 10640nm

Material

Singapore or USA imported ZnSe material.

Application

Using for fiber (10640nm wavelength) laser marking and engraving system. Installed on the Scanner Head.

Detailed Images

Our Services

The F-theta lens is import ZnSe material with high quality.

1. If the lens is deciduate while you received it, please inform us for replacement immediately.

2. Neither Scratch nor Artificially damaged is beyond warranty.

3. The lens is consumble parts, fading after a long time is normal.

Packaging & Shipping

Company Information

About US

Dongguan Mactron Technology Co., Ltd is a modern professional Hi-Tech enterprise, specializing in R&D, manufacturing, marketing of laser laser cutting and marking machine and laser accessories for more than 10 years.

Mactron scopes of supply include: laser marking machine, f-theta lens, laser beam exbander, scanner head, laser module, Co2 Laser Tube, co2 laser power supply,Laser Focus Lens, Laser Reflector Mirror, Industrial Water Cooler Unit, Laser Control System, Laser Cutting Head and other accessories etc.

Mactrons business tenet: "Win the market with advanced technology, Redound upon customer with the best service"

1) Quality

Mactron Technology Co,.ltd has passed ISO9001/2000 quality certificationhe. All of our products have CE Certificate, FDA Certificate and RoHS Certificate.

2) Price

Striving to improve efficiency and reduce costs, we have absolute predominance in price by selling products directly to end users on Aliexpress as a manufacture .

3) Service

For international custmer, we provide professional technician support on all our products by Trademanager whine 24 hours. Any problems about products, we will provide the step by step instruction for you.

4) Warranty&Return

We are happy to replace or refund money and aim to resolve issues quickly to meet your satisfaction.If goods arrive defective or damaged, you have 7 days from date of receipt to contact us. Please kindly provide evidence to us. Such as picture,video and documents.We will replace you a new one or refund you full money!

5) Shipping

With professional packing to avoid the damage, We have posted many products to worldwide safe and sound, including USA, Europe, Eastern Europe, South America, Middle East and so on. once receiving payment, we post the goods and provide the airway bill number for on-line tracking within 24 hours, including the weekend.

6) Feedback

Your satisfication and positive feedbck is very important to us. If you satisfy with our products and service, please kindly leave us 5 Star. If you have problems, please kindly contact us before leave any negative feedback, we would like to try best solve any problems for you!

Maintain for lens

Optics Handling & Cleaning

1. Great care should be taken when handling infrared optics. Please note the following precautions :

1) Always wear powder-free finger cots or rubber/latex gloves when handling optics. Dirt and oil from the skin can severely contaminate optics, causing a major degradation in performance.

2) Do not use any tools to manipulate optics -- this includes tweezers or picks.

3) Always place optics on supplied lens tissue for protection.

4) Never place optics on a hard or rough surface. Infrared optics can be easily scratched.

5) Bare gold or bare copper should never be cleaned or touched.

6) All materials used for infrared optics are fragile, whether single crystal or polycrystalline, large or fine grained. They are not as strong as glass and will not withstand procedures normally used on glass optics.

2. Due to the problems encountered when cleaning mounted optics, it is recommended that the cleaning procedures described here be performed only on unmounted optic:

Step 1 - Mild Cleaning for Light Contamination (dust, lint particles)

Use an air bulb to blow off any loose contaminants from the optic surface before proceeding to the cleaning steps. If this step does not remove the contamination, continue to Step 2.

Step 2 - Mild Cleaning for Light Contamination (smudges, fingerprints)

Dampen an unused cotton swab or a cotton ball with acetone or isopropyl alcohol. Gently wipe the surface with the damp cotton. Do not rub hard. Drag the cotton across the surface just fast enough so that the liquid evaporates right behind the cotton. This should leave no streaks. If this step does not remove the contamination, continue to Step 3.

Note: Use only paper-bodied 100% cotton swabs and high-quality surgical cotton balls.

Step 3 - Moderate Cleaning for Moderate Contamination (spittle, oils)

Dampen an unused cotton swab or cotton ball with white distilled vinegar. Using light pressure, wipe the optic’s surface with the damp cotton. Wipe excess distilled vinegar with a clean dry cotton swab. Immediately dampen a cotton swab or cotton ball with acetone. Gently wipe the optic’s surface to remove any acetic acid. If this step does not remove the contamination, continue to Step 4.

Note:Use only paper-bodied 100% cotton swabs.

Step 4 - Aggressive Cleaning for Severely Contaminated Optics (splatter)

Caution: Step 4 should NEVER be performed on new or unused laser optics. These steps are to be done only on optics that have become severely contaminated from use and have no acceptable results yielded from Steps 2 or 3 as previously noted.

If the thin-film coating is removed, the optics performance will be destroyed. A change in apparent color indicates the removal of the thin-film coating.

For severely contaminated and dirty optics, an optical polishing compound may need to be used to remove the absorbing contamination film from the optic.

A.Shake the container of polish thoroughly before opening. Pour four or five drops of polish onto a cotton ball. Gently move the cotton ball in circular patterns across the surface to be cleaned. Do not press down on the cotton ball! Let the cotton ball drag lightly across the surface under its own weight. If too much pressure is applied, the polish will quickly scratch the optic’s surface. Rotate the optic frequently to avoid excessive polishing in any one direction. Clean the optic in this manner for no more than 30 seconds. If, at any time during this step, you notice the optic’s surface change color, stop polishing immediately. This color change indicates that the outer portion of the thin-film coating is being eroded.

Step 4 (continued)

B.After using the polish, wet an unused cotton ball with distilled water and gently swab the optics surface. Thoroughly wet the surface to remove as much of the polish residue as possible. Do not let the optic’s surface dry! This will make the remaining polish removal much more difficult. (For a mounted optic, a fluffed cotton swab may be substituted. Try to remove as much polish residue as possible, especially near the mounts edges.)

Step 4 (coninued)

C.Quickly wet a fluffed cotton swab with isopropyl alcohol and gently clean the optic surface thoroughly. Cover the entire surface with the swab to dislodge as much polish residue as possible.

Step 4 (coninued)

D. Wet a fluffed cotton swab with acetone and clean the optic’s surface, removing any remaining isopropyl alcohol and polish residue in the process. When performing the final cleaning with acetone, lightly drag the cotton swab across the optic, overlapping strokes until the entire surface has been wiped. Move the swab very slowly for the final strokes to assure that the acetone on the optic’s surface dries immediately behind the swab. This will eliminate streaks on the surface.

NOTE:

Contamination and damage types, such as metal splatter, pits, etc, cannot be removed. If the optic shows the contamination or damage mentioned, it will probably need to be replaced.
