Laser Machine Best Choice Product provide laser cnc,laser engraving machine,laser machine,laser printer,laser wood machine Big Sale 220V , 100W Laser Co2 Power Supply For Co2 Laser Cutting Machine 100W. Price at this time US $185.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in Mactron Laser Parts Store Trusted Seller Store!
Quality products guarantee your life a lot more comfy when utilizing it. If you are interested to purchase it, you can directly get in touch with the sales to get even more details about this top quality item.
220V , 100W Laser Co2 Power Supply110V, 50/60Hz power supply is avaliable , please leave message to us when you order.
Mactron Brand High Quality Power Supply Laser Co2 100W belongs to high frequency design, adopt high quality IC parts for main parts to keep high performance and duration. 100 W laser power supplies can be used to 100W – 130W CO2 laser tube for kinds of industrial laser cutting system.
1. The Main Feature of 100w Laser Co2 Power Supply :
1) Stable performance:
Each power supply have been much more rigorous testing procedures, under full load high temperature (52~55 degrees celsius) 24 hours of aging, to ensure the stability of each power supply.
2) Output voltage:
current large (AC220V input, the maximum output current up to 40mA, voltage up to 50kv)
3) Improve the laser power:
2000mm laser tube and supporting the use of peak laser power can reach 150W, the average power of 130W.
4) Circuit design is reasonable:
It’s a high-end laser engraving machine, cutting machine the best choice. At the same time, significantly extend the life of the laser tube.
5) Good compatibility:
Can adapt to a number of manufacturers of CO2 laser tube, but also has strong adaptability and fast response, engraving, cutting effect of a good advantage.
6) Control is simple:
Select high or low level control, the use of TTL-level control of the laser can start and stop. At the same time increase the protection switch, testing is through the external water and ventilation.
Laser power control is simple, you can use 0 ~ 5V analog signal control the size of the laser power, you can also use the PWM (pulse width modulation) signal to be controlled.
* Protection function:
Power supply itself has open circuit protection, a good grounding in the case of protection, the power supply to short-term work in the open state, so to avoid the laser tube burst due to the damage caused by laser power supply, thereby enhancing the laser power supply of life.
7) Special Features(optional addition):
Power users do not need to open the shell, you can simply determine the laser power is working to distinguish between the failure of laser tube or power supply failure.
2. Specification of 100W Laser Co2 Power Supply :
| Model Parameters | 100W CO2 Laser Power Supply | |
| Input | Input Voltage | AC220V+/-10% (Need AC110V products, ordering need indicate) |
| AC frequency | 47 - 440HZ | |
| Cold-state Surge Current | ≤60A(AC220V input) ≤30A(AC110V input) | |
| Leakage current | ≤0.7mA(AC220V input) ≤0.4mA(AC110V input) | |
| Output | Maximum output voltage | DC50KV |
| Maximum output current | DC40mA(depending on the laser tubes of different manufacturers) | |
| Efficiency | ≥90%(Full load) | |
| Response speed | ≤ 1ms | |
| Control Interface | TTL multilevel switching control, effective level can be high and low selection (see control wiring diagram) | |
| Insulation | Input--output | AC 1500V 1 minutes ≤10 mA |
| Input--shell | AC 1500V 1 minutes ≤10 mA | |
| Output--shell | Connection | |
| Insulation Resistance | ≥50MΩ(DC500V) | |
| Environmental Requested | Working temperature | -10 - 50 degrees centigrade |
| Storage of temperature | -20 - 75 degrees centigrade | |
| Relative Humidity | Maximum 85% RH (non-condensing) | |
| Altitude | 100,000 feet of work200,000 feet of storage, does not work | |
| Cooling methods | Forced air cooling (fan cooling | |
| Dimensions (L*W*H) | 350mm*235mm*97mm | |

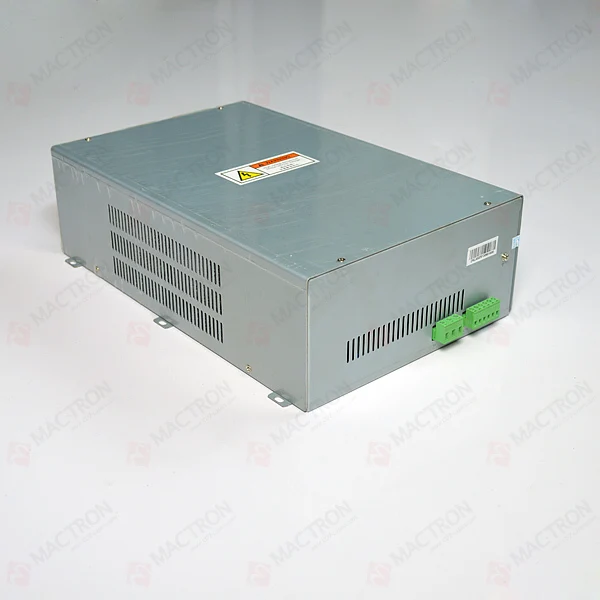

3. Photos of 100W Laser Co2 Power Supply :
4. About us:
Mactron Technology Co., Limited is a modern professional Hi-Tech enterprise, specializing in R&D, manufacturing, marketing of laser laser cutting and engraving machine and laser accessories for more than 10 years.
Mactron scopes of supply include: Co2 Laser Tube, co2 laser power supply,Laser Focus Lens, Laser Reflector Mirror, Industrial Water Cooler Unit, Laser Control System, Laser Cutting Head and other accessories etc.
Mactrons business tenet: "Win the market with advanced technology, Redound upon customer with the best service"
1. Quality
Mactron Technology Co,.ltd has passed ISO9001/2000 quality certificationhe. All of our products have CE Certificate, FDA Certificate and RoHS Certificate.
2. Price
Striving to improve efficiency and reduce costs, we have absolute predominance in price by selling products directly to end users on Aliexpress as a manufacture .
3. Service
For international custmer, we provide professional technician support on all our products by Trademanager whine 24 hours. Any problems about products, we will provide the step by step instruction for you.
4. Warranty&Return
We are happy to replace or refund money and aim to resolve issues quickly to meet your satisfaction.If goods arrive defective or damaged, you have 7 days from date of receipt to contact us. Please kindly provide evidence to us. Such as picture,video and documents.We will replace you a new one or refund you full money!
5. Shipping
With professional packing to avoid the damage, We have posted many products to worldwide safe and sound, including USA, Europe, Eastern Europe, South America, Middle East and so on. once receiving payment, we post the goods and provide the airway bill number for on-line tracking within 24 hours, including the weekend.
6.Feedback
Your satisfication and positive feedbck is very important to us. If you satisfy with our products and service, please kindly leave us 5 Star. If you have problems, please kindly contact us before leave any negative feedback, we would like to try best solve any problems for you!
Return Policy
If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
Seller Service
On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).Big Sale 220V , 100W Laser Co2 Power Supply For Co2 Laser Cutting Machine 100W
