Laser Cutter CNC Controller CHC-300 Capacitive Torch Height Controller for CNC Laser Cutting Machine Fast Delivery

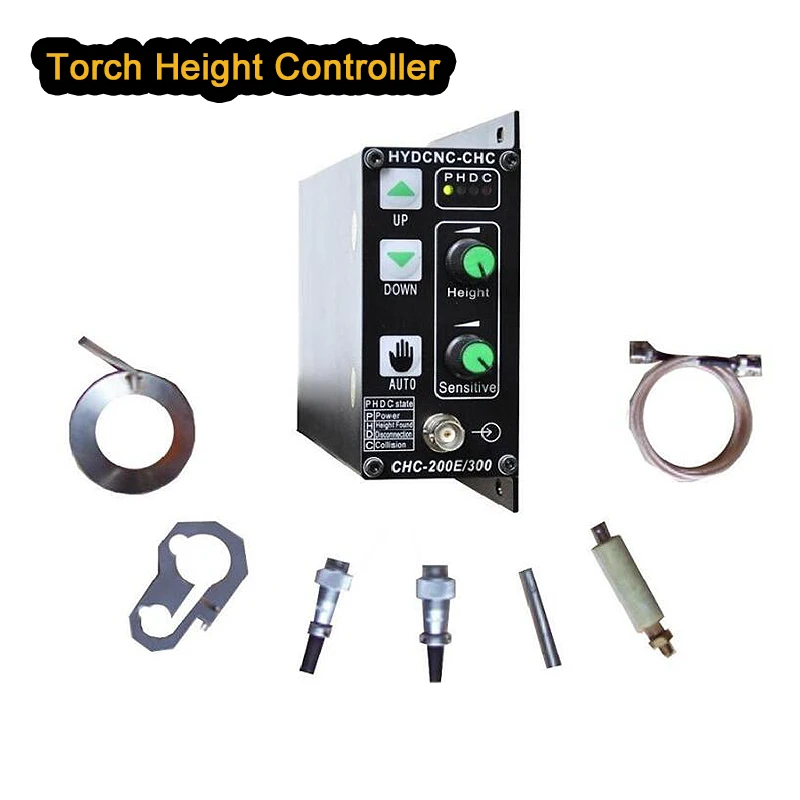

Package Of Capacitive Torch Height Controller
- 1pcs THC control module
- 2pcs Socket connector
- 1pcs HF cabl
- 1pcs fixture
- 1pcs insulation part
- 1pcs elastic connector
- 1pcs Sensor ring
CHC-300 Features as follow,
1、Increased more indicators to shows different states of THC.
2、Output of collision-alarm, which is optical isolation output from THC, can be sent to CNC’sAlarm input to freeze machine’s move.
This signal is effective on both manual/auto mode.The max output is 200mA, capable to drive most relays.
3、Anti-collision function. On manual/auto mode, when metal or low-conductive item like handtouches sensor ring, THC would send
out collision signal and lift torch up until no collision exist.
4、When HF cable is disconnected or weakly connected, it would be indicated on the disconnection indicator. So after installation of
HF cable, just shake the HF cable, the connection will be showed by the indicator.
5、Sensitive and Accuracy is increased 100%.
6、CHC300 uses programmable logic design, which is adjustable according to customer’srequest. It can be controlled by High/Low Level,
and limit/auto signal can be normally openor closed, without any change on circuit, and still with high reliability on anti-interference.
7、It supports YAG/Fiber/CO2 laser cutting. On laser cutting, it needs DC motor and ball-screwto secure the motor starts with low voltage.
And it will not use sensor ring,but needs customer to design the sensing device, we can offer design diagram for reference.
Basic Panameter
| Power supply: | AC24V +/- 10%, 50Hz/60Hz; |
| DC motor used on lifter: | DC24V; |
| Output current: | 1A-4A, max: 100W |
| Work temperature: | THC-10~60 degrees; HF cable: -10~ 200 degrees; Sensor parts: -10~350 degrees |
| Accuracy: | +/- 0.1mm (matters with lifter design); |
| Auto height range: from cutting material surface 1mm-20mm | |
| HF-cable: | 200mm~1300mm |
| Product size as figure L*W*H: | 176mm * 105mm * 50mm |
Components
