Laser Machine Best Choice Product provide laser cnc,laser engraving machine,laser machine,laser printer,laser wood machine Wonderful Offers 500W 750W 1000W 2000W fiber laser cutting machine,cheap China fiber laser metal cutting machine. Price at this time US $51400.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in Jinan AccTek Machinery Co.,Ltd Trusted Seller Store!
Wonderful Discount Wonderful Offers 500W 750W 1000W 2000W fiber laser cutting machine,cheap China fiber laser metal cutting machine product can boost the quality of your life. Qualified to be purchased. Low-cost price and also cost-free delivery. Let's buy Special Wonderful Offers 500W 750W 1000W 2000W fiber laser cutting machine,cheap China fiber laser metal cutting machine before rates climb.
One of these items is truly extremely understanding of your needs for this special product. The goods directory you obtain is certainly provide a referral for those of you that desire to discover the item you want. As an item that helps your demands to get convenience, of training course this Wonderful Offers 500W 750W 1000W 2000W fiber laser cutting machine,cheap China fiber laser metal cutting machine product is extremely interesting to get.
Product Descriptionfiber laser metal cutting machine
fiber laser metal cutting machine features and advantages:
1. Compare with the plasma cutting, it has the high precision cutting for different kinds of metal materials, like cutting stainless steel, carbon steel, alloy steel, spring steel, aluminum, copper, silver, titanium and other metal materials below 6 mm.
2. Compare with the NC, which can cut any complicated process and shape.No noise and no need to open any moulds at all.
3. Compare with linear cutting, which has much faster speed,100 times higher than it.
4. Double lead screw to drive, Small heat affected zone, good dimension stability. Flat and handsome laser-slotted, without later process
5. High performance/price ratio: the price is only 1/8 of the similar CO2 laser cutting machine and 2/5 of the equivalent NC Punch
6. Low use cost: only USD2 per hour which is 1/8-1/10 of the similar CO2 laser cutting machine (USD22-USD35 per hour)
7. Low follow-up maintenance cost: only 1/10-1/15 of the similar CO2 laser cutting machine and 1/3-1/4 the equivalent NC Punch
8. Steady performance: as a mature laser apparatus, the Fiber laser cutting machine is suitable for most metal manufacturing and processing industry.
Parametersfiber laser metal cutting machine technical parameters

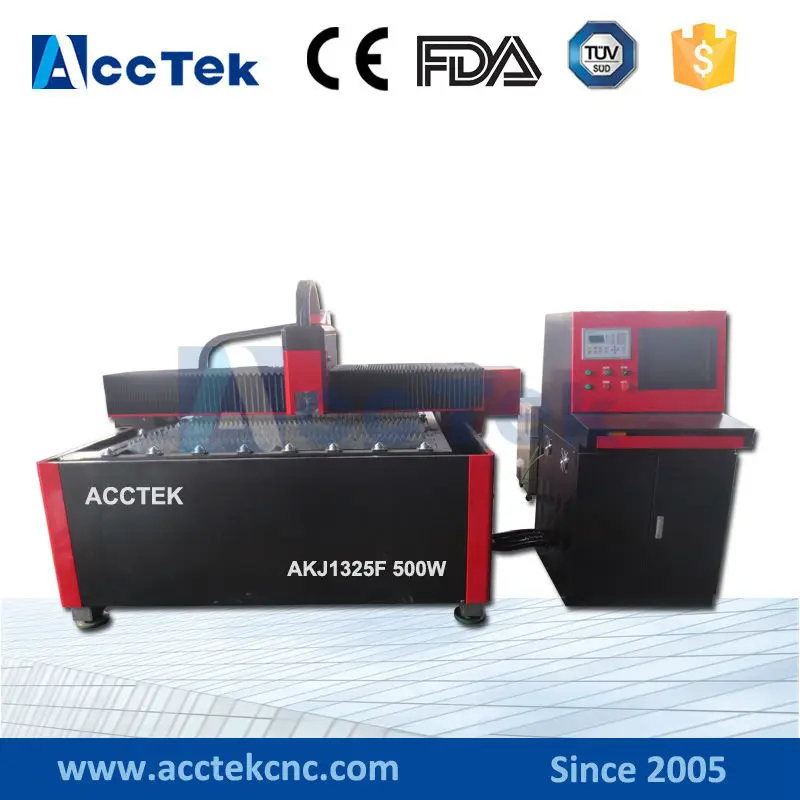

1 | Machine Name | AKJ1325F fiber laser metal cutting machine |
2 | Laser machine cutting area | 1300x2500mm/ 1500x3000mm(Optional) |
3 | Cutting thickness | 0.2-6mm |
4 | Laser power | 500watt fiber laser |
5 | Laser wave length | 1080nm |
6 | Rated power | 10-100% |
7 | Water chiller power | 6100w |
8 | Transmission system | Imported ballscrew/ Gear rack(optional) |
9 | X.Y axis location accuracy | ±0.01mm |
10 | X.Y axis repeat location accuracy | ±0.01mm |
11 | X.Y axis max moving speed | 30m/min |
12 | Max cutting speed | 12--15m/min |
13 | Min cutting line with | 0.02mm |
14 | Machine area size | 3.7x2.1x1.5m |
Machine details about the fiber laser metal cutting machine:
1. Support different images format as Al, DXF, PLT, Gerber, can read standard ISO G codes from MaterCam, Type3 such nesting software.
2. Automatically optimization when open or lead in DXF file, like delete repeated line, merge connected lines, recognize in/out cutting file and file sorting out.User can decide to manually do above work, or let controller do it automatically.
3. Support conventional picture edit functions
4. Following what you see is what you get, to set lead in/out, kerf compensation, merge, bridge, over burning, save gap
5. Unique function of Preview of cutting work flow.
6. Support segmental pierce, Progressive pierce, Pre-pierce, support separately setting laser watt, frequency, laser type,air type, pressure, auto cutting height during pierce and cutting.
7. Support to set separate lead in/out speed according to adjustment of laser power.
8. Big storage, allowing user to save all cutting parameters to use it again on same material.
9. Breakpoint recovery, CNC can return to the point where the cutting stopped, allowing partial file cutting.
It can go to any point to start there after stop or pause.
SamplesSome samples shows by fiber laser metal cutting machine:
After-sale service:
1).24 hours technical support by Email or Calling.
(Skype: cnc.help)
2). English manual and CD video for machine using and maintaining.
3). Hardware: 1.5 years on all parts (without person damaged).
Software: Whole life on update for free.
Maintenance and technological support: Whole life.
4).Engineers available to service machinery overseas.
We are the manufacturer ,so we can accept OEM design ,any requirement ,just feel free to contact me ,you will get professional service .
To reply you with more details, Leave me message with your own info please.
Return Policy
If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
Seller Service
On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).Wonderful Offers 500W 750W 1000W 2000W fiber laser cutting machine,cheap China fiber laser metal cutting machine
