Cool Discount Top Quality ktc-475mm Miran electronic ruler rod Laser Marking ktc-475 KTC Drawbars Packaging machine injection molding

Cool Discount Top Quality ktc-475mm Miran electronic ruler rod Laser Marking ktc-475 KTC Drawbars Packaging machine injection molding lamachine Rating: 5 out of 5

Laser Machine Best Choice Product provide laser cnc,laser engraving machine,laser machine,laser printer,laser wood machine Cool Discount Top Quality ktc-475mm Miran electronic ruler rod Laser Marking ktc-475 KTC Drawbars Packaging machine injection molding. Price at this time US $141.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in supper market Trusted Seller Store!

Brand : MIRAN item code : MIRAN decoration and construction : polymer Working principle : analog signal

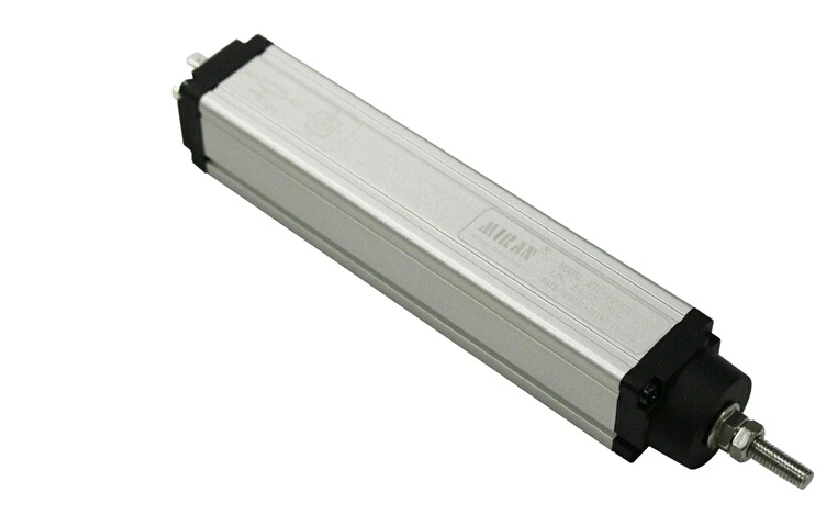

Universal KTC Rod series linear displacement sensor used for accurate measurement of displacements or lengths. Measuring stroke 75mm~1250mm, both ends are 4mm recoil stroke, precision linear 0.1%~0.04%FS, repeat accuracy ± 0.013mm. Sensor structure designed to ensure easy installation, solid and reliable. Anodizing the shell, beautiful appearance, corrosion resistance, built in conductive plastic measuring Unit, drift-free, long service life, guaranteed to run smooth. Seal protection class IP67,DIN430650 silver plated Sockets, applicable to a wide range of signal transmission is more stable, tie rod with 0.5mm of automatic reactive power , Company imported from abroad, dedicated systems, resistance the linearity of the technology can not only meet your requirements and size of the resistance values according to customer requirements.

Resistive sensors KTC series (Pulling rod) specifications

KTC (pull rod) series sepcifications (1/2)

Model KTC	75	100	125	150	175	200	225	250	275	300	350	400	450	500
Effective stroke (A.E) mm	75	100	125	150	175	200	225	250	275	300	350	400	450	500
Electrical stroke mm	76	102	127	152	177	203	228	253	278	304	356	406	457	508
Resistance k ω ±	5
Linearity±%	0.1			0.08			0.06				0.05
Repeatability mm	0.013
Resolution	Unlimited resolution
Brush operating current	≤ 1μA
Brush fault current	≤ 10mA
Maximum allowable power supply	≤ 36VDC
Temperature coefficient	10ppm/ -40 -+100
Insulation resistance	≥ 5MΩ,500VDC, Between the PCB and the shell
Mechanical stroke mm ( M.T)	83	109	134	160	185	210	236	261	286	312	363	414	465	515
Shell length mm (Dimensions )	139	164	190	215	240	266	291	317	342	368	418	469	519	570
Net weight g	168	190	210	230	250	272	292	312	332	354	398	438	480	522

KTC ( pull-rod ) series specification (2/2)

Model KTC	550	600	650	700	750	800	850	900	950	1000
Effective stroke (A.E) mm	550	600	650	700	750	800	850	900	950	1000
Electrical stroke mm	559	610	661	712	762	813	863	914	964	1015
Resistance k ω ±	10
Linearity±%	0.05		0.04
Repeatability mm	0.013
Resolution	Unlimited resolution
Brush operating current	≤ 1μA
Brush fault current	≤ 10mA
Maximum allowable power supply	≤ 36VDC
Temperature coefficient	10ppm -40-+100
Insulation resistance	≥ 5MΩ,500VDC, Between the PCB and the shell
Mechanical stroke mm ( M.T)	566	617	667	718	769	820	871	922	972	1022
Shell length mm (Dimensions )	621	671	721	772	822	873	923	974	1024	1075
Net weight g	564	606	648	690	730	772	812	854	894	936

HI if you need other type customized product please according the information as below to choose as you need and contact us

Product Summary:
KTC Product type (shielded wire products with 1 meter noodle):
KTC1 、 KTC 、 LWH: Shift lever, KTC1 For the new KTC
KTM 、 KTC2 、 LWH2: Mini-bars
KTR(1、2、3、4) : Spring reset type
Displacement slider type, KTF1 For the new KTF
KFM: Mini slider
KPC 、 KPCl: Hinge-mounted, KPC1 For the new KPC
KPM (12、16、1 8、22、23) : Micro-twisted-mounted (digital representative of the circular aluminum tube diameter)
KPF: Flange-mounted
KSC 、 KSP 、 KSF: Tiny feet
PME12 、 PME14 、 PMI: Reluctance of suspended magnetic ring
MTR : Magnetoresistive ball float liquid level gauge
WY-01 : Cement roller press machine
200mm Effective range ( MM )
10-5000 (Optional with different length, please refer to the range selection reference)
R Output type:
R : Resistance output type ( 0-100% Given input voltage, with the displacement varies), potentiometer, voltage 0-36V All (default standard)
Vl : Voltage 0-5v Output voltage of power supply 15-24V )
V2 : Voltage 0-l0V Output voltage of power supply 15-24V
Al : Current 4-20mA Output, three-wire, supply voltage 15-24V
A2 : Current 4-20mA Output two-wire , supply voltage 15-24V
RS : RS485 Digital signal output
C Outlet:
C Waterproof cable connectors: (KTCl/KTC/LWH/KTFl/TLH/KPC/KPCl/KPM23/MTR optional)
P : Aviation plug: (KTCl/KTC/LWH/KTM/KTR (1.2,3,4)/KTFl/TLH/KPC/KPCl/MTR optional)
H : Hessman joint: (KTCl/KTC/LWH/KTF/KTFl/TLH optional)
DL Line direction:
Dl: Tail-straight lines: (KTC2/LWH2/KFM/KPM (12, and16, and18)/KSC/KSP/KSF/PME12/PME14 optional)
SL: Side outlet : (KTMIKTC21LWH21KTR (1. 2.3. 4) /KPM (16. 18.22. 23:/KPC/KPCl/KPF optional)
J
J : Hinge type (fish eye at both ends): (KPM22/KPM23/KPC/KPC1 optional)
MT : Refit (tails straight out and screw or with a fish-eye):
(KPM (16, and18, and22, and23)/KPC/KPC1 optional)
WZ
Wz: Metal bracket (KTC1/KTC/LWH/KTM/KTC2/LWH2/KTR/KTF/
KTFl/TLH/KFM/KSC/KSP/KSF/KPM12/PME12 Optional )
sz: Plastic bracket (KPM12/KPM16/PME12 optional)
LZ: Aluminum alloy bracket (KPM12/PME12/PME14 optional)
