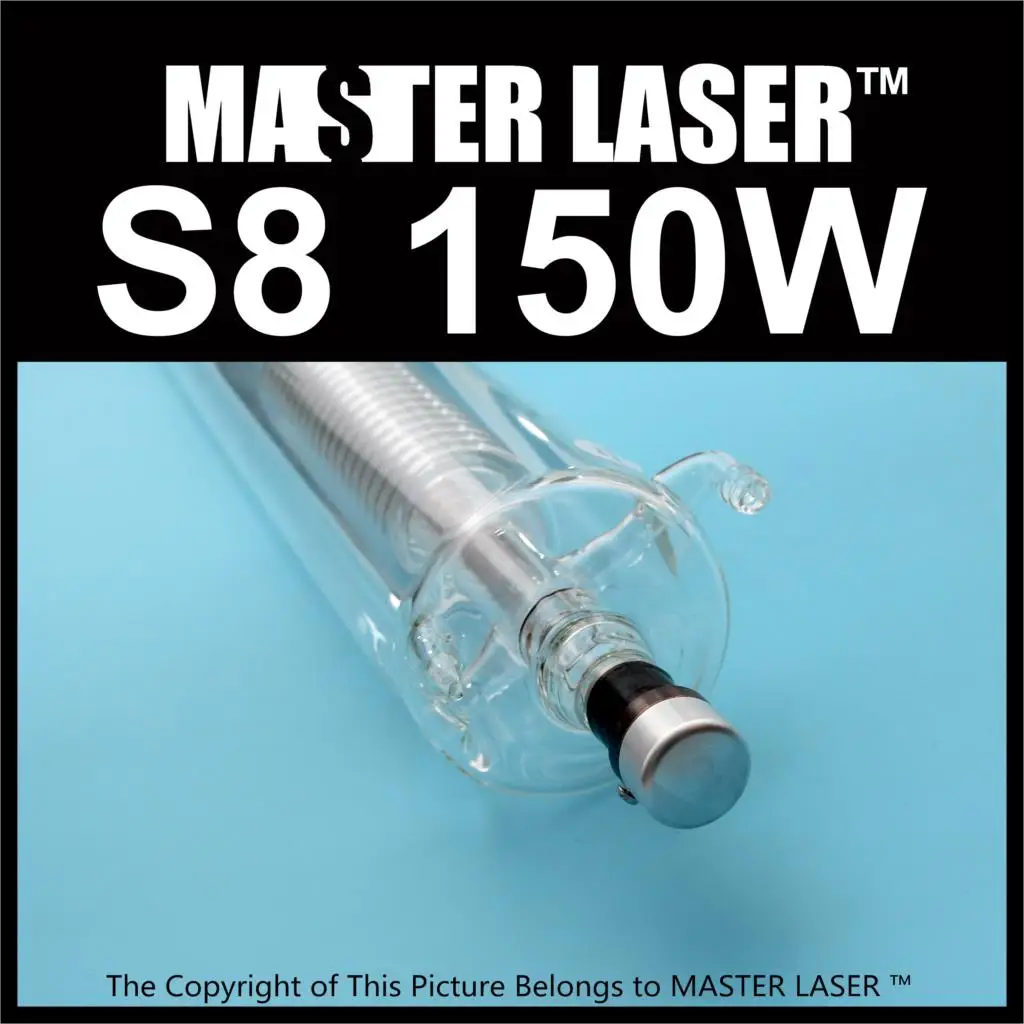

Reci Laser Tube S8 150W Highest Power 180W Upgrade of Z8 for Cutter CNC Laser Engraver and Cutting Machine
USD 499 / bag USD 539 / piece USD 1.5 / bag USD 80 / piece USD 29 / piece USD 19 / piece USD 49 / piece USD 279 / bag| This is original reci laser tube, the best quality laser tube made in China. Each laser tube will test its power, there is peak power and mean power on the tube, the warranty is 10 month. For example, 150w laser tube, the peak power can reach 177.2, each laser tube peak power is different, the picture just for your reference. |
| Operating principle of this productor |
It is cost down version of metal RF laser tube, it is made of glass.
The main principle: the high concentration of CO2 gas is stimulated by high-pressure discharge to generate wavelength 10.6um laser.
| Specification | |
| PN | S8 |
| Mean Power | 150W |
| Peak Power | 180W |
| Length | 1900mm |
| Diameter | 90mm |
| Life Span(H) | 10000 |
| Guarantee (Month) | 10 |
| Net Weight | 6kg |
| Charged Weight | 83kg |
| Packing Measurement(cm) | 204*44*46 |
| Output Couple |
Output Couple
Material: CVD ZnSe, Laser grade
Adopted ZnSe material imported from USA which can go with high power density, and increased the light transmittance of the parts
CVD ZnSe is imported from America, boasting low material absorption rate, excellent high-power density endurance.
| Rear Mirror |
Rear Mirror
Material: Silicon with radius
Silicon mirror is the best material for CO2 laser, with golden or electrical coating, the reflection of CO2 laser can reach 99.99%.
With the radius of the rear mirror, the output couple and rear mirror can make a unparallel cavity, which can hold the laser energy in the cavity.
| Catalyst |
The catalyst is new technology for laser tube, It is coating film inside the discharge tube.
With the catalyst, the discharge ability can improve more than 40%.
For example, with the catalyst, 1600mm length laser tube can produce 80w power, with the catalyst, 1200mm length tube can produce 80w power.
| Buffer Ring |
Buffer Ring
Glass laser tube is made of quartz glass, which is easy to be broken during shipping and moving.
The buffer ring can take in most of the hitting energy, make
sure the laser tube will survive.
| Easy to wire |
Easy to wire
We have designed the metal laser head in a new way, make is easier to wire.
Water cooled laser head need tapes, glues, and many other stuff to weld the high voltage wire to the laser tube.
New designed metal head laser tube only need a screw to fix the high voltage wire to the laser head screw.
| Applicable Laser Machine Brands |
 |
| Applicable Material |
 |
| Product Picture |
S8 CO2 Laser Tube Instruction |
| Requirements of installation |
| Strictly install S8 laser tube according to installation diagram, equipping power supply P12 which has high pressure at positive pole, starting voltage is 19kv. Caution: The inside tube maybe broken or leaked if dont comply with requirements. |
| Operating condition |
| Water cooling: purified water, flow is 2-5 L/min, water temperature is 10°—40°. Working environment: temperature 2-40°, humidity is 10-60%. Working current: testing current is 29mA, max. working current should be lower than 29mA, long term working current should be kept under 27mA. If current is lower than 25mA, the life span would be more than 8000 hours. All above mentioned current should be read on the ammeter series on cathode line. Caution: Long term over current usage may cause negative electrode turn yellow and greatly reduce service life of laser tube. |
| Function |
| Cutting function. Engraving function, support high frequency pulse engraving (4mA current) when laser tube is in preionization state. |
| Cautions |
| Dont wipe protection window by cotton ball, and otherwise the working efficiency will be seriously influenced. Please clean up contamination on the window by following methods: 1) shut off the laser if window is polluted; 2) blow the window surface; 3) spray surface by pure alcohol compressed through syringe; 4) turn on the laser after alcohol is volatilized; 5) If above steps are workless, please ask professional operator to wipe window surface by cotton ball dipped with alcohol. Please protect window from pollution. Special notice: DONT wipe window surface by acetone. Dont screw fastener at two ends, it may cause laser tube broken. If test beam spot at plexiglass, keep 300mm away from output mirror. |
| Safety |
| Wear protective goggle when adjusting laser beam which is invisible. Positive electrode has high voltage, please pay attention to safety signs. |
| Storage and Transportation |
| Exhaust cooling liquid during storage or transportation, cover output end by dust proof plastic bag, keep the storage temperature at 2-40°,humidity is 10-60%. Pack the tube according to factory packaging, stick tube with sponge firmly by tape to avoid slipping. The sponge packing the output mirror should extrude 70mm, while 50mm for packing total reflect mirror. |
| Please operate laser tube according to above instructions, otherwise there would be no quality guarantee |
