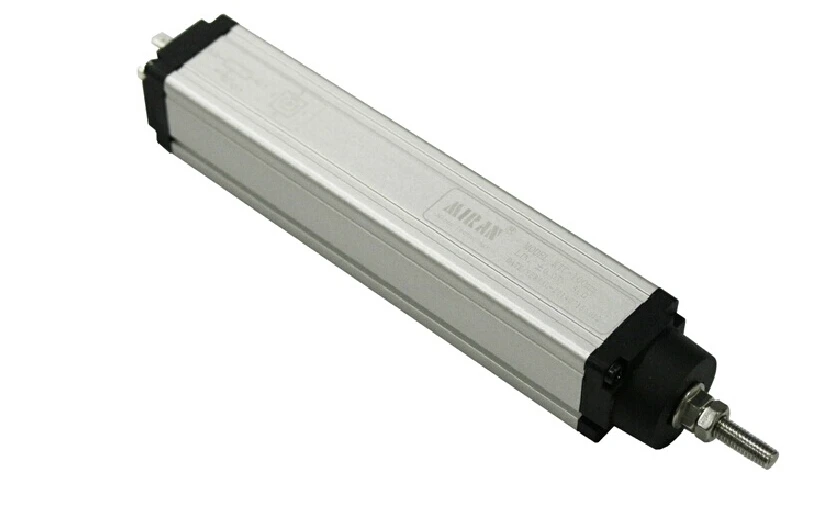

Laser Machine Best Choice Product provide laser cnc,laser engraving machine,laser machine,laser printer,laser wood machine Fantastic Deals Top Quality ktc-125mm Miran electronic ruler rod Laser Marking ktc-125 KTC Drawbars Packaging machine injection molding. Price at this time US $62.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in supper market Trusted Seller Store!
Brand : MIRAN item code : MIRAN decoration and construction : polymer Working principle : analog signal
Universal KTC Rod series linear displacement sensor used for accurate measurement of displacements or lengths. Measuring stroke 75mm~1250mm, both ends are 4mm recoil stroke, precision linear 0.1%~0.04%FS, repeat accuracy ± 0.013mm. Sensor structure designed to ensure easy installation, solid and reliable. Anodizing the shell, beautiful appearance, corrosion resistance, built in conductive plastic measuring Unit, drift-free, long service life, guaranteed to run smooth. Seal protection class IP67,DIN430650 silver plated Sockets, applicable to a wide range of signal transmission is more stable, tie rod with 0.5mm of automatic reactive power , Company imported from abroad, dedicated systems, resistance the linearity of the technology can not only meet your requirements and size of the resistance values according to customer requirements.
| Resistive sensors KTC series (Pulling rod) specifications |
KTC (pull rod) series sepcifications (1/2)
| Model KTC | 75 | 100 | 125 | 150 | 175 | 200 | 225 | 250 | 275 | 300 | 350 | 400 | 450 | 500 |
| Effective stroke (A.E) mm | 75 | 100 | 125 | 150 | 175 | 200 | 225 | 250 | 275 | 300 | 350 | 400 | 450 | 500 |
| Electrical stroke mm | 76 | 102 | 127 | 152 | 177 | 203 | 228 | 253 | 278 | 304 | 356 | 406 | 457 | 508 |
| Resistance k ω ± | 5 | |||||||||||||
| Linearity±% | 0.1 | 0.08 | 0.06 | 0.05 | ||||||||||
| Repeatability mm | 0.013 | |||||||||||||
| Resolution | Unlimited resolution | |||||||||||||
| Brush operating current | ≤ 1μA | |||||||||||||
| Brush fault current | ≤ 10mA | |||||||||||||
| Maximum allowable power supply | ≤ 36VDC | |||||||||||||
| Temperature coefficient | 10ppm/ -40 -+100 | |||||||||||||
| Insulation resistance | ≥ 5MΩ,500VDC, Between the PCB and the shell | |||||||||||||
| Mechanical stroke mm ( M.T) | 83 | 109 | 134 | 160 | 185 | 210 | 236 | 261 | 286 | 312 | 363 | 414 | 465 | 515 |
| Shell length mm (Dimensions ) | 139 | 164 | 190 | 215 | 240 | 266 | 291 | 317 | 342 | 368 | 418 | 469 | 519 | 570 |
| Net weight g | 168 | 190 | 210 | 230 | 250 | 272 | 292 | 312 | 332 | 354 | 398 | 438 | 480 | 522 |
KTC ( pull-rod ) series specification (2/2)
| Model KTC | 550 | 600 | 650 | 700 | 750 | 800 | 850 | 900 | 950 | 1000 |
| Effective stroke (A.E) mm | 550 | 600 | 650 | 700 | 750 | 800 | 850 | 900 | 950 | 1000 |
| Electrical stroke mm | 559 | 610 | 661 | 712 | 762 | 813 | 863 | 914 | 964 | 1015 |
| Resistance k ω ± | 10 | |||||||||
| Linearity±% | 0.05 | 0.04 | ||||||||
| Repeatability mm | 0.013 | |||||||||
| Resolution | Unlimited resolution | |||||||||
| Brush operating current | ≤ 1μA | |||||||||
| Brush fault current | ≤ 10mA | |||||||||
| Maximum allowable power supply | ≤ 36VDC | |||||||||
| Temperature coefficient | 10ppm -40-+100 | |||||||||
| Insulation resistance | ≥ 5MΩ,500VDC, Between the PCB and the shell | |||||||||
| Mechanical stroke mm ( M.T) | 566 | 617 | 667 | 718 | 769 | 820 | 871 | 922 | 972 | 1022 |
| Shell length mm (Dimensions ) | 621 | 671 | 721 | 772 | 822 | 873 | 923 | 974 | 1024 | 1075 |
| Net weight g | 564 | 606 | 648 | 690 | 730 | 772 | 812 | 854 | 894 | 936 |
HI if you need other type customized product please according the information as below to choose as you need and contact us
Product Summary:
KTC Product type (shielded wire products with 1 meter noodle):
KTC1 、 KTC 、 LWH: Shift lever, KTC1 For the new KTC
KTM 、 KTC2 、 LWH2: Mini-bars
KTR(1、2、3、4) : Spring reset type
Displacement slider type, KTF1 For the new KTF
KFM: Mini slider
KPC 、 KPCl: Hinge-mounted, KPC1 For the new KPC
KPM (12、16、1 8、22、23) : Micro-twisted-mounted (digital representative of the circular aluminum tube diameter)
KPF: Flange-mounted
KSC 、 KSP 、 KSF: Tiny feet
PME12 、 PME14 、 PMI: Reluctance of suspended magnetic ring
MTR : Magnetoresistive ball float liquid level gauge
WY-01 : Cement roller press machine
200mm Effective range ( MM )
10-5000 (Optional with different length, please refer to the range selection reference)
R Output type:
R : Resistance output type ( 0-100% Given input voltage, with the displacement varies), potentiometer, voltage 0-36V All (default standard)
Vl : Voltage 0-5v Output voltage of power supply 15-24V )
V2 : Voltage 0-l0V Output voltage of power supply 15-24V
Al : Current 4-20mA Output, three-wire, supply voltage 15-24V
A2 : Current 4-20mA Output two-wire , supply voltage 15-24V
RS : RS485 Digital signal output
C Outlet:
C Waterproof cable connectors: (KTCl/KTC/LWH/KTFl/TLH/KPC/KPCl/KPM23/MTR optional)
P : Aviation plug: (KTCl/KTC/LWH/KTM/KTR (1.2,3,4)/KTFl/TLH/KPC/KPCl/MTR optional)
H : Hessman joint: (KTCl/KTC/LWH/KTF/KTFl/TLH optional)
DL Line direction:
Dl: Tail-straight lines: (KTC2/LWH2/KFM/KPM (12, and16, and18)/KSC/KSP/KSF/PME12/PME14 optional)
SL: Side outlet : (KTMIKTC21LWH21KTR (1. 2.3. 4) /KPM (16. 18.22. 23:/KPC/KPCl/KPF optional)
J
J : Hinge type (fish eye at both ends): (KPM22/KPM23/KPC/KPC1 optional)
MT : Refit (tails straight out and screw or with a fish-eye):
(KPM (16, and18, and22, and23)/KPC/KPC1 optional)
WZ
Wz: Metal bracket (KTC1/KTC/LWH/KTM/KTC2/LWH2/KTR/KTF/
KTFl/TLH/KFM/KSC/KSP/KSF/KPM12/PME12 Optional )
sz: Plastic bracket (KPM12/KPM16/PME12 optional)
LZ: Aluminum alloy bracket (KPM12/PME12/PME14 optional)
