Popular Laser Choice Product provide 3d laser,laser flashlight,laser led,laser meter,laser pointer Big Flash Deal KOMSHINE GX36 Fusion Splicer / FC-6S fiber Cleaver+QX30 SM1550 nm 30dB OTDR+Optic Power Meter+Laser Source+VFL. Price at this time US $1985.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in Trusted Seller Store!

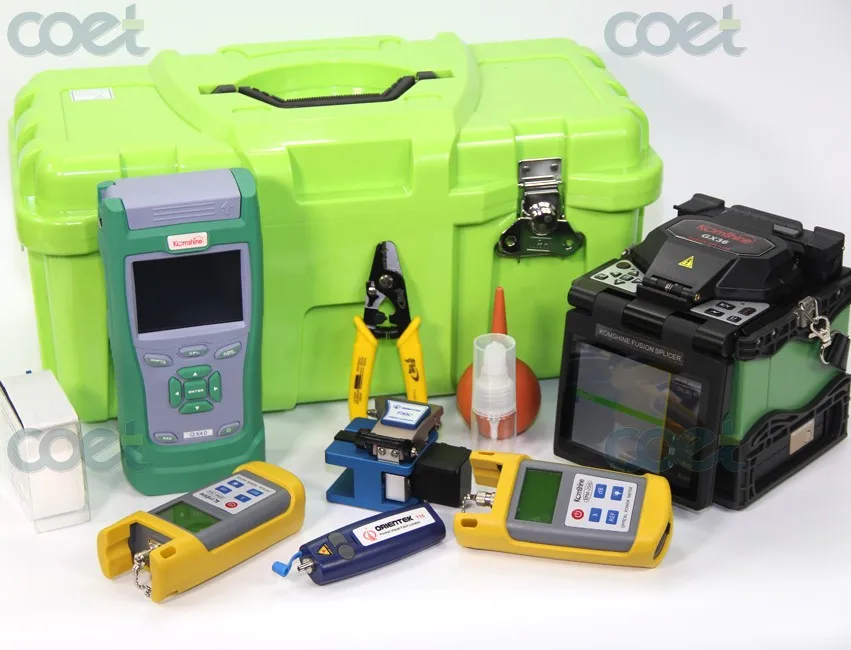

KOMSHINE GX36 Fusion Splicer +KOMSHINE KFC-33 fiber Cleaver+QX30 SM1550 nm 30dB OTDR+Optic Power Meter+Laser Source+VFL
1: KOMSHINE GX36 FUSION SPLICER KIT INCLUDES:
Specification :
| Applicable Fibers | SM / MM / DS / NZDS / BIF & UBIF (G.657) |
| Average Loss | 0.02dB(SM) / 0.01dB(MM) / 0.04dB(DS) / 0.04dB(NZDS) / 0.02dB(G.657) |
| Return Loss | >60dB |
| Operation Methods | Auto, Manual |
| Typical Splicing Time | 9s |
| Typical Heating Time | 28s |
| Fiber Alignment | Core Alignment / Clad Alignment |
| Fiber Diameter | Cladding: 80~150 um / Coating: 100~1000 um |
| Cutting Length | 8~16mm(Fiber diameter: <250um) / 16mm(Fiber diameter: 250~1000um) |
| Magnification | X or Y: 310X / X + Y: 155X |
| LCD Display | High performance 3.7 inch. TFT LCD / 640x480 resolution |
| Tension Test | 2N |
| Applicable Sleeve | 60mm / 40mm / 20mm or etc. |
| Battery Capacity | Average:200 cycles (Splicing and Heating) Charging time: 3 hours |
| Battery Life Cycle | 300~500 charge / discharge cycles |
| Electrode Life Cycle | Typical 3000 times |
| Power | Removable battery : 11.1V 8800mAH AC/DC adapter: input:AC100-240V output:DC13.5V/5.0A |
| Working Environments | Temp: -10C~+50C Humidity: 95%RH Elevation: 0~5000M |
| Dimension | L×W×H=135×160×150(mm) |
| Weight | 1.8 KGs (without battery), 2.3 KGs (with battery) |
2.KOMSHINE QX30 SM 1550nm 30dB OTDR With FC/UPC+SC
/UPC+LC/UPC Connectors:
Specifications:
| Model | = | QX30 |
| Wavelength(nm) | = | 1550 |
| Dynamic range(dB) | = | 30 |
| Pulse width (ns) | = | 5,20,40,80,160,320,640,1280,2560,5120,10240,20480 |
| Display | 3.5 inch TFT LCD touch screen | |
| Event blind zone (m) | = | 8 |
| Attenuation blind zone (m) | = | 10 |
| Linearity (dB/dB) | = | ±0.05 dB/ dB |
| Loss threshold (dB) | = | 0.05 |
| Loss resolution ratio (dB) | = | 0.01 |
| Sampling resolution ratio (m) | = | 0.125 to 8 |
| Sampling point | = | 32k |
| Distance uncertainty (m) | = | ±(1 m + 5×10-5× distance + sampling interval) |
| Distance scope (km) | = | 0.3 to180 |
| Memory capacity of trace | = | SD Card (4G), > 10000 pieces |
| Duration of measurement | = | Defined by user; 5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min are selectable |
| Optical interface | = | FC/UPC+SC/UPC+LC/UPC |
| Data interface | = | USB interface, SD card interface |
| Visual Fault Locator | = | NON |
| Power supply | = | Lithium battery; continuing working duration ≥ 8 hours |
| Warranty period | = | 12 months |
3: Mini Optical Power Meter + Mini Light Source + Visual Fault
Locator INCLUDES:
- 1. Six wavelenghts Optical Power Meter for SM & MM
- 2. Dual Wavelengths 1310/1550nm Optical Light Source for SM
- 3. Pocket size Visual Fault Locator
- 1 Year Manufacturers Warranty
1. Buyer is responsible for the custom duty and local import taxes;
2. Important!!! Dear Brazil customer, please leave your CPF or CNPJ number after
placing the order.
3. Ordering more than 10 sets: contact me to get a huge discount!!!
