2018 Flash Deal KOMSHINE FX35 Fusion Splicer+KFC-33 Fiber cleaver+optica Power Meter+Laser Source+Visual Fault Locator

2018 Flash Deal KOMSHINE FX35 Fusion Splicer+KFC-33 Fiber cleaver+optica Power Meter+Laser Source+Visual Fault Locator Rating: 3.5 out of 5

Popular Laser Choice Product provide 3d laser,laser flashlight,laser led,laser meter,laser pointer 2018 Flash Deal KOMSHINE FX35 Fusion Splicer+KFC-33 Fiber cleaver+optica Power Meter+Laser Source+Visual Fault Locator. Price at this time US $1490.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in Trusted Seller Store!

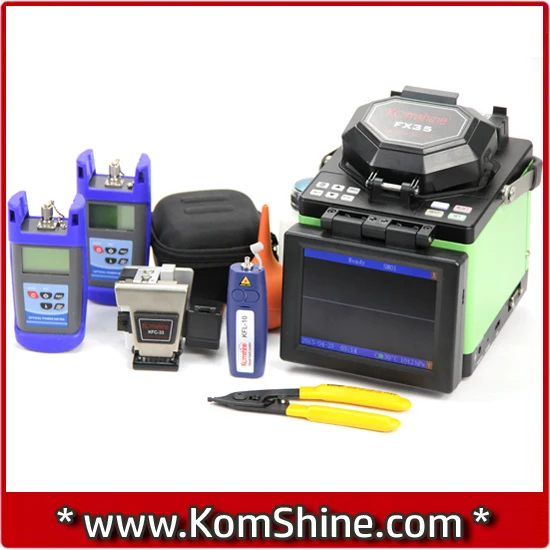

KOMSHINE FX35 Fusion Splicer+KFC-33 Fiber cleaver+Power

Meter+Laser Source+Visual Fault Locator

1: KOMSHINE FX35 FUSION SPLICER KIT INCLUDES:

  • FX35 Fusion Splicer
  • KFC-33 High Precision Fiber Cleaver
  • Tri-hole Fiber Coat Stripper
  • Kimwipes Lint-Wipers 280 wipers/box
  • Instruction CD
  • Fusion Splice Protection Sleeves 500ea
  • Internal Battery
  • Charger, AC Power Cord
  • Spare Electrodes (one pair)
  • Cooling Tray, Alcohol Pump Bottle, Blower Brush
  • User Manual
  • Carrying Case

Specifications:

Applicable fibers

SM MM DS NZDS

Fiber diameter

Cladding diameter:80-150μm; Coating diameter:100-1000μm

Fiber count

Single

Fiber cleaved length

12-16mm (Coating diameter:250μm)

Actual average splice loss

0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)

Typical splicing time

Typical 9 sec (standard SM fiber)

Return loss

>60dB

Splicing mode

Auto Calibrate Normal Special

Fiber aligning method

Meticulous,Core,Clad,Manual

Splicing program

53 (templet), 40(user)

Tube heating program

9 (templet),24(user)

Tube typical heating time

Typical 25 sec

Protection sleeve length

60mm, 40mm

Storage of splice result

4000 results, 20 parameter per result

Fiber image magnification

300X (X or Y view),150X (X and Y view)

Battery capacity

Typical 160 cycles (splice/tube heat with inner Li-battery)

Monitor

5.7 inch color LCD monitor

Tension test

2N

Electrode life

4000

Terminal

USB

Power supply

AC 100-240V with AC adapter Inner Li-battery (7800mAH) DC 13.5V

Operating condition

0-5000m above sea level, -10-50OC Max wind velocity of 15m/s

Dimension

150mm(L)×150mm(W)×150mm(H)

Weight

2.55Kg excluding battery,3.05Kg including battery

2.Mini Optical Power Meter + Mini Light Source + Visual Fault Locator INCLUDES:

- 1. Six wavelenghts Optical Power Meter for SM & MM
- 2. Dual Wavelengths 1310/1550nm Optical Light Source for SM
- 3. Pocket size Visual Fault Locator
- 1 Year Manufacturers Warranty

NOTICE:

1. Buyer is responsible for the custom duty and local import taxes;

2. Important!!! Dear Brazil customer, please leave your CPF or CNPJ number after

placing the order.

3. Ordering more than 10 sets: contact me to get a huge discount!!!
