2018 Gift 500mW Mini desktop DIY Laser engraving engraver cutting machine Laser Etcher CNC print image of 50 X 65 cm Laser Engraver

2018 Gift 500mW Mini desktop DIY Laser engraving engraver cutting machine Laser Etcher CNC print image of 50 X 65 cm Laser Engraver lamachine Rating: 5 out of 5

Laser Machine Best Choice Product provide laser cnc,laser engraving machine,laser machine,laser printer,laser wood machine 2018 Gift 500mW Mini desktop DIY Laser engraving engraver cutting machine Laser Etcher CNC print image of 50 X 65 cm Laser Engraver. Price at this time US $155.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in YZJGDKJ Store Trusted Seller Store!

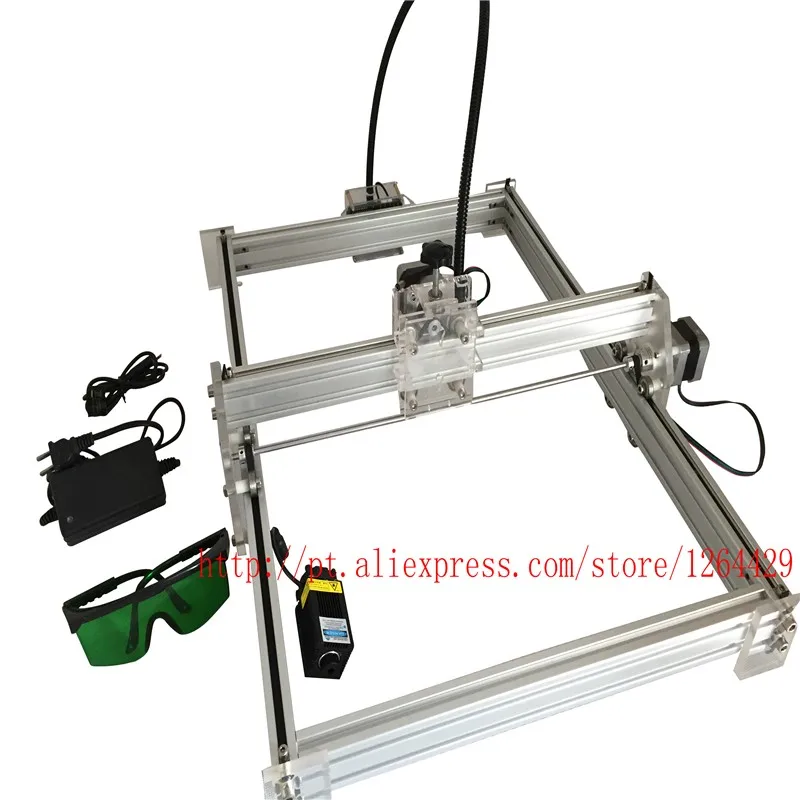

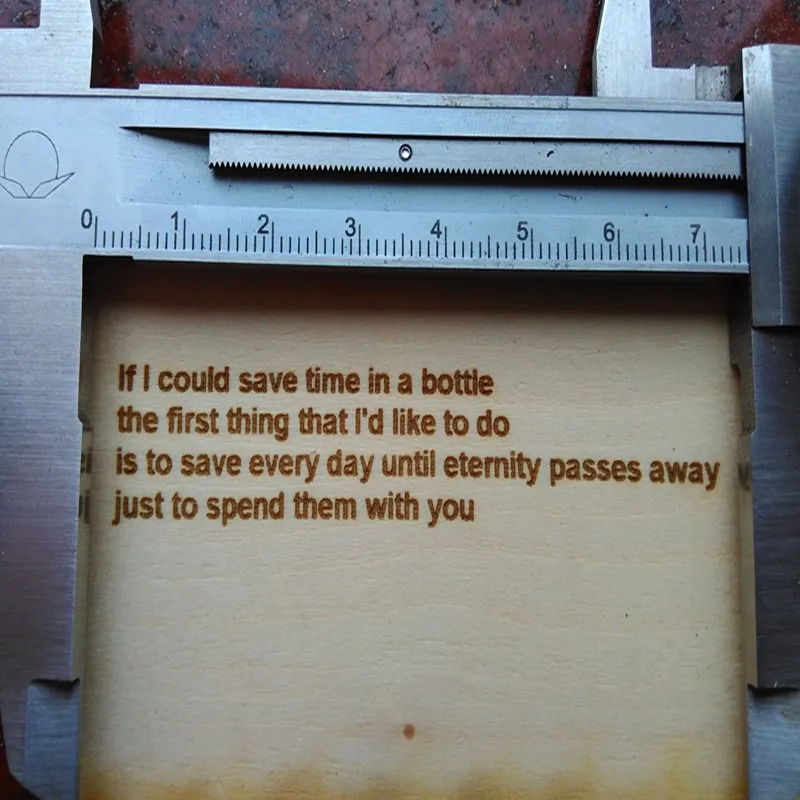

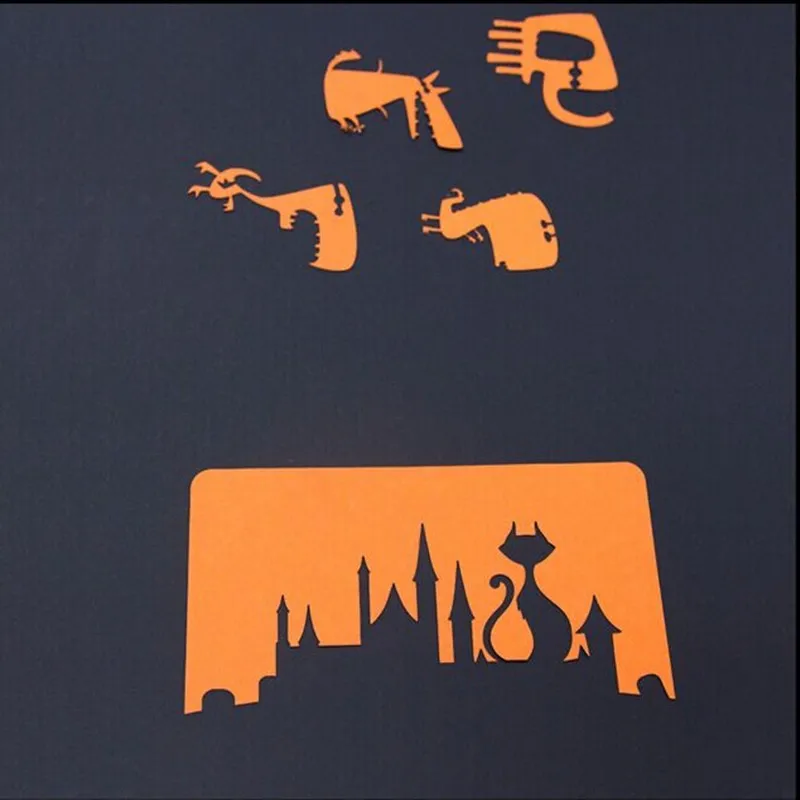

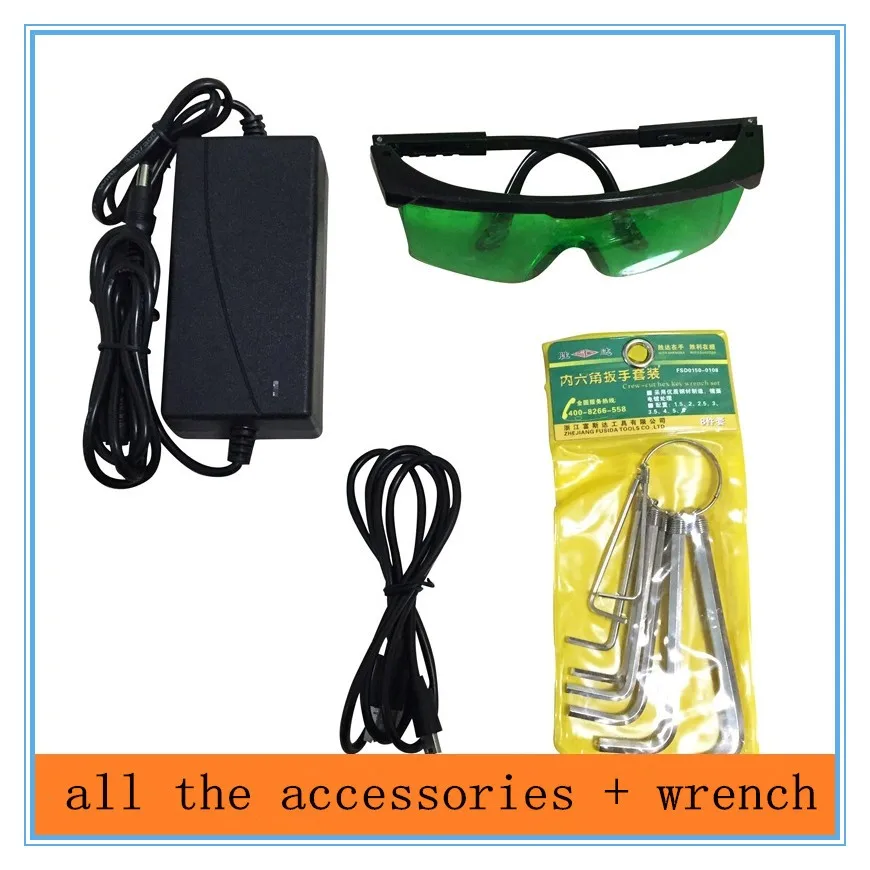

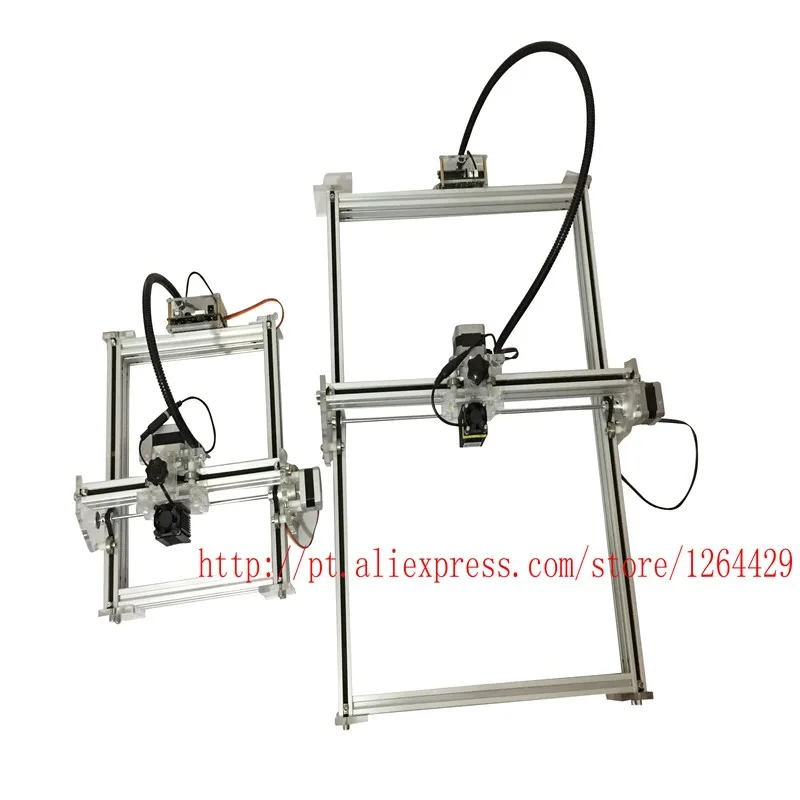

NiceBuyers reading: This machine is a full set of parts, required installed on their own, giving the purchaser to install software and tutorials parameter: 1. The software can directly import pictures, enter text, support cad, dxf format 2. Support low light software, software adjust laser power Advantage: 1, the maximum engraving an area to achieve 65* 50CM ,height Unlimited 2, no mobile gantry engraving table, does not limit the size of the object to be engraved height, can be placed directly on top of work * (such as directly on the table carving the desktop) 3, aluminum material, acrylic produced4, the software is easy to use, free upgrades for life. 5,it can adjust laser power by softwareThis paragraph engraving laser engraving machine is not available the following materials: Metal (steel ,stainless ), ,stone, ceramics, jewelery, reflective material, a colorless transparent material, soft material This paragraph laser engraving machine can engrave the following materials: Wood, plastics, paper, bamboo, horns, and some cortex (purse), cell phone plastic shell, rubber stamp, photosensitive chapter, sponges, paper ​ It can cut plywood 3mm for 3 times Shipping list: A complete machine A laser protective eyewear A power supply A USB computer connection line A set of Wrench Product detail drawings

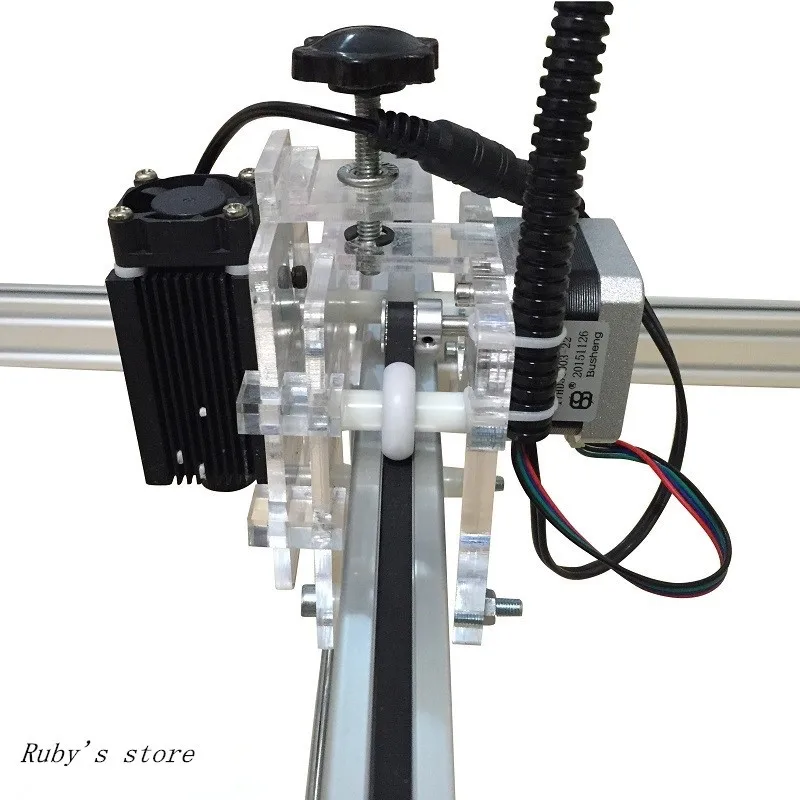

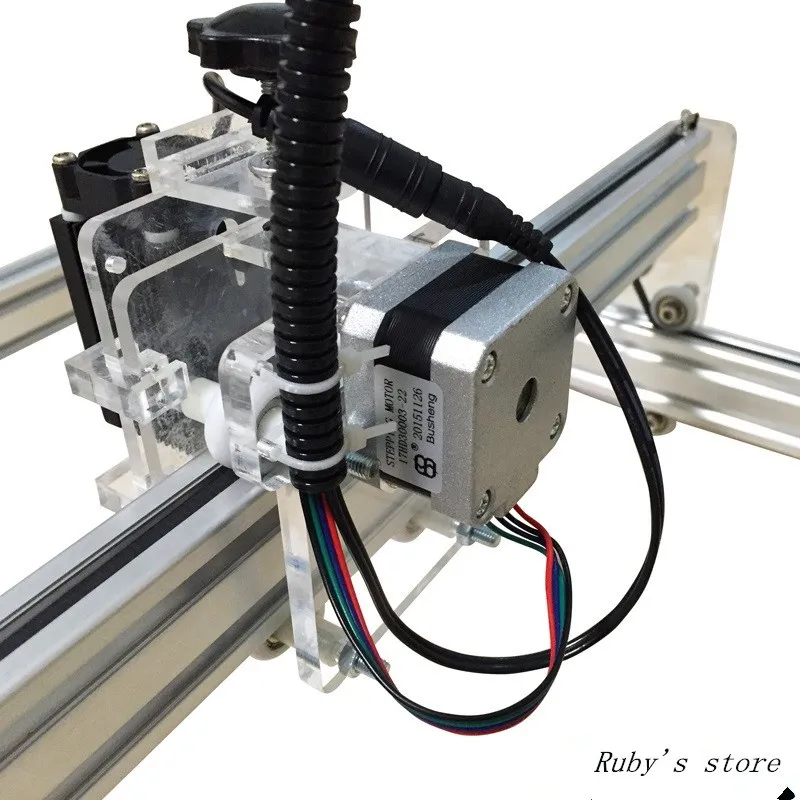

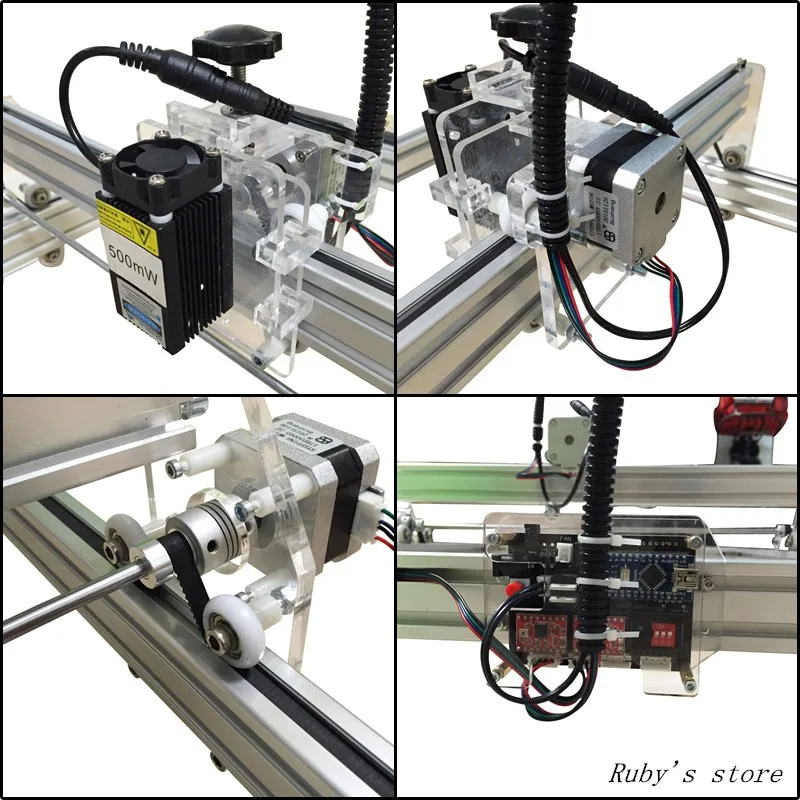

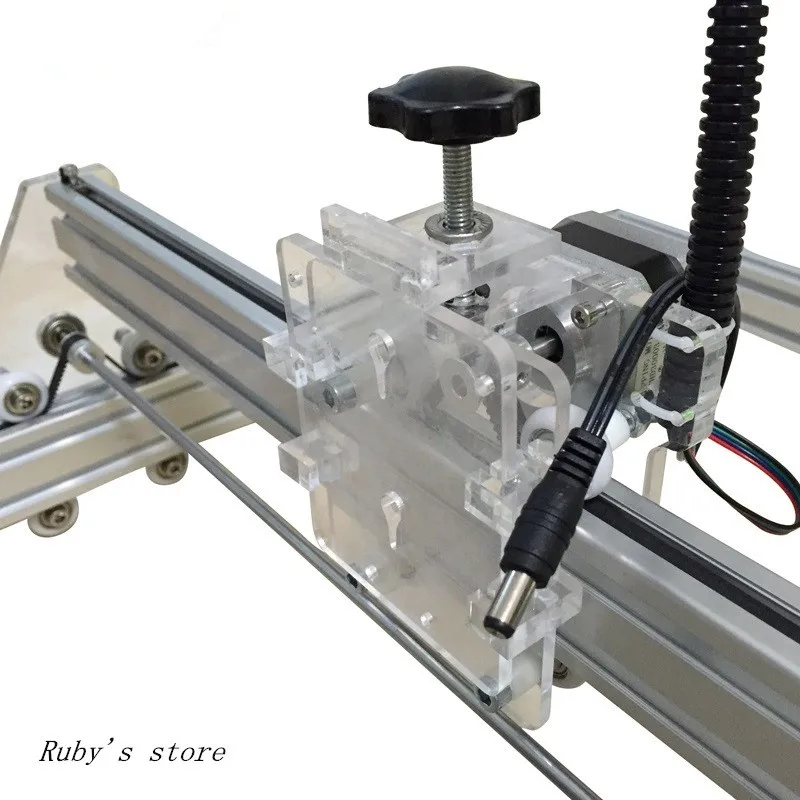

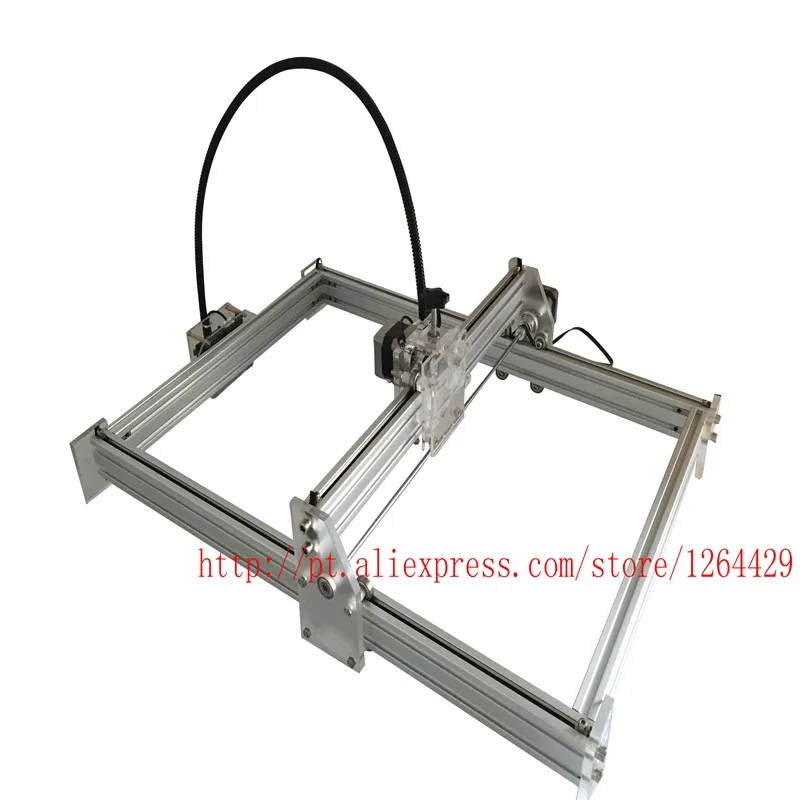

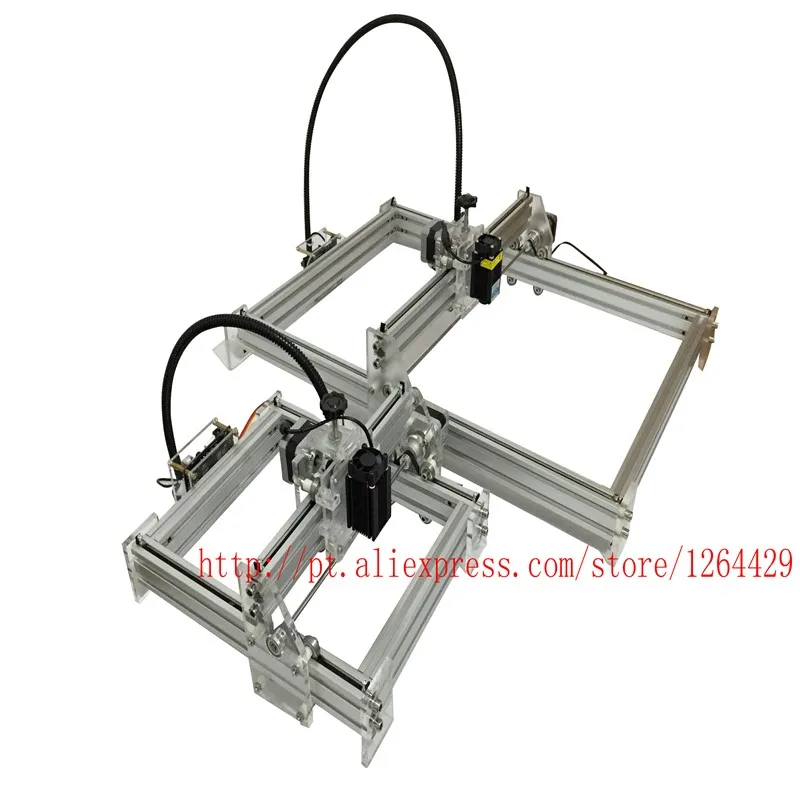

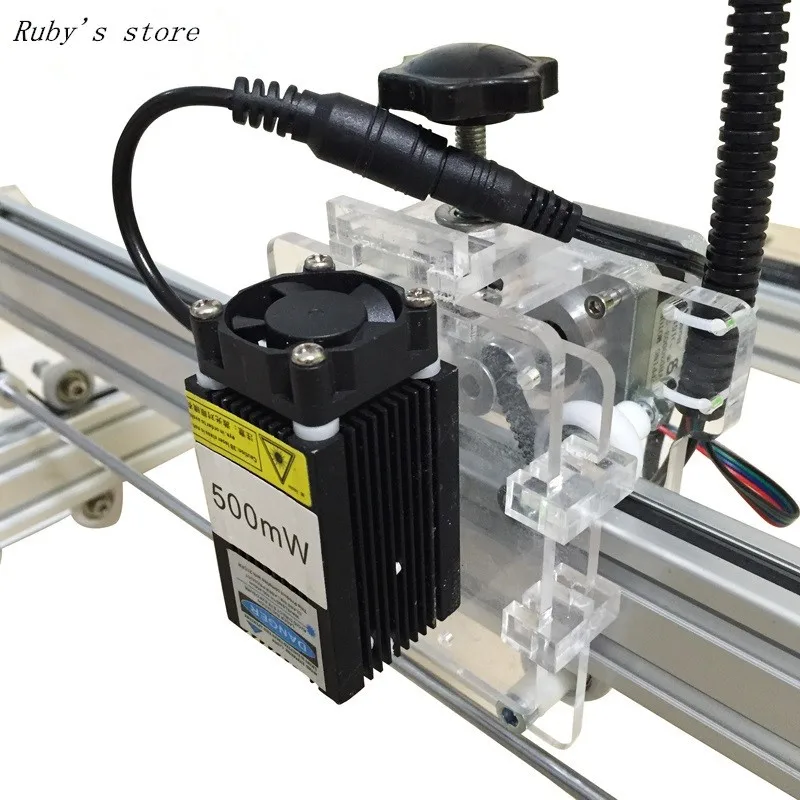

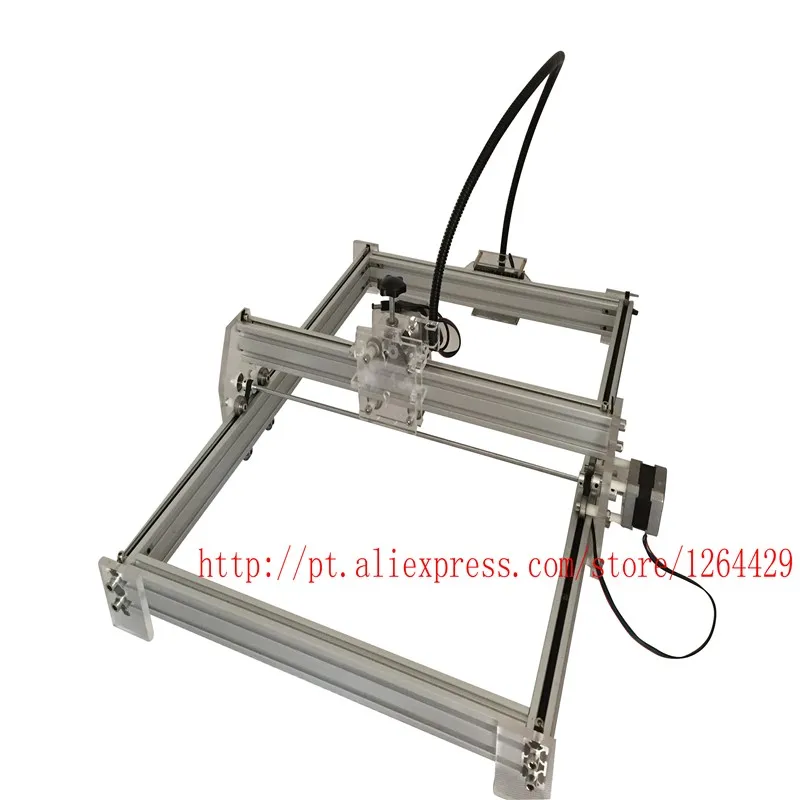

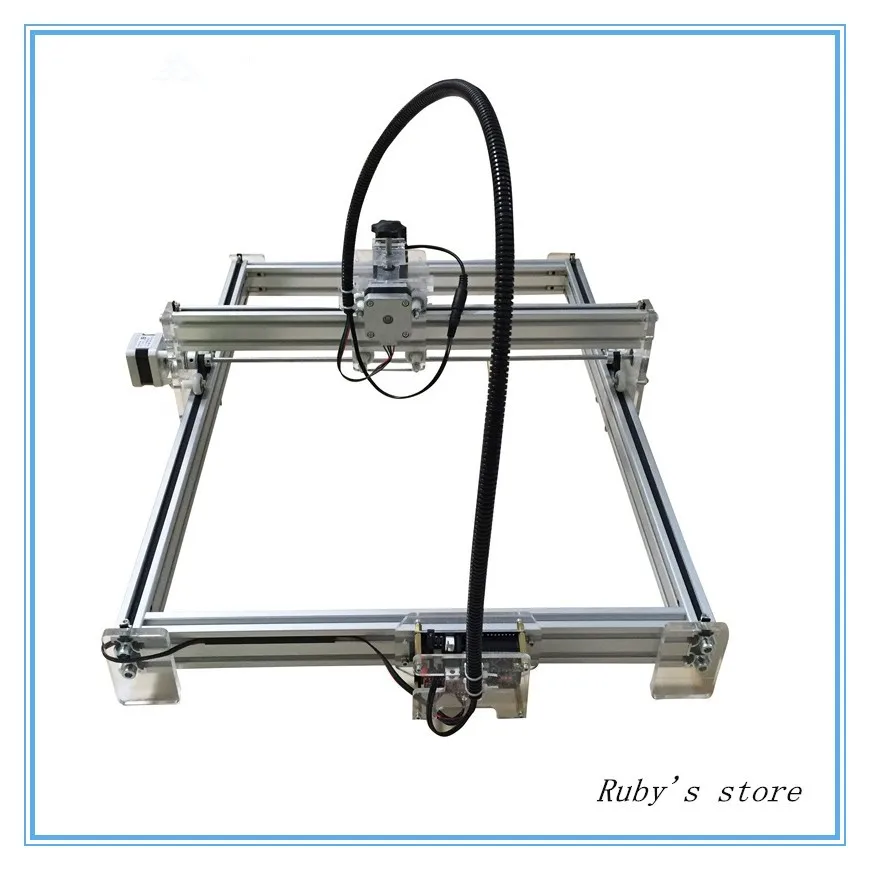

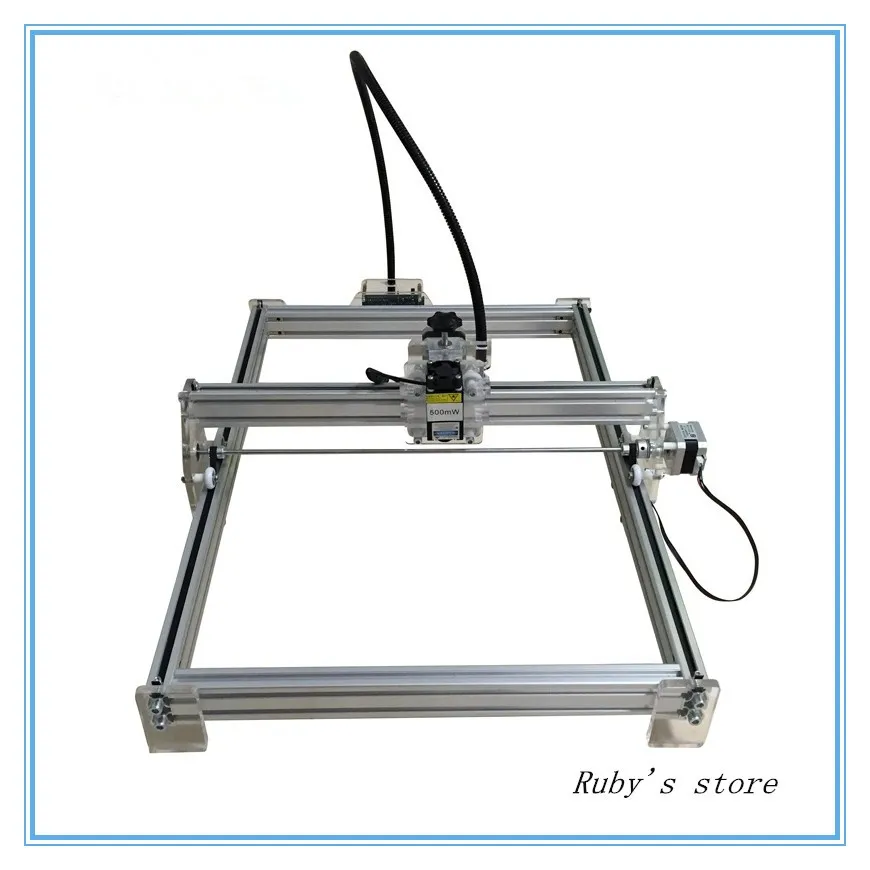

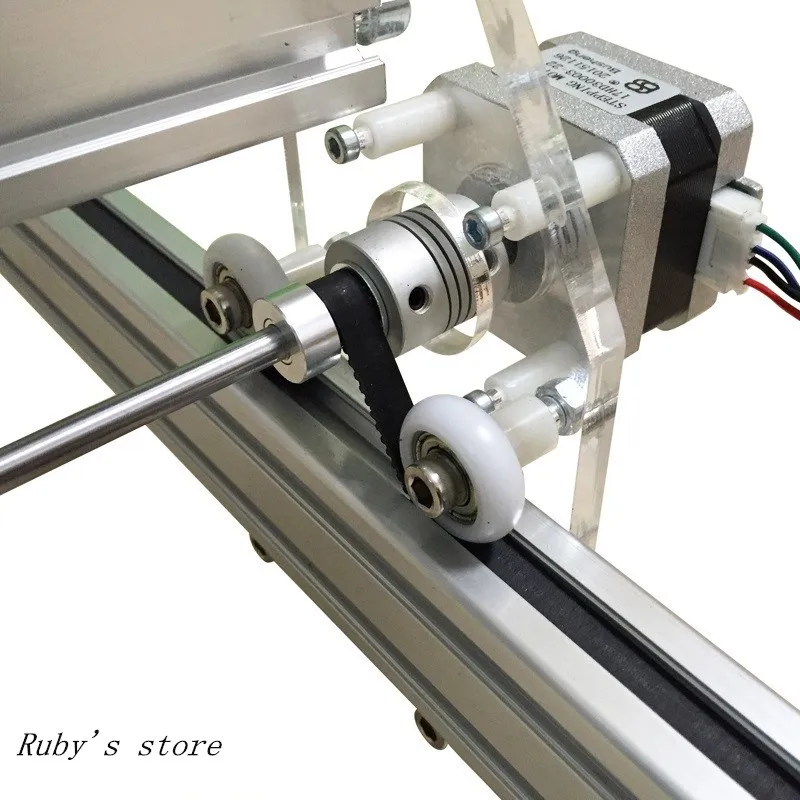

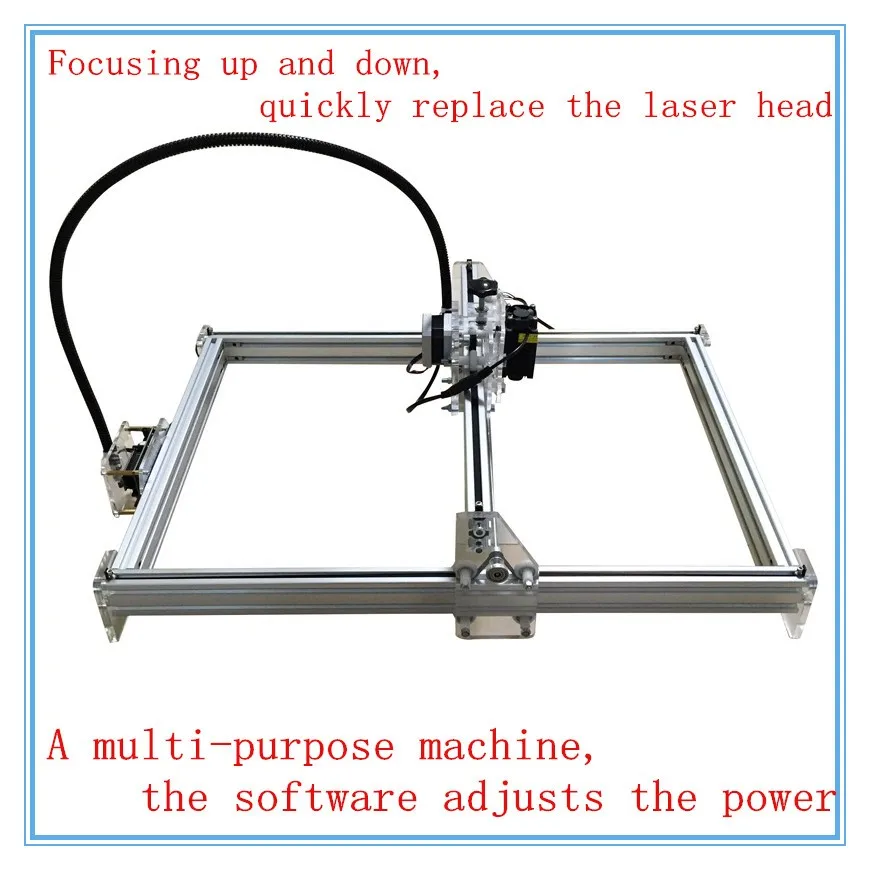

machine data: Equipment size: 620MM * 440MM * 205MM (L * W * H) Engraving area: 350MM * 500MM Laser power: 100mw / 200mw / 300mw / 500mw / 1000mw / 1600mw / 2500mw (support for more power) Laser Power: 12V (random switching) Input voltage: 12V Number of axes: X axis dual Y-axis (the axis control panel supports 3) Accuracy: 0.1MM Main features: low light positioning engraving preview, gray engraving, contour carving, engraving entity Product advantages: 1, the power transfer software that supports 100mw / 200mw / 300mw / 500mw / 1000mw / 1600mw / 2500mw 2, rapid replacement of the laser head design + adjustable focal length of the upper and lower design 3, the maximum engraving area of 35 * 50CM 4, thick acrylic + aluminum material production, but also on the appearance of tall solid 5, the software is easy to use, free upgrades for life. 6, dual-motor design more compact and more precise 7, carving unlimited object height, can be placed directly on top of work * (such as directly on the table carving the desktop) 8, parts shipped ,after receipt of the goods need to be assembled before use on their own Note: To avoid burn circuit boards, before shipment we will unplug the X, Y axes two lines. After receipt of the pro-marked in accordance with the wiring can be inserted. This paragraph engraving laser engraving machine is not available the following materials: Metals (regardless of thickness), stone, ceramics, jewelery, reflective material, colorless, transparent materials, soft materials This paragraph laser engraving machine can engrave the following materials: Wood, plastic, paper, bamboo, horns, some cortex (purse), plastic phone shell, rubber stamp, photosensitive chapter, sponges, paper Shipping list:A Machine A power supply, A Data line A protective glasses A set of Hex wrench Effects Legend:

Note:
1. Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin!
2. This is a whole assemble set and needs to assemble by your own.
3. Please note that the laser module should work less than half an hour per time, and then work again after cooling down.
4. The warranty period of laser module is one month. If you have any quality problem(Except individual situation like using the laser
module more than 30 minute one time and casue the damage ), please feel free to ask our customer service for a help. Thank you.
5. If you have any quality problem about the machine, please feel free to contact us. Many operative problem can be solved according
to your video. It can effectively save your time and energy if you send the video to us with the problem description. Thank you in advance.

FAQ:

1. How to assemble the kit?
The assemble and connection manual will be sent to your email

2. What software can support this machine? And what image format? Engrave Mode?
Supported Software: ,, T2-Laser, , GrblController, LiteFire, Laser GRBL, etc.
Supported Image Format: jpg, bmp, svg, G-code
Supported Engrave Mode: Photo, Word, Scan, Outline, Pixel Laser Engraving

3. What system can the EleksCAM support?
PC Win XP 7/8/10 , Laptop is ok,too.

4.My laser doesnt work, what should I do?
If the machine does not work, it might because:
① Laser module/ driver board/motor/power supply is broken.Please check which part is the main problem,and then send us a video to prove it.
Or you can send us a video about your software setting,working laser and driver board. We will analyze it and give you a solution.
② The kit misses some accessories.Please compare with the instruction and tell us, we will send it to you for free.
③ The wire connection is wrong.Please check the connection like the picture shown.
④ Your computer could not support the software.Please use Win XP 7/8/10 to check it.
⑤ Software problem.Please check whether wires are inserted rightly. And then check your data setting.

5: My software shows: Not data, what should I do?
There might be two reasons.
① You did not open Administrator privileges to run the software. Please try this.
② Your computer architecture is incomplete:check whether VC ++ and. Net and directX are installed, and have to turn off the virus.

6. Can I regulate the laser power or the laser power is adjustable?

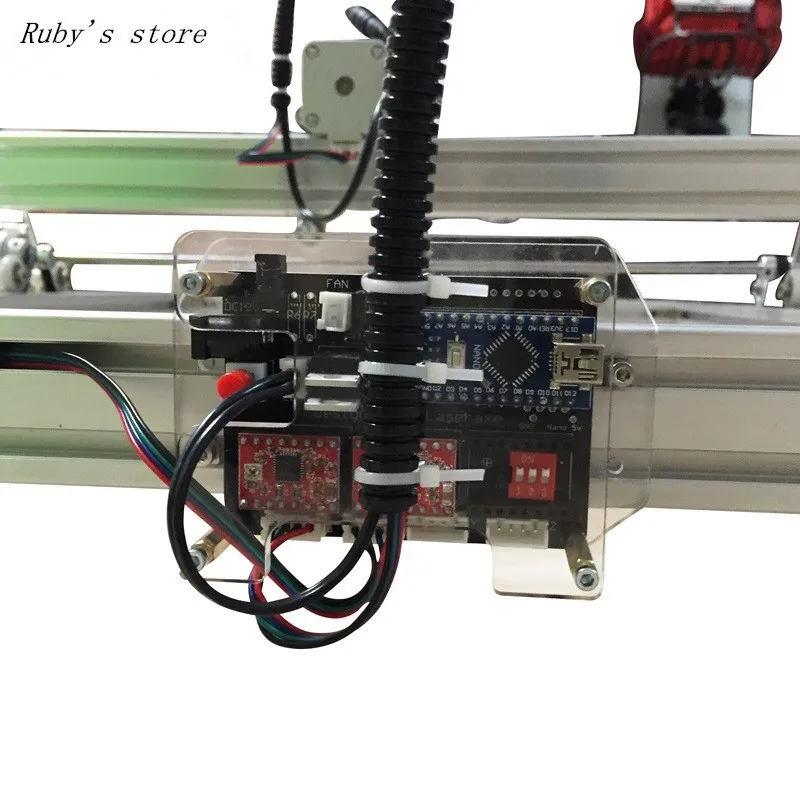

Our new Mana SE controller board can adjust the power. Please download our ElekesCAM software to do it.

7. Can I upgrade stronger power laser module by myself? Can I extent rail frame?
Yes,you can.DC12V laser module can be installled on this machine. The red is positive.You can also extent the frame by yourself,
but we do not provide rails. Please note that.

8. If my laser is broken and I might find the reason(Or I could not find) . What should I do?
① Find the reason: Take a video to prove the part is broken and then send it to us. we will give you a solution according to your video.
② Could not find the reason : Check the Question 4 first. If the problem could not be solved, please feel free to contact our customer
service with a video to my email.The video should contain software setting, broken part details and the power-on machine.
We will solve it asap.
