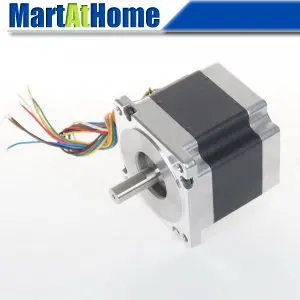

Leadshine 86HS45 2-phase Hybrid Stepper Motor NEMA 34 637.2 Oz-in 8-leads #SM364Matching these Stepper Drives:
/ / / / / / / / /
MA860 / H850 / / / / / M535 / MD2278
(Click the model to read and order it )
The 86HS45 two-phase stepper motor is suitable for a wide range of motion control applications. Terminated with 8 motor leads, the motor can be connected in a few different ways, including bipolar series, bipolar parallel and unipolar.
- 2-phase hybrid step motor;
- High torque design;
- Standard NEMA 34 dimensions;
- Series or parallel and unipolar wiring;
- Optimized for microstepping
Specifications
General
| Step Angle | 1.8° |
| Step Angle Accuracy | +5%(full step, no load) |
| Temperature Rise | 80°CMax |
| Ambient Temperature | -10°C -- +50°C |
| Insulation Resistance | 100M?min.500VDC |
| Dielectric Strength | 500VAC for one minute |
| Shaft Radial Play | 0.06 Max.(450g-load) |
| Shaft Axial Play | 0.08 max.(450g-load) |
| Number of Leads | 8 |
| Model Number | Connection | Holding Torque Oz-in (Nm) | Phase Current (Amps) | Phase Resistance (Ohm) | Phase Inductance (mH) | Rotor Inertia Oz-in-sec2 (g*cm2) |
| 86HS45 | Bipolar (Parallel) | 637.2(4.5) | 6.0 | 0.375±10% | 3.4±20% | 0.01988(1400) |
| Bipolar (Series) | 637.2(4.5) | 3.0 | 1.5±10% | 13.6±20% | ||
| Unipolar | 453.12(3.2) | 4.2 | 0.75±10% | 3.4±20% |
Typical Connection
Mechanical
Speed-Torque Curve
Unipolar and bipolar half coil, because we?re using less turns, doesn?t give us great low speed torque, but because of the low inductance, holds the torque out to high speeds. Bipolar series uses the full coil so it gives very good low speed torque. But because of the high inductance, the torque drops off rapidly. Bipolar parallel also uses the full coil so it gives good low speed performance. And its low inductance allows the torque to be held out to high speeds. But remember, we must increase current by 40% to get those advantages.
Speed-torque curves show the maximum torques that can be output at a given speed. When selecting a motor, make sure the required torque falls within the particular curve.
