Wonderful Discount FTTx Fusion Splicing Machine KOMSHINE GX36 Cleaver+QX50-M 850/1300 nm 21/19dB OTDR+optical power meter+Laser Source+VFL

Wonderful Discount FTTx Fusion Splicing Machine KOMSHINE GX36 Cleaver+QX50-M 850/1300 nm 21/19dB OTDR+optical power meter+Laser Source+VFL Widhiarta Aditif Rating: 4.4 out of 5

Popular Laser Choice Product provide 3d laser,laser flashlight,laser led,laser meter,laser pointer Wonderful Discount FTTx Fusion Splicing Machine KOMSHINE GX36 Cleaver+QX50-M 850/1300 nm 21/19dB OTDR+optical power meter+Laser Source+VFL. Price at this time US $2900.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in Trusted Seller Store!

Fantastic goods can enhance the top quality of your life. Qualified to be acquired. Low-cost cost and complimentary shipping. Allow's purchase Flash Deal Wonderful Discount FTTx Fusion Splicing Machine KOMSHINE GX36 Cleaver+QX50-M 850/1300 nm 21/19dB OTDR+optical power meter+Laser Source+VFL before rates increase.

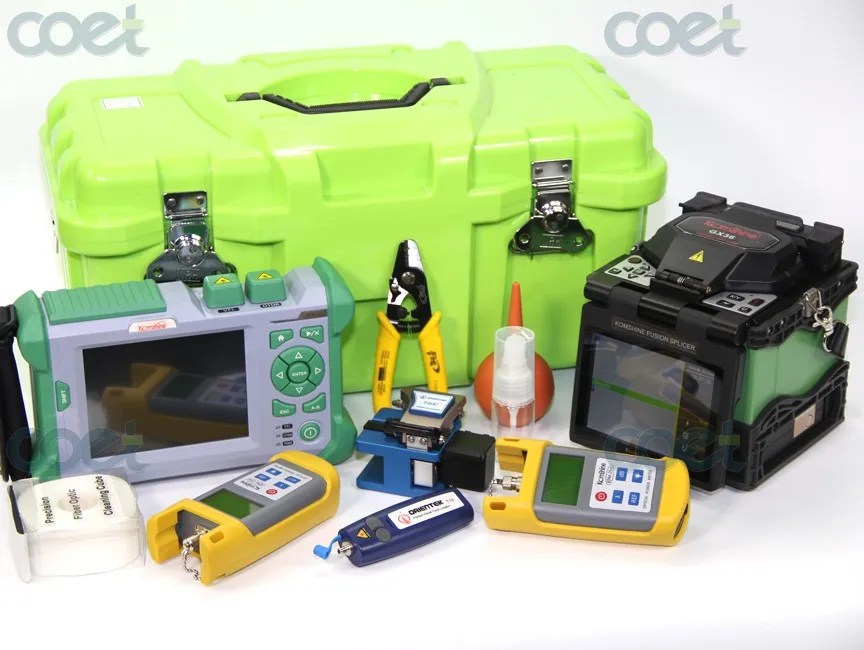

KomShine GX36 Fusion Splicer Kit w/ KFC-33 Fiber Cleaver

Q50-M MM 850/1300nm 21/19dB OTDR

Optical Power Meter + Optical Light Source + Visual Fault Locator

*All the items come with 1-Year-Warranty*

*All the items come fully Calibrated*

1. Komshine GX36 Fusion Splicer Kit including:

• GX36 Fusion Splicer

• High Precision Sumotomo FC-6S Cleaver

• High Precision Fiber Stripper

• Battery Built-in

• AC Adapter/battery charger

• Power Cable

• Spare Electrodes

• Carrying Case

• Cooling Tray

• Fusion Splicer Protection Sleeves 500pcs

• 1 Year Warranty

Specifications:

Applicable Fibers	SM / MM / DS / NZDS / BIF & UBIF (G.657)
Average Loss	0.02dB(SM) / 0.01dB(MM) / 0.04dB(DS) / 0.04dB(NZDS) / 0.02dB(G.657)
Return Loss	>60dB
Operation Methods	Auto, Manual
Typical Splicing Time	9s
Typical Heating Time	28s
Fiber Alignment	Core Alignment / Clad Alignment
Fiber Diameter	Cladding: 80~150 um / Coating: 100~1000 um
Cutting Length	8~16mm(Fiber diameter: <250um) / 16mm(Fiber diameter: 250~1000um)
Magnification	X or Y: 310X / X + Y: 155X
LCD Display	High performance 3.7 inch. TFT LCD / 640x480 resolution
Tension Test	2N
Applicable Sleeve	60mm / 40mm / 20mm or etc.
Battery Capacity	Average:200 cycles (Splicing and Heating) Charging time: 3 hours
Battery Life Cycle	300~500 charge / discharge cycles
Electrode Life Cycle	Typical 3000 times
Power	Removable battery : 11.1V 8800mAH AC/DC adapter: input:AC100-240V output:DC13.5V/5.0A
Working Environments	Temp: -10C~+50C Humidity: 95%RH Elevation: 0~5000M
Dimension	L×W×H=135×160×150(mm)
Weight	1.8 KGs (without battery), 2.3 KGs (with battery)

2.KOMSHINE QX50 MM 850/1300nm 21/19dB OTDR With FC/UPC+SC

/UPC+LC/UPC Connectors:

• Model	=	QX50-M
  Wavelength(nm)	=	850/1300nm
  Dynamic range(dB)	=	21/19dB
  Pulse width (ns)	=	5,20,40,80,160,320,640,1280,2560,5120,10240,20480
  Display	6.5 inch TFT LCD touch screen
  Event blind zone (m)	=	3
  Attenuation blind zone (m)	=	13
  Linearity (dB/dB)	=	±0.05 dB/ dB
  Loss threshold (dB)	=	0.05
  Loss resolution ratio (dB)	=	0.01
  Sampling resolution ratio (m)	=	0.125 to 8
  Sampling point	=	32k
  Distance uncertainty (m)	=	±(1 m + 5×10-5× distance + sampling interval)
  Distance scope (km)	=	0.3 to180
  Memory capacity of trace	=	SD Card (4G), > 10000 pieces
  Duration of measurement	=	Defined by user; 5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min are selectable
  Optical interface	=	FC/UPC+SC/UPC+LC/UPC
  Data interface	=	USB interface, SD card interface
  Visual Fault Locator	=	Available
  Power supply	=	Lithium battery; continuing working duration ≥ 8 hours
  Warranty period	=	12 months

  Standard Package:

  QX50 OTDR

  FC+SC+LC UPC Connectors

  SM Fiber Optic Patch Cord FC-SC 1M

  Testing & Calibration Report

  AC/DC adapter

  Quality certification

  Trace analyzing software(CD)

  Internal Battery

  User Manual

  Carrying Case

NOTICE:

1. Buyer is responsible for the custom duty and local import taxes;

2. Important!!! Dear Brazil customer, please leave your CPF or CNPJ number after

placing the order.

3. Ordering more than 10 sets: contact me to get a huge discount!!! Komshine SM Single Mode OTDR QX50-S OTDR Optical Fiber Ranger JW3304A KOMSHINE QX-50-P1 PON OTDR Tester Machine KOMSHINE GX36 Optical Fiber Fusion Splicer KOMSHINE FX35 Digital Single Fiber Fusion Splicer
