60W Power Supply for CO2 Laser Tubes.

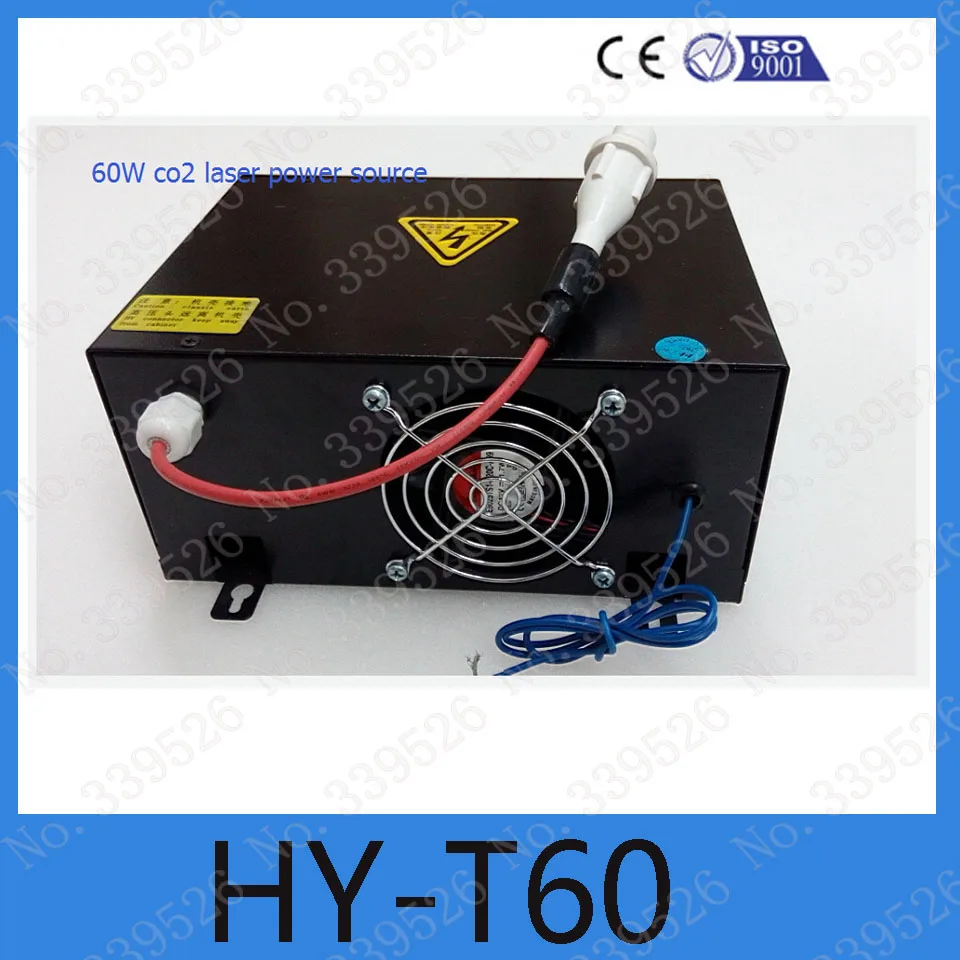

HY-T60 60w co2 laser power source power box for co2 laser engraving and cutting machine
Model: HY-T60
Model: HY-T60 for 40w,50w, 60w Co2 Laser Tubes
Alias: Co2 Laser Generator, Co2 Laser Source, Co2 Laser Device,High Voltage Power Supply
HY-T60 Laser Power Supply is used for 40W,50W,60W Cutting and Engraving Acrylic, Fabric, Double Color Sheet and Rubber, ect.
1 Good compatibility: It can be applicable to 60W,50W,40W laser tubes from different manufacturers.
2 Cutting Type and Sculpting Type: The cutting type has a good power stability and strong adaptability; while the sculpting type has a quick response speed and good engraving effect.
3 Dramatically lengthen the service life of laser.
4 Easy Control: The start and stop of laser can be easily controlled by TTL level. And there are protection switch to test the external water, ventilation, etc.
5 Easy control of laser power: Both 0-5V analog signal and PWM signal can control the laser power.
6 HY-T60 Power Supply has the function of open circuit protection: Under the condition of good protective earthing, the power supply can work in open-circuit condition for a short time, which could avoid the damage of laser power supply because of the bursting of laser tube, thereby enhancing the life of power supply.
7 The power supply can take feedback interface which can be used in closed-loop control and testing the working current of laser.
8 The power supply adds a new function, that is timely scene judging which part is damaged, laser tube or laser power.
9 Application: Acrylic sculpture, cut; fabric sculpture, cut; rubber sheet sculpture, cut, etc.
Input Voltage | Input Voltage | AC220V or AC110V | |
AC Frequency | 47-440Hz | ||
Cold surge current | ≤60A(AC220V input) | ≤30A(AC110V input) | |
Leak current | ≤0.7mA(AC220V input) | 0.4mA(AC220V input) | |
Output | Max output Voltage | DC 35KV | |
Max Output current | DC 23mA | ||
Efficiency | when≤90%load down | ||
Time no-failure | ≤10000 hours | ||
Response speed | ≤1ms(the time from output of switch signal to 90%of initial setting current) | ||
Control port | TLL electricity level switch control, valid electricity has high/low level choices | ||
Vollage-resisting | Input-Output ,input-machine hull: 1500V 10mA 60s AC output cathode and machine hull connection | ||
Protection | Can be used an opening way in a short time request the outer shell be good to connect the ground avoid arcing between anode and machine hull connection in the machine | ||
Usage environment | Work temperatureL-10-40) Relative humidity:≤90% | ||
Cooling Type | The compuisive air cooling | ||
size | L×W×H=210×160×95 mm | ||
Weight | 4kg | ||
Color | Black | ||
Connection between power supply and laser device
If you need the details of the following content, please contact the online service.
Instruction
Wiring diagram and terminator direction of power supply and laser
Connection diagram of power supply and control board.
The approach of exam the normality of power supply without control board.
Flow diagram of timely scene judging the laser power supply
Regular failure’s test and elimination
