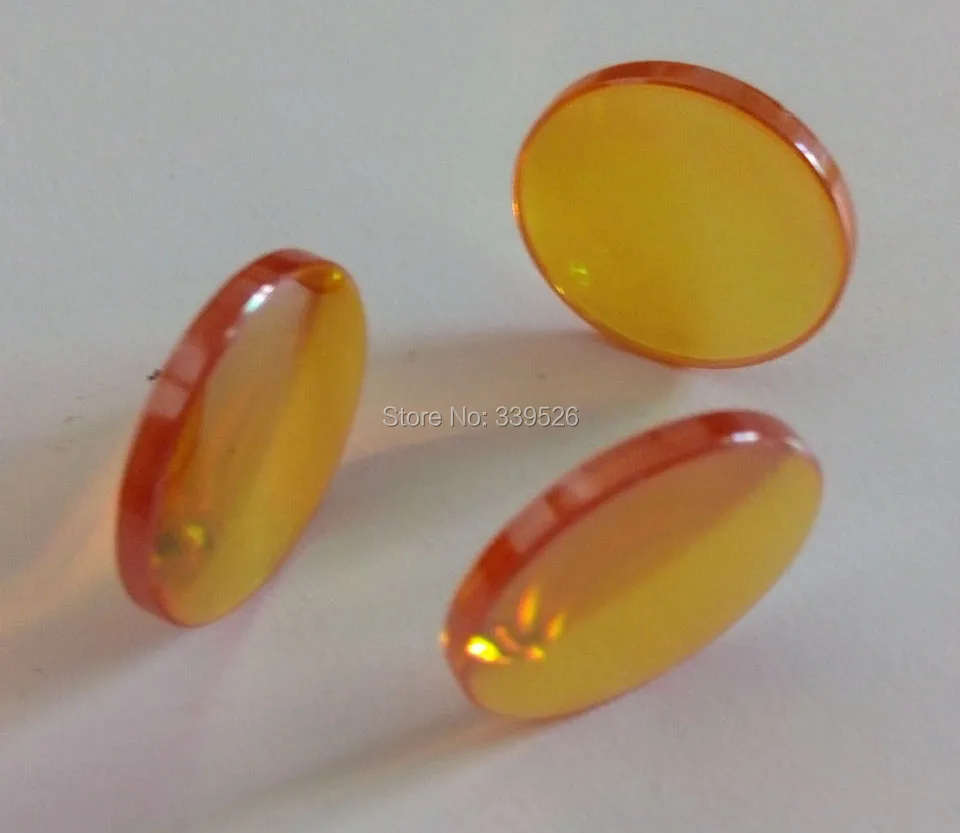

co2 laser focusing lens 20mm diameter 101.6mm focus distance for co2 laser engraving and cutting machine
High quality znse laser focus lens for co2 laser engraving and cutting machine
Co2 laser focus lens .
Co2 laser focus lens used in laser cutting , laser welding and laser engraving machines , it used to focus the laser beam into one point , and make the energy of the laser point reach a very large value ,rapidly combust of workpiece to make cutting and engraving available ,
On the market focus lens is distinguished by two structure : meniscus and plano convex ,Becuse meniscus lens has a better at focusing , so with the same price we recommend customer to used crescent-shaped lens .
1.co2 laser focus lens 20mm diameter 101.6mm focal length 2.for co2 laser engraving and cutting machine 3.ZnSe material 4. other model numberIs Co2 laser Focus lens | |||||||
Diameter | Focal Length | Edge Thickness | Structure | Material | |||
mm | inch | mm | inch | mm | inch | ||
12 | 0.47 | 50.8 | 2 | 2 | 0.08 | ,Meniscus | ZnSe(USA) |
15 | 0.59 | 38.1 | 1.5 | 2 | 0.08 | ,Meniscus | ZnSe(USA) |
50.8 | 2 | 2 | 0.08 | ,Meniscus | ZnSe(USA) | ||
63.5 | 2.5 | 2 | 0.08 | ,Meniscus | ZnSe(USA) | ||
75 | 3 | 2 | 0.08 | ,Meniscus | ZnSe(USA) | ||
101.6 | 4 | 2 | 0.08 | Meniscus | ZnSe(USA) | ||
127 | 5 | 2 | 0.08 | Meniscus | ZnSe(USA) | ||
190.5 | 7.5 | 2 | 0.08 | ,Meniscus | ZnSe(USA) | ||
18 | 0.71 | 38.1 | 1.5 | 2 | 0.08 | Meniscus | ZnSe(USA) |
50.8 | 2 | 2 | 0.08 | ,Meniscus | ZnSe(USA) | ||
63.5 | 2.5 | 2 | 0.08 | ,Meniscus | ZnSe(USA) | ||
75 | 3 | 2 | 0.08 | ,Meniscus | ZnSe(USA) | ||
101.6 | 4 | 2 | 0.08 | Meniscus | ZnSe(USA) | ||
127 | 5 | 2 | 0.08 | ,Meniscus | ZnSe(USA) | ||
190.5 | 7.5 | 2 | 0.08 | ,Meniscus | ZnSe(USA) | ||
19.1 | 0.75 | 38.1 | 1.5 | 2 | 0.08 | ,Meniscus | ZnSe(USA) |
50.8 | 2 | 2 | 0.08 | ,Meniscus | ZnSe(USA) | ||
63.5 | 2.5 | 2 | 0.08 | ,Meniscus | ZnSe(USA) | ||
75 | 3 | 2 | 0.08 | ,Meniscus | ZnSe(USA) | ||
101.6 | 4 | 2 | 0.08 | ,Meniscus | ZnSe(USA) | ||
127 | 5 | 2 | 0.08 | Meniscus | ZnSe(USA) | ||
190.5 | 7.5 | 2 | 0.08 | ,Meniscus | ZnSe(USA) | ||
20 | 0.79 | 38.1 | 1.5 | 2 | 0.08 | ,Meniscus | ZnSe(USA) |
50.8 | 2 | 2 | 0.08 | Meniscus | ZnSe(USA) | ||
63.5 | 2.5 | 2 | 0.08 | ,Meniscus | ZnSe(USA) | ||
75 | 3 | 2 | 0.08 | ,Meniscus | ZnSe(USA) | ||
101.6 | 4 | 2 | 0.08 | ,Meniscus | ZnSe(USA) | ||
127 | 5 | 2 | 0.08 | ,Meniscus | ZnSe(USA) | ||
190.5 | 7.5 | 2 | 0.08 | Meniscus | ZnSe(USA) | ||
25.4 | 1.00 | 50.8 | 2 | 2 | 0.08 | Meniscus | ZnSe(USA) |
38.1 | 1.5 | 127 | 5 | 7.87 | 0.31 | Meniscus | ZnSe(USA) |
190.5 | 7.5 | 7.87 | 0.31 | ,Meniscus | ZnSe(USA) | ||
5. payment term :
we accept online western union t/t
Shipment http://www.aliexpress.com/store/339526
1.All items we sell are in good quality and under strict examination before shipment . We will try our best to avoid any quality problem .
2.Item are only shipped after full payment is cleared
3.We will ship to the address which you leave in aliexpress , when you want to change address ,please inform us before the shipment , otherwise we are not responsible for wrong or undeliverable address
4.We ship items mainly by china post mail or DHL FedEx and EMS .
5.The shipping cost does not include any import taxes , buyer should be responsible for customs duty , and we can write low value on the invoice ,if you need .
6.We are responsible for the china customs problem . Buyer should be responsible for the destination customs problem .
Warranty &return
1. We offer 1 month free replacement .Buyer may request for a replacement within 15 days from your receipt of the product , The buyer should return the product in the original condition to us and should bear the shipping cost for return and reshipping
2. Before returning the item ,please confirm the return address and the logistic method with us , After you send the item to the logistic company , please send us the tracking number .As soon as we receive the item , we will repair or exchange ASAP
Feedback http://www.aliexpress.com/store/339526
1. Your satisfaction and positive feedback is very important to us ,please leave positive feedback and 5 star , if you are satisfied with our items and service .
2. If you have any problem with our items or service , please be free to contact us first before you leave negative feedback ,we will do our best to solve any problem and provide you with the best customer service
Clean lens, must be very careful, before cleaning, please look at the following notice:
1. Take lens must wear gloves or rubber gloves, because the dirt and oil droplets on the hand can contaminate the lens, cause performance decline.
2. Dont use any tool to take the lens, such as tweezers, etc.
3. Put the lens on paper, in order to avoid damage.
4. Dont put the glasses on rough or hard surface, infrared lens is easy to scrape.
5. Pure gold or pure copper surface dont clean and touch.
First step :clean the soft light pollutants (dust, the floe content)
Use the air ball blowing off the surface of the lens skimmer, if cannot blow off the pollutant, continue to the second. Note: do not use compressed air of the factory, because it contained a lot of water and oil, oil and water In the membrane of the surface can form the absorption of harmful film.
( the lens with a mirror only need the first step)
Second step :gently clean light pollutants (dust, fingerprint)
Wet the swab or tampon with Sprinkled pure cotton, gently scrub the surface, attention to avoid the hard scrub. Across the surface as quickly as possible, beneficial to the liquid evaporated, not to leave stripe.
If this step cant remove dirt, continue to the third step.
Note:
1) Use the handle paper and high quality cotton for surgery.
2) recommend to use the alcohol of. reagent grade.
The third step : clean the medium pollutants moderately (saliva, oil droplets)
wet the swab or cotton with White vinegar, scrubbing the surface with small force, then use a dry erase the redundant white vinegar. Then immediately wet the swab or cotton with alcohol, wipe the surface gently, wipe out the acetic acid. remained
If this step cant remove dirt, continue to step 4.
Note:
1) can only use the swab with a handle
2) use the high quality cotton for surgery
3) recommended use the acetic acid with a concentration of 6%
Absolutely cant use the fourth step of the clean operating to the new lens. The following steps used only for very dirty lens and cleaning invalid lens. If membrane layer erased, the lens will lost its Function. The color of the obvious change said the membrane of the fall off.
Fourth step a
cleaning the serious pollution of the lens strongly (splash)
For those extreme pollution lens, we use a kind of polishing compound to remove these pollutants.
shake the polishing compound uniform, take 4-5 drops to the cotton, then start to move as a circle gently. Dont press the cotton, the weight of cotton is enough. If use too much pressure, polishing Cream will soon scratch the surface. Flip the lenses frequently, avoid polishing in the same direction excessively. The polishing time should be controlled in 30 seconds. Any time, found the color change, stop Polishing at once, It explain the membrane of the external is corrosion.
Fourth step b
Wet a new cotton With distilled water , clean the surface gently ,all wet with the lens, remove residual polishing compound as much as possible. Dont let the surface become dry, this will be difficult to remove the remaining polishing compound.
Fourth step c
Wet a burred swab with alcohol quickly , clean the whole surface gently, remove residual polishing compound as many as possible.
Note: if the diameter of the lens reaches more than 2 inches, use tampon instead of a swab for this step.
Fourth step d
Wet a burred swab with alcohol, clean the surface gently Remove the polishing compound and sprinkle fine left by the last step. Do the final cleaning with alcohol, wipe away the lens with the swab gently , overlap, until the whole surface is wiped. On the final scrubbing, moving a swab slowly to ensure that the surface of the rapid drying. This can eliminate the stripes of the surface.
The fifth step : the detection of cleaned lens
The last step is in the sunshine, black background check the lens surface carefully. If discover there remain polishing compound residue, can be repeated 4 b-4 d, until it is completely clear.
Note:
some types of pollution or damage there is no way to remove, such as metal splash, dent, etc. If such pollution or damage lens are found, that means you need to replace the lens
