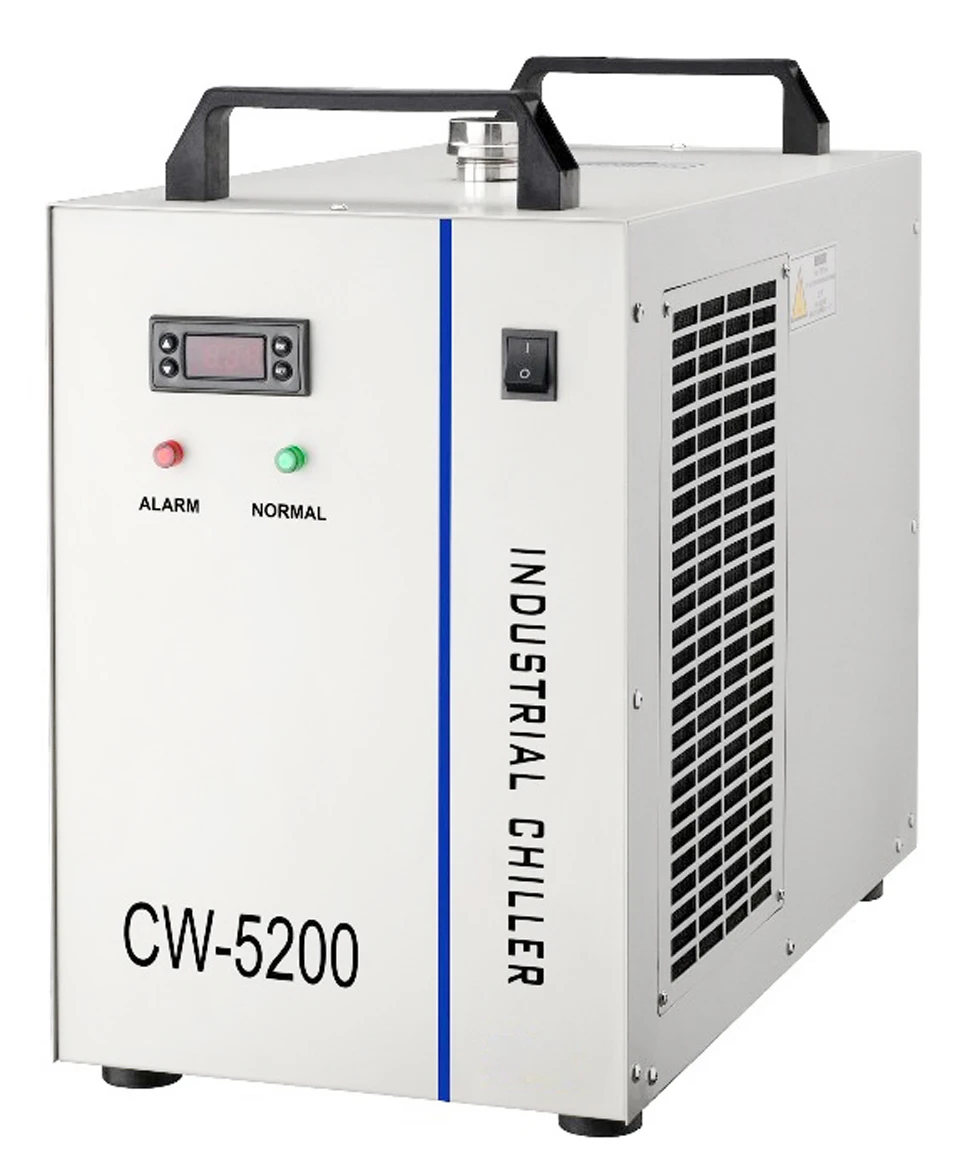

CW5202AG industry chiller double out put for co2 laser engraving and cutting machine tube two 80w

Technical Parameters:

main feature:

1. Cooling capacity of 1400W, the choice of environmentally friendly refrigerant;

2. Small size, long life and durable, easy to operate;

3. Temperature control accuracy of ± 0.3 Degrees Celsius, ± 0.1 Degrees Celsius temperature control is optional;

4. Intelligent temperature controller with two temperature control mode, for different use occasions; a variety of settings and fault display;

5. Has a variety of alarm protection: compressor delay protection; compressor over-current protection; water flow alarm; temperature high / low alarm;

6. Multi-country power supply specifications, CE certification;

7. Optional heaters and purified water quality configuration.

Technical Parameters

One-stop automatic intelligent temperature control: different environments, users do not need to change to automatically switch to the appropriate control temperature;

CW-5200AG: Can be used to cool a single 150W carbon dioxide glass tube or two 100W carbon dioxide glass tube;

CW-5200AH: It is possible to apply CNC spindle or welding equipment cooled to a single 8KW;

CW-5200AI: Can be used to cool a single 50W-75W semiconductor lasers, a single 15W-30W solid-state laser or a single 30W metal RF tube;

CW-5202 double inlet and outlet series (optional); heater (optional); purified water configuration (optional).

MODEL	CW-5200AG	CW-5200BG	CW-5200DG	CW-5200AI	CW-5200BI	CW-5200DI	CW-5200AK	CW-5200BK	CW-5200DK
Voltages	AC220~240V	AC208~230V	AC100~110V	AC220~240V	AC208~230V	AC100~110V	AC220~240V	AC208~230V	AC100~110V
Frequency	50Hz	60Hz	50/60Hz	50Hz	60Hz	50/60Hz	50Hz	60Hz	50/60Hz
Current	2.4~3.1A	2.6~3.3A	4.5~6.5A	2.4~3.1A	2.6~3.3A	4.5~6.5A	2.4~3.1A	2.6~3.3A	4.5~6.5A
Compressor power	0.52kw	0.5kw	0.68kw	0.52kw	0.5kw	0.68kw	0.52kw	0.5kw	0.68kw
	0.71HP	0.68HP	0.93HP	0.71HP	0.68HP	0.93HP	0.71HP	0.68HP	0.93HP
Refrigeration capacity	5084Btu/h	4982Btu/h	5186Btu/h	5084Btu/h	4982Btu/h	5186Btu/h	5084Btu/h	4982Btu/h	5186Btu/h
	1.49kw	1.46kw	1.52kw	1.49kw	1.46kw	1.52kw	1.49kw	1.46kw	1.52kw
	1281kcal/h	1256kcal/h	1307kcal/h	1281kcal/h	1256kcal/h	1307kcal/h	1281kcal/h	1256kcal/h	1307kcal/h
Refrigerant	R-22/R-410a
Refrigerant charge	360g	380g	350g	360g	380g	350g	360g	380g	350g
precision	+/-0.3oC
reducer	capillary
protection	Over current protection for compressor, flow alarm,over temperature alarm
Pump power	0.03kw			0.1kw			0.05kw
Water tank capacity	6L
Outlet and inlet	Outside dimensions 10mm diameter brass connector						Inside 8mm diameter speedy connector
Max lift	10M			25M			70M
Max flow	10L/min			16L/min			2L/min
N.W	30Kg						33Kg
G.W	35Kg						38Kg
Dimensions	55 X 28 X 43 cm (L X W X H)
Packing dimensions	72 X 44 X 62 cm (L X W X H)
