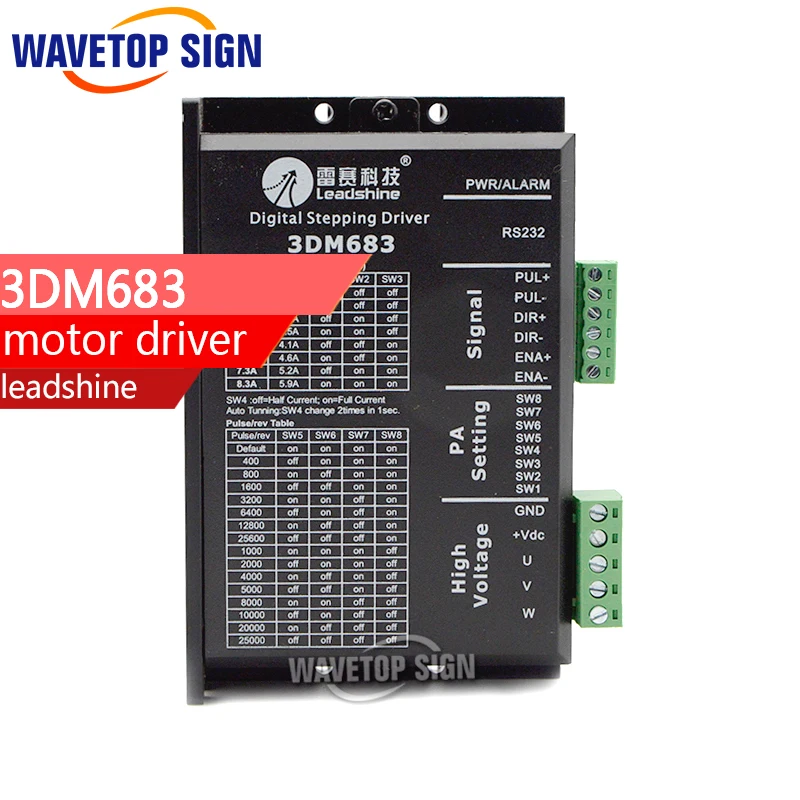

The 3DM683 is a versatility fully digital stepping driver based on a DSP with advanced control algorithm. It brings a unique level of system smoothness, providing optimum torque and nulls mid-range instability.
Motor self-test and parameter auto-setup technology offers optimum responses with different motors and easy-to-use.
The driven motors can run with much smaller noise, lower heating, smoother movement than most of the drives on the markets. Its unique features make the 3DM683 an ideal solution for applications that require low-speed smoothness.
Electrical Specifications
Min Output current : 0.5 A Max Output current: 8.3 (5.9 RMS)A
Min Supply voltage: +20 VDCMax Supply voltage: +60 VDC
Min Logic signal current: 7 Ma Logic signal current Typical: 10 mA
Max Logic signal current: 16 mA Min Pulse input frequency: 0 kHz
Max Pulse input frequency: 200kHzMin Isolation resistance: 500 Mohm
Typical Connections
Connector P1 Configurations
| Pin Function | Details |
| PUL+(+5V) | Pulse signal: In single pulse (pulse/direction) mode, this input represents pulse signal, effective for each rising edge or falling edge (set by inside jumper J1); 4-5V when PUL-HIGH, 0-0.5V when PUL-LOW. In double pulse mode (pulse/pulse) this input represents clockwise (CW) pulse. For reliable response, pulse width should be longer than 1.5μs. Series connect resistors for current-limiting when +12V or +24V used. |
| PUL-(PUL) | |
| DIR+(+5V) | DIR signal: In single-pulse mode, this signal has low/high voltage levels, representing two directions of motor rotation; in double-pulse mode (set by inside J1 jumper), this signal is counter-clock (CCW) pulse, effective for low level. For reliable motion response, DIR signal should be ahead of PUL signal by 5μs at least. 4-5V when DIR-HIGH, 0-0.5V when DIR-LOW. |
| DIR-(DIR) | |
| ENA+(+5V) | Enable signal: This signal is used for enabling/disabling the driver. High level (NPN control signal, PNP and Differential control signals are on the contrary, namely Low level for enabling.) for enabling the driver and low level for disabling the driver. Usually left UNCONNECTED (ENABLED). |
| ENA-(ENA) |
Connector P2 Configurations
| Pin Function | Details |
| GND | DC power ground. |
| VDC | DC power supply, (20~60)VDC, Including voltage fluctuation and EMF voltage. |
| U | Motor Phase U |
| V | Motor Phase V |
| W | Motor Phase W |
The 3DM683 uses an 8-bit DIP switch to set motor dynamic current, standstill current and microstep resolution, as shown below:
Microstep Resolution Selection
Microstep resolution is set by SW5, 6, 7, 8 of the DIP switch as shown in the following table:
| Steps/rev.(for 1.2o motor) | SW5 | SW6 | SW7 | SW8 |
| Default/Software configured,（From 200 to 102,400） | on | on | on | on |
| 400 | off | on | on | on |
| 800 | on | off | on | on |
| 1600 | off | off | on | on |
| 3200 | on | on | off | on |
| 6400 | off | on | off | on |
| 12800 | on | off | off | on |
| 25600 | off | off | off | on |
| 1000 | on | on | on | off |
| 2000 | off | on | on | off |
| 4000 | on | off | on | off |
| 5000 | off | off | on | off |
| 8000 | on | on | off | off |
| 10000 | off | on | off | off |
| 20000 | on | off | off | off |
| 25000 | off | off | off | off |
Current Settings
The first four bits (SW1, 2, 3, 4) of the DIP switch are used to set the dynamic current. Select a setting closest to your motor’s required current.
| Peak Current | RMS Current | SW1 | SW2 | SW3 |
| Default/Software | off | off | off | |
| 3.2A | 2.3A | on | off | off |
| 4.0A | 2.9A | off | on | off |
| 4.9A | 3.5A | on | on | off |
| 5.7A | 4.1A | off | off | on |
| 6.4A | 4.6A | on | off | on |
| 7.3A | 5.2A | off | on | on |
| 8.3A | 5.9A | on | on | on |
Mechanical Specifications (Unit: mm)
