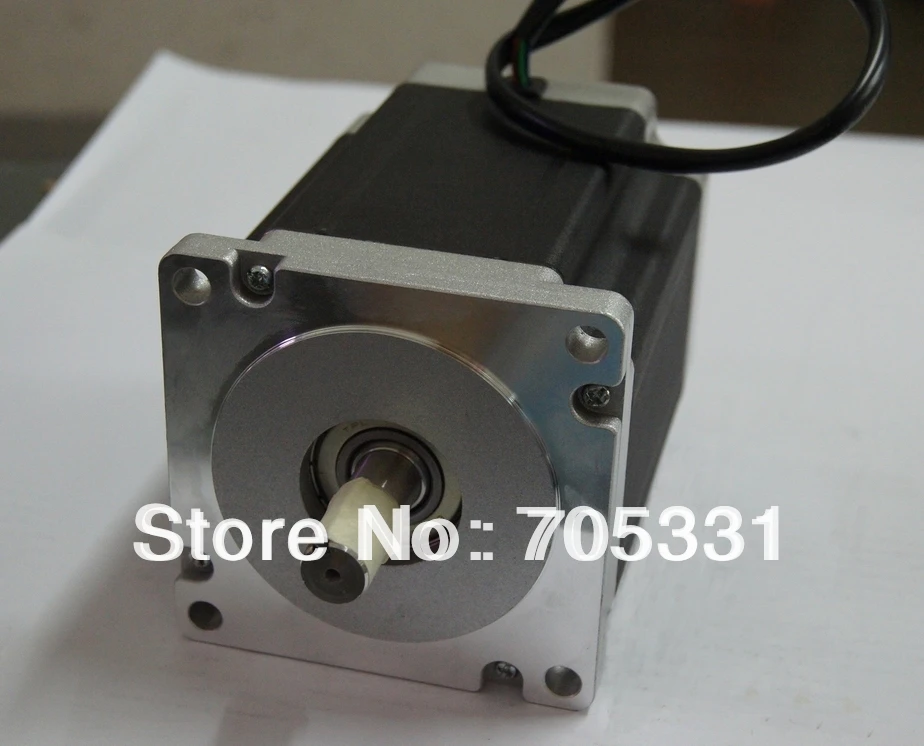

Hurry! Clearance Good Quality! Stepper Motor Nema42 J110HB150-06, 150mm 21N.m(3000oz-in) 6.5A 4wires CE ROHS ISO CNC Laser Mill

Hurry! Clearance Good Quality! Stepper Motor Nema42 J110HB150-06, 150mm 21N.m(3000oz-in) 6.5A 4wires CE ROHS ISO CNC Laser Mill lamachine Rating: 3.6 out of 5

Laser Machine Best Choice Product provide laser cnc,laser engraving machine,laser machine,laser printer,laser wood machine Hurry! Clearance Good Quality! Stepper Motor Nema42 J110HB150-06, 150mm 21N.m(3000oz-in) 6.5A 4wires CE ROHS ISO CNC Laser Mill. Price at this time US $111.66/piece. Check price now to get discount! Dont waste your time. Buy Now only in Jingbo Motor Store Trusted Seller Store!

His service is very good and fast. Buy today, Shop Admin sent today too. If buying in bulk then there is a special price . This Hurry! Clearance Good Quality! Stepper Motor Nema42 J110HB150-06, 150mm 21N.m(3000oz-in) 6.5A 4wires CE ROHS ISO CNC Laser Mill goods is highly recommended .

Good Quality! Stepper Motor Nema42 J110HB150-06, 150mm 21N.m(3000oz-in) 6.5A 4wires CE ROHS ISO CNC Laser Mill

General specifications

Step Angle Accuracy: 5%

Temperature rise: 80°c Max

Ambient temperature: -20°c~+50°c

Insulation resistance: 100MΩ Min 500VDC

Dielectric strength: 500V AC 1minute

Shaft Radial Play: 0.02mm Max(450g-load)

Shaft Axial Play: 0.08mm Max(450g-load)

Specifications:

Model	Step Angle (°)	Length L(mm)	Holding Torque (N.m)	Current (A/Phase)	Resistance (Ω)	Inductance (mH)	Rotor inertia (g.cm2)	Weight (kg)	Shaft diameter (mm)	Axis stretch (mm)	Matched driver
J110HB99-05	1.8	99	11	5.5	0.72	9.8	5500	5.0	16/19	Feather key4x20/6x35	JB860M JB2811M JB2722M
J110HB115-06		115	12	6.0	0.44	4.9	7200	6.0	16/19	Feather key4x20/6x35
J110HB150-06		150	21	6.5	0.8	9.4	10900	8.4	16/19	Feather key4x20/6x35
J110HB201-08		201	28	8.0	0.6	11	16200	11.7	16/19	Feather key4x20/6x35

Only the representation of the products, we can design according to clients’ requirement

Note: If you dont specify, we will ship you the motor with 16mm shaft diameter by default

Dimension: unit=mm

Frequency-torque characteristics

Wiring Diagram

Installation precaution

1. Data of electrical characteristics and technical data are both measured by JB2722M driver, testing voltage AC110V.
2. When motor mounted, be sure its front cover should be installed to the seam allowance position and attention to the fit tolerance and strictly ensure that the concentricity of electrical motor axis with the load.
3. Please do not connect wrong phase when fitting the motor and driver.
