- M542-05

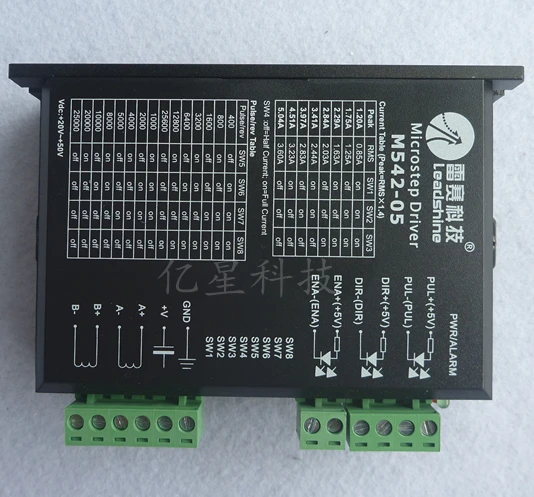

Product Overview
M542 drive motor has a lower heat, noise and higher operational stability, and lower costs, the main driver of 42, 57 type two-phase hybrid stepping motor. Its micro-step breakdown of the number of 15 species, the maximum number of steps for 25000Pulse / rev; its operating peak current range of 1.0A-5.04A, the output current eight-speed, the current resolution of about 0.45A; with automatic semi-flow, overvoltage and overcurrent protection functions. The drive to DC power supply, the proposed operating voltage range of 24VDC-36VDC, the voltage does not exceed 50VDC, not less than 20VDC.
The main application areas
For a variety of small and medium sized automation equipment and instruments, such as: engraving machine, marking machine, cutting machine, laser machining, CNC machine tools, automatic assembly equipment. Users expect low-cost, low-noise, high-speed device applications excellent special effects.
Drive Function Description Drive Function
Instructions
Number of micro-step breakdown of the set
By SW5-SW8 four DIP switches to set the drive micro-step breakdown of the number of its total of 15 stalls micro-step. When the user sets micro-step, stop the drive to run. Specific micro-step breakdown of the number of the setting, the drive surface layout instructions.
Output current setting
By SW1-SW3 three DIP switches to set the driver output current, the output current eight stalls. Specific output current, please drive surface layout instructions.
Automatic semi-flow function
Users can set the drive SW4 automatic semi-flow feature. Quiescent current is set off, said half of the dynamic current, on the static and dynamic current is the same current. General applications SW4 should be set to off, so that the motor and the drive to reduce fever, increased reliability. After the burst of about 0.4 seconds to stop automatically reduced to about half the current (60% of the actual value), heat theoretically reduced to 36%.
Signal Interface
PUL + and PUL- control pulse signal for the positive terminal and a negative terminal; DIR + and DIR- for direction signal positive terminal and a negative terminal; ENA + and ENA- to make the positive terminal and a negative terminal signal.
Motor interface
Positive and negative terminals B + and B- then stepping motor phase winding B; positive and negative terminals A + and A- A stepper motor connected to the phase windings. When the A, B two-phase windings exchange, can reverse the motor direction.
Power Interface
DC supply voltage range is recommended for 20-50VDC, Power greater than 100W.
Indicator
Drive has two red and green lights. Where the green light for the power indicator light, when the drive is powered green light; red fault indicator, when an overvoltage, overcurrent fault, the fault light is on. After the fault is cleared, the red light is off. When a drive fails, only the power on again and re-enabled in order to clear the fault.
Installation Instructions
Dimensions of the drive: 118 × 75.5 × 34mm, installation pitch for 112mmmm. Both horizontal and vertical installation, vertical installation is recommended. When installed, it should be close to the metal cabinet to facilitate cooling.
Parameter setting
M542 drive using eight DIP switch settings subdivision precision, dynamic current and semi-flow / full flow. Detailed description is as follows:Working current setting
Output Peak Current Output reference current
SW1
SW2
SW3
1.20A
0.85A
on
on
on
1.75A
1.25A
off
on
on
2.29A
1.63A
on
off
on
2.84A
2.03A
off
off
on
3.41A
2.44A
on
on
off
3.97A
2.83A
off
on
off
4.51A
3.23A
on
off
off
5.04A
3.6A
off
off
off
Micro-step set
Number of steps / rev SW5
SW6
SW7
SW8
400
off
on
on
on
800
on
off
on
on
1600
off
off
on
on
3200
on
on
off
on
6400
off
on
off
on
12800
on
off
off
on
25600
off
off
off
on
1000
on
on
on
off
2000
off
on
on
off
4000
on
off
on
off
5000
off
off
on
off
8000
on
on
off
off
10000
off
on
off
off
20000
on
off
off
off
25000
off
off
off
off
Mounting dimensions
