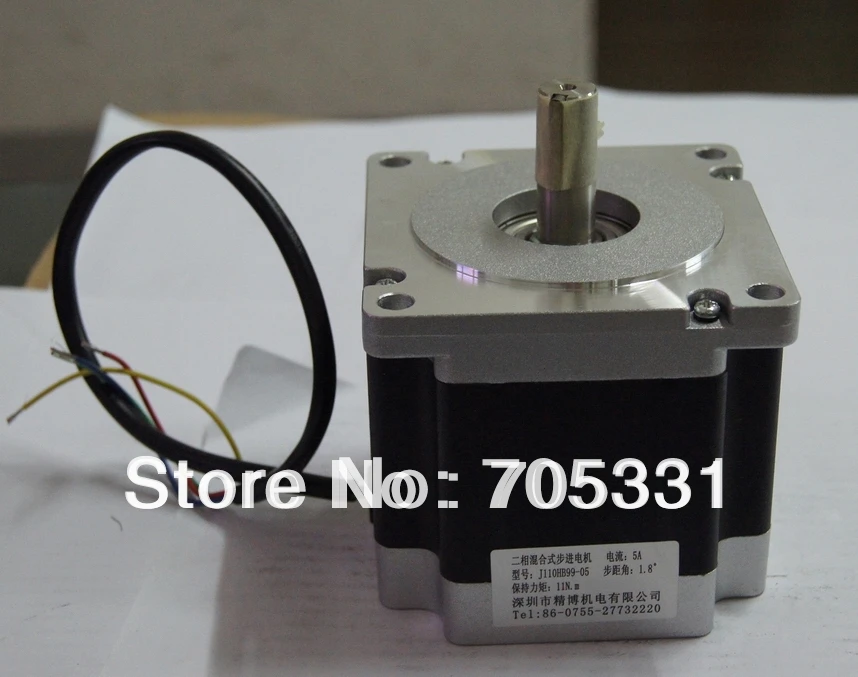

Laser Machine Best Choice Product provide laser cnc,laser engraving machine,laser machine,laser printer,laser wood machine Cool Discount Nema 42 Stepper Motor J110HB99-05 11N.m(1572oz-in) 99mm 5.5A 4wires CE ROHS ISO CNC Router Grind Mill Cut Laser Engraving. Price at this time US $89.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in Jingbo Motor Store Trusted Seller Store!
General specifications
Step Angle Accuracy: 5%
Temperature rise: 80°c Max
Ambient temperature: -20°c~+50°c
Insulation resistance: 100MΩ Min 500VDC
Dielectric strength: 500V AC 1minute
Shaft Radial Play: 0.02mm Max(450g-load)
Shaft Axial Play: 0.08mm Max(450g-load)
Specifications:
Model | Step Angle (°) | Length L(mm) | Holding Torque (N.m) | Current (A/Phase) | Resistance (Ω) | Inductance (mH) | Rotor inertia (g.cm2) | Weight (kg) | Shaft diameter (mm) | Axis stretch (mm) | Matched driver |
J110HB99-05 | 1.8 | 99 | 11 | 5.5 | 0.72 | 9.8 | 5500 | 5.0 | 16/19 | Feather key4x20/6x35 | JB860M JB2811M JB2722M |
J110HB115-06 | 115 | 12 | 6.0 | 0.44 | 4.9 | 7200 | 6.0 | 16/19 | Feather key4x20/6x35 | ||
J110HB150-06 | 150 | 21 | 6.5 | 0.8 | 9.4 | 10900 | 8.4 | 16/19 | Feather key4x20/6x35 | ||
J110HB201-08 | 201 | 28 | 8.0 | 0.6 | 11 | 16200 | 11.7 | 16/19 | Feather key4x20/6x35 |
Only the representation of the products, we can design according to clients’ requirement
Note: If you dont specify, we will ship you the motor with 16mm shaft diameter by default

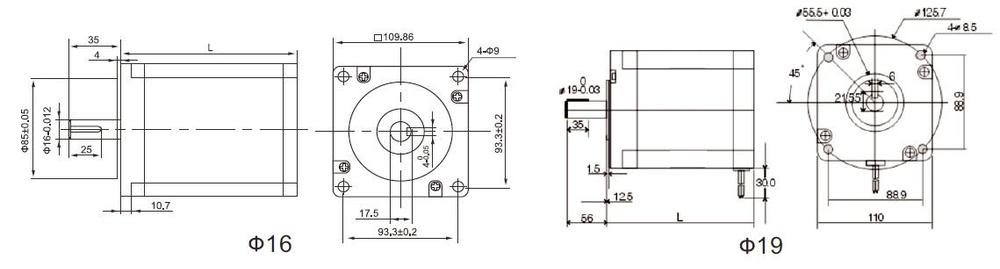

Dimension: unit=mm
Frequency-torque characteristics
Wiring Diagram
Installation precaution
- Data of electrical characteristics and technical data are both measured by JB2722M driver, testing voltage AC110V.
- When motor mounted, be sure its front cover should be installed to the seam allowance position and attention to the fit tolerance and strictly ensure that the concentricity of electrical motor axis with the load.
- Please do not connect wrong phase when fitting the motor and driver.
