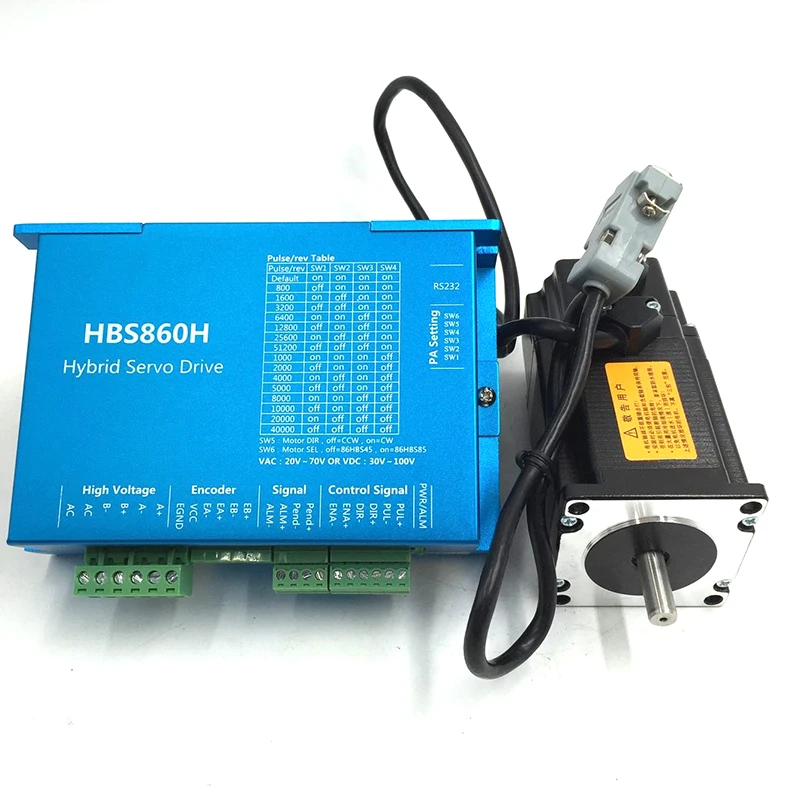

Stepper kits 2.2Nm NEMA23 DC36V DSP Closed Loop Stepper Drive and Motor kit for CNC Engraving Laser Cutters HBS860H+57HBS22
1. Shipping listing
| 1 PCS Drive | HBS860H |
| 1 PCS Motor | 57HBS22 |
| 1 PCS Encoder Cable | 3M |
2. Drive functional characteristics
| Model | HBS860H | |||
| Type | DSP Closed loop stepper drive | |||
| maximum peak current | 8A | |||
| Impulse response frequency | 200KHz | |||
| Micro-stepping driver | 200~51200ppr | |||
| Voltage | 20~80VAC/DC30-110V | |||
| Protective function | Over voltage, over current, tracking error, overproof | |||
| Signal input | Support PUL/DIR and CW/CCW modes (difference) Compatible 5~24V signal (Dont need a resistor) | |||
| Advantage | no step to lose, Low noise, little vibration and high efficiency, low heat | |||
| Continuous overload | Output an alarm signal | |||
| Type of cooling | Air-cooling | |||
| Min | Typical | Max | Unit | |
| Output Current | - | - | 8 | A |
| Input Voltage | 20 | 70 | 75 | VAC |
| 30 | 110V | VDC | ||
| Logic Signal Current | 7 | 10 | 16 | mA |
| Pulse input frequency | - | 200 | - | kHz |
| Isolation Voltage | 500 | Mohm | ||
3. Motor electric parameter
| Step angle/phase | |
| Rated voltage/current | 3.4V/4A |
| resistance | 0.85ohm |
| Inductance | 2.2mH |
| Hold torque | 2.2NM |
| Rated Speed | 1000RPM |
| Encoder | 1000line |
| Class of insulation | B |
| Rotor inertia | 470 g.cm2 |
4. Appications
desktop CNC routers, small CNC mills, laser cutters / engravers, dental mills, electronic assembly & inspection equipments, labeling equipments, pick & place machines, X-Y tables, scientific instruments... Especially for short-distance, short-time, fast start-stop and zero-speed stable stop.
5. Dimension
Advantages
HBS860H uses the latest special motor control chip DSP and vector loop control technology, completely overcome the open-loop stepper motor lose step problem, and significantly improve the high speed performance, reduce the heating of the motor motor and reduce vibration of the motor, enhance the machining speed and accuracy, reduce the energy consumption of the machine. When the motor is continuously overloaded, the driver will output the alarm signal in time, which has the same reliability as the AC servo system. It is convenient to upgrade the traditional step system, and the cost is only 50% of the AC servo system.
The simple servo is compared with the traditional step motor.
1. will not be lost step phenomenon, can ensure the precise positioning of the motor;
2. high speed performance is raised about 30%, and the working speed of equipment is improved.
When the 3. motor is working normally, the heat drop is reduced by about 20%, and the torque of the motor is reduced.
The vibration of the 4. motor is obviously reduced and the operation is more stable.
5. use variable current control technology to save energy consumption.
The simple servo is compared with the traditional AC servo product:
1. parameter is easy to adjust.
2. high speed stop does not shake, and the zero speed customization is stable.
3. position response is very fast, especially suitable for the application of short distance quick start and stop occasions.
4. the cost is reduced by more than 50%.
Product photos
Related hot selling stepper kits
Related planetary gear reducer for NEMA23 57mm stepper motor:
| Model | Ratio | Precision | Application | Link |
| 57PX-6 | 6:1 | High Precision | for NEMA23 Stepper Motor | |
| 57PX-10 | 10:1 | High Precision | for NEMA23 Stepper Motor | |
| 57PX-36 | 36:1 | High Torque | for NEMA23 Stepper Motor |
Related NEMA23 RV30 worm gear reducer for stepper motor:
| Model | Center distance | Ratio | Flange | Application | Link |
| NMRV030-10 | NMRV030 | 10:1 | NEMA23 | for Stepper Motor | |
| NMRV030-15 | NMRV030 | 15:1 | NEMA23 | for Stepper Motor | |
| NMRV030-30 | NMRV030 | 30:1 | NEMA23 | for Stepper Motor |
