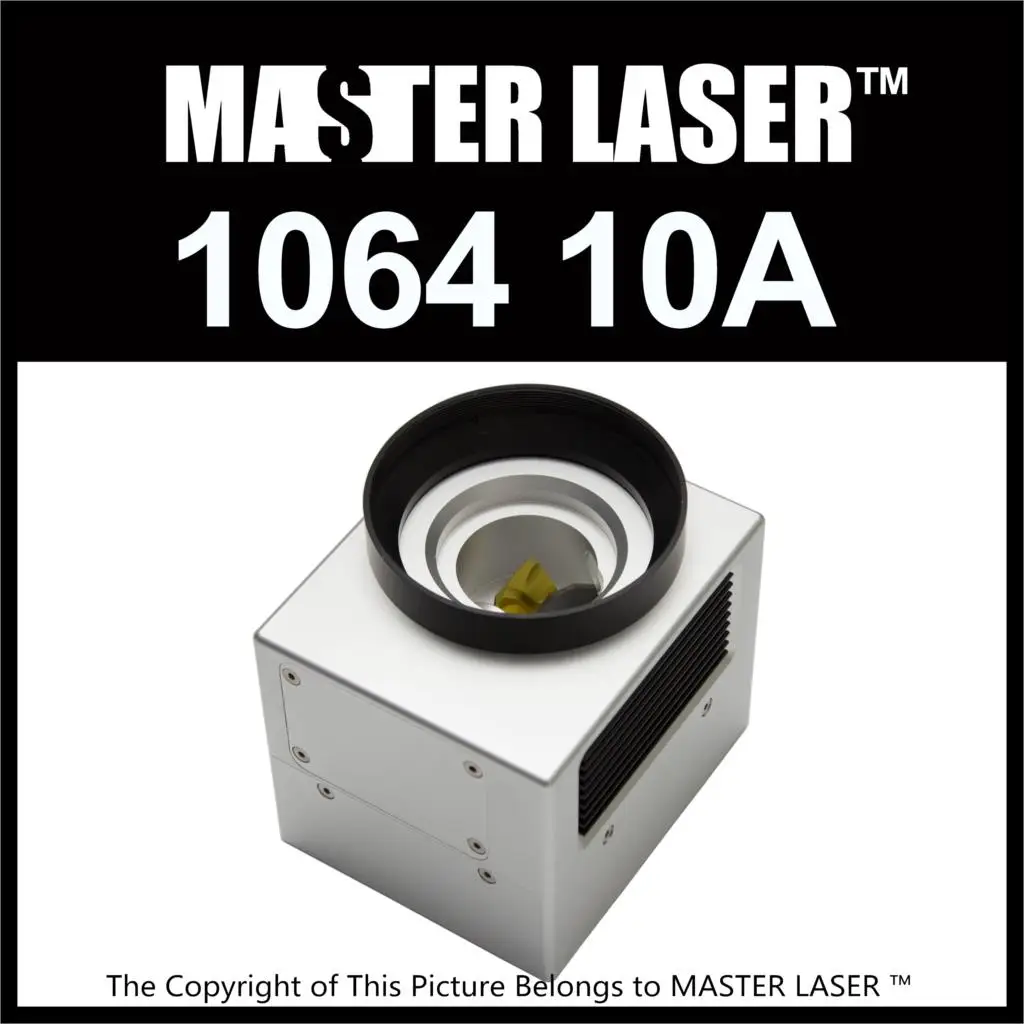

Laser Machine Best Choice Product provide laser cnc,laser engraving machine,laser machine,laser printer,laser wood machine Terrific New 1064 Fiber Laser Engraving Machine Galvo Scanning Scanner. Price at this time US $499.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in MASTER LASER Trusted Seller Store!
| What is this product | Galvanometer is made up of two mirrors equipped with motors to reflect and change the direction of laser beam. Under the control of software, the galvo mirror will move according to the digital signal, changing direction of laser beam and marking the pattern on wood or other workpieces. |
| Theory | |
| Normal Speed: 10 m/s ---- 499 USD High Speed: 15 m/s ---- 799 USD |
System technology parameters High Speed: 15 m/s ---- 799 USD | |
Aperture | 10 mm |
Wavelength | 1064nm |
Typical scan angle | ±0.35 rad |
Nonlinearity | <0.5 mrad |
Tracking error | 0.15ms |
Step Response Time | <0.3 ms |
RepeatabiIity | <20 urad |
Gain drift | <15 ppm/K |
Zero drift | <15 urad/K |
Long‐term drift over 8hours(After 30 min warn‐up) | <0.2 mrad |
Working Speed | |
Marking speed | 8000mm/s |
Positioning speed | 15000mm/s |
Power | |
Power requirements | ±15VDC Max.5A each |
Input signals | |
Digital | Standard XY2-100 |
System technology parameters Normal Speed: 10 m/s ---- 499 USD | |
Aperture | 10 mm |
Wavelength | 1064nm |
Typical scan angle | ±0.35 rad |
Nonlinearity | <2 mrad |
Tracking error | 0.2 ms |
Step Response Time | <0.4 ms |
RepeatabiIity | <30 urad |
Gain drift | <30 ppm/K |
Zero drift | <30 ppm/K |
Long‐term drift over 8hours(After 30 min warn‐up) | <0.5 mrad |
Working Speed | |
Marking speed | 4000mm/s |
Positioning speed | 10000 mm/s |
Power | |
Power requirements | ±15VDC Max.3A each |
Input signals | |
Digital | Standard XY2-100 |
Specification-Size |
Product Picture |
Aluminum Case | |
| Aluminum case Rapid heat extraction Portable Attractive Compact structure |
Closed Shell | |
| Closed shell Closed shell can prevent dust from entering galvanometer interior to avoid circuit static electricity and to prolong galvanometer lifespan. Requirement of heat extraction is high. |
Imported Motor | |
| Imported CTI motor Max. marking speed:10000mm/s Fast speed Quick heat extraction High thermal stability Small thermal drift Accurate repeat positioning |
High Speed Motor | |
| High speed motor Max. marking speed:7000mm/s Fast speed Quick heat extraction Small thermal drift Accurate repeat positioning |
Long lifespan Reflect Mirror | |
Dielectric film High reflectivity Small absorption Small probability of film stripping High temperature resistance Suitable for long time work Long lifespan | |
Customized | |
| The shape of galvanometer can be customized according to your own requirements. |
|
